SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves

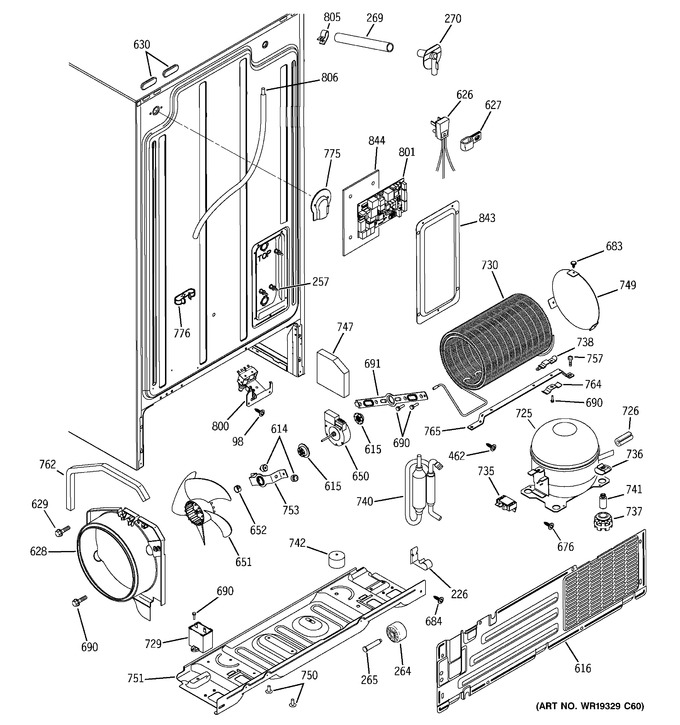

8 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
98	WR1K1		Screw 8-36 T Ihw 3/8 Sn		Appelez-nous	-
226	WR02X10558		Clip Drain Tube		Appelez-nous	-
257	WR02X10159		Fastener Board		Appelez-nous	-
264	WG03L06838		Wheel Mobility Rear   (Replaces: WR02X10695)				$ 19.06
265	WG03A00340		Axle Wheel   (Replaces: WR01X10039)				$ 8.58
269	WR02X10960		Tube Im Fill		Appelez-nous	-
270	WR02X10564		Grommet Water Fill		Appelez-nous	-
462	WZ06X0136		Scr 8-18 Ab Hxw 1/2 S		Appelez-nous	-
614	WR01A00163		Bumper Lid   (Replaces: WR02X10540)			Immediately	$ 6.35
615	WR01A00579		Grommet Evap Fan   (Replaces: WR02X11331)				$ 3.97
616	WR82X10100		Access Cover		Appelez-nous	-
626	WG03F00911		Cord Power Asm   (Replaces: WR23X10300)				$ 85.41
627	WR1X5278		Clamp Cable		Appelez-nous	-
628	WR17X11252		Shroud Condenser		Appelez-nous	-
629	WH02X10126		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
630	WR2X8525		Plug Button Bk		Appelez-nous	-
650	WR60X10080		Motor Dc Cond Fan		Appelez-nous	-
651	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10049)				$ 11.51
652	WR02X10509		Ring Compression		Appelez-nous	-
676	WZ04X0263		Scr 10-16 Ab Hxw 1/2		Appelez-nous	-
683	WR02X10562		Fastener Push		Appelez-nous	-
684	WB01T10047		Scr 8-32 X .625 M Hxw S		Appelez-nous	-
690	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
691	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
725	WG03F00133		Compressor Asm Mei   (Replaces: WR87X10097)			Immediately	$ 1,045.82
726	WR82X10086		Insul Tube Foam		Appelez-nous	-
729	WR01F02043		Capacitor   (Replaces: WR62X79)			Immediately	$ 17.17
730	WR84X10074		Cond Asm Formed		Appelez-nous	-
735	WR08X10068		Overload Ptcr Combo		Appelez-nous	-
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
738	WR2X7064		Clip Cond Loop		Appelez-nous	-
740	WG03A03157		Dryer   (Replaces: WR86X96)			Immediately	$ 153.40
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
742	WR02X10587		Support Condenser		Appelez-nous	-
747	WR82X10073		Insulation Side		Appelez-nous	-
749	WR17X10694		Baffle Cond Air		Appelez-nous	-
750	WR1X1786		Screw 10-32 Tr 1/2		Appelez-nous	-
751	WR17X11427		Baseplate High Side		Appelez-nous	-
753	WR02X10521		Brkt Cond Fan (mtg)		Appelez-nous	-
757	WR01X10252		Scr 10-32 Tt Hxw 5/16 S		Appelez-nous	-
762	WR14X10187		Foam Strip Se Adh		Appelez-nous	-
764	WR2X9000		Clip, Cond Mnt		Appelez-nous	-
765	WR17X10695		Bracket Condenser Bar		Appelez-nous	-
775	WR02X10047		Cover Water Line		Appelez-nous	-
776	WG03A00749		Clamp Tube   (Replaces: WR02X10522)				$ 9.25
800	WR57X10040		Water Valve				$ 71.10
801	WR55X10543		Board Asm Main Control		Appelez-nous	-
805	WR2X3736		Str Relief		Appelez-nous	-
806	WR01F01881		Tube Plastic   (Replaces: WR17X11625)				$ 15.88
843	WR17X12077		Cover Enclosure Asm		Appelez-nous	-
844	WR02X10569		Insulator Main Board		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
