Diagram # Part Number Description Series Availability Ships Price Add to Cart
241 WR50X10027 Sensor Temp Appelez-nous -
403 WR71X2588 Track Cant Shelf Appelez-nous -
407 WG03L04206 Pan Veg   (Replaces: WR32X10133) Special Order $ 196.05

408 WR32X10131 Pan Meat Appelez-nous -
409 WR32X10130 Cover Pan Glass Appelez-nous -
410 WR17X11251 Handle Pan Veg Appelez-nous -
411 WR17X11250 Handle Pan Meat Appelez-nous -
414 WG03L01710 Gasket Pan Cover Frt   (Replaces: WR14X10084) Special Order $ 9.25

415 WR32X10129 Cover Pan Glass Appelez-nous -
417 WR14X10052 Gasket Shield Lower Appelez-nous -
423 WR2X6347 Support Shield Top Appelez-nous -
455 WR02X10622 Cover Sensor Ff Appelez-nous -
468 WR1X2048 Bearing Slide Appelez-nous -
478 WR01F03334 Slide Asm Lh   (Replaces: WR72X239) Special Order $ 111.73

479 WR01F03335 Slide Asm Rh   (Replaces: WR72X240) Special Order $ 87.23

480 WG03F00962 Slide Asm Rh   (Replaces: WR72X242) Special Order $ 81.27

481 WG03F00961 Slide Asm Lh   (Replaces: WR72X241) Special Order $ 106.28

500 WR71X10238 Shelf Cant Stat Appelez-nous -
501 WR32X10142 Shelf Encap Stat Appelez-nous -
551 WZ04X0244 Scr 8-18 Ab Rndw 5/8 Ss Appelez-nous -
554 WR1X2141 Scr 10-24 Tr Hxw I S Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

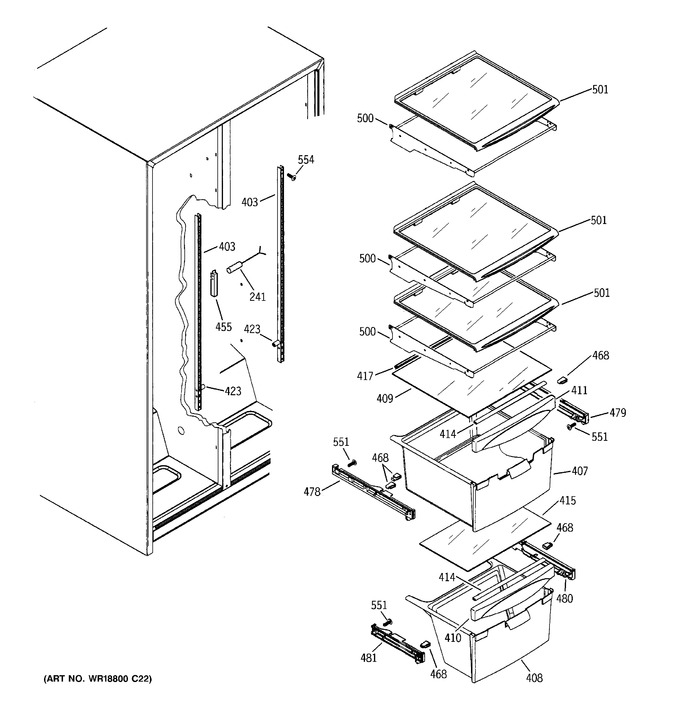

Diagram for GSL22JFPJBS
