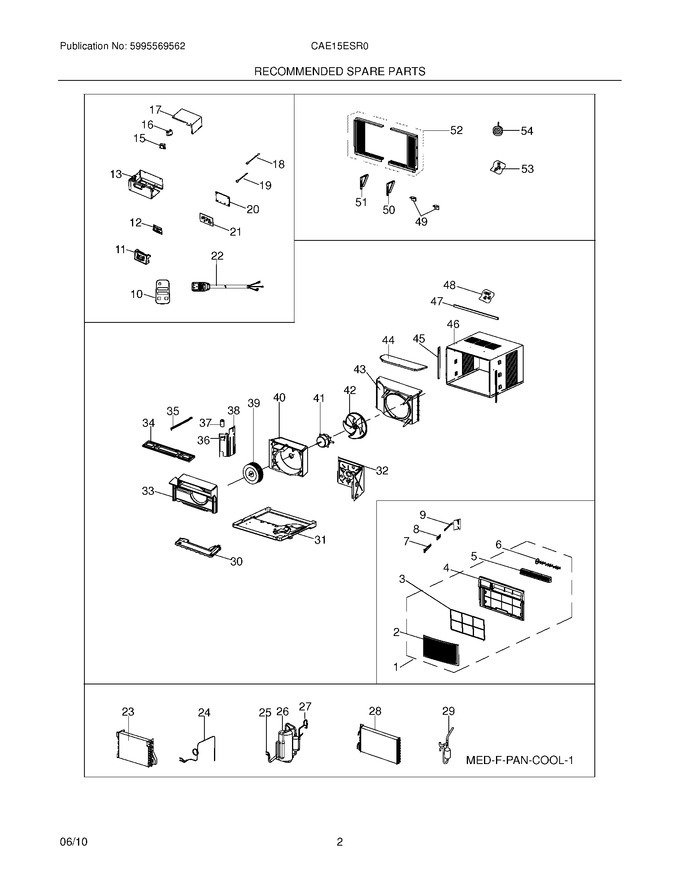

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304472597 | Front Assembly,complete Panel ,includes |
|
- | |||||
| 2 | 5304472523 | Panel,front Grille ,tilt-out |
|
- | |||||
| 3 | 5304472524 | Filter,air |
|
- | |||||
| 4 | 5304472598 | Panel,frame ,front |
|
- | |||||
| 5 | 5304472526 | Louver,horizontal |
|
- | |||||
| 6 | 5304472527 | Louver,vertical |
|
- | |||||
| 7 | 5304472533 | Handle,vent Control |
|
- | |||||
| 11 | 5304472599 | Control Panel,with Overlay |
|
- | |||||
| 13 | 5304476313 | Control Box |
|
- | |||||
| 17 | 5304476314 | Cover,control Box |
|
- | |||||
| 20 | 5304476251 | Holder,mounting Plate ,control |
|
- | |||||
| 30 | 5304472530 | Tray,drip Pan |
|
- | |||||
| 31 | 5304476899 | Base,unit Chassis |
|
- | |||||
| 32 | 5304472538 | Bulkhead,partition ,front Right |
|
- | |||||
| 33 | 5304472528 | Scroll,blower Housing ,front |
|
- | |||||
| 34 | 5304476326 | Cover,blower Scroll ,front |
|
- | |||||
| 35 | 5304476327 | Bracket,connecting |
|
- | |||||
| 36 | 5304476370 | Strap,capacitor Clamp |
|
- | |||||
| 38 | 5304476328 | Bulkhead,partition ,front/left |
|
- | |||||
| 40 | 5304472537 | Scroll,blower Housing ,rear |
|
- | |||||
| 43 | 5304476329 | Shroud,condenser Fan |
|
- | |||||
| 44 | 5304476330 | Cover,condenser Fan ,rear |
|
- | |||||
| 45 | 5304472543 | Retainer,shutter Mount ,cabinet Side |
|
- | |||||
| 46 | 5304476900 | Cabinet,wrapper/sleeve |
|
- | |||||
| 47 | 5304472545 | Rail,top |
|
- | |||||
| 48 | 5304472546 | Screw Kit,top Rail Mount |
|
- | |||||
| 49 | 5304472360 | Bracket,sill Angle |
|
- | |||||
| 50 | 5304472359 | Bracket,mounting ,right ,window |
|
- | |||||
| 51 | 5304472358 | Bracket,mounting ,left ,window |
|
- | |||||
| 52 | 5304472542 | Window Filler Kit,slider Panels |
|
- | |||||
| 53 | 5304472547 | Hardware,mounting ,screws/locks |
|
- | |||||
| 54 | 5304472548 | Seal Kit,foam ,top,bottom,sash |
|
- | |||||
| F10 | 5304472230 | Remote Control,transmitter ,with Overlay |
|
- | |||||
| F12 | 5304476940 | Pc Board,input/display |
|
- | |||||
| F15 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| F16 | 5304471221 | Capacitor,fan Motor |
|
- | |||||
| F18 | 5304471276 | Thermistor,temp Sensor ,indoor |
|
$ 33.88 | |||||
| F19 | 5304512375 | Thermistor,evaporator ,sensor (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F21 | 5304476941 | Pc Board,control/power ,main |
|
- | |||||
| F22 | 5304476768 | Power Cord,lcdi ,test/reset |
|
$ 177.82 | |||||
| F23 | 5304476362 | Evaporator,with Cap Tube |
|
- | |||||
| F24 | 5304476363 | Tube,capillary |
|
- | |||||
| F25 | 5304476364 | Tube,suction |
|
- | |||||
| F26 | 5304475730 | Compressor |
|
$ 891.24 | |||||
| F27 | 5304476365 | Tube,discharge |
|
- | |||||
| F28 | 5304476366 | Condenser |
|
- | |||||
| F29 | 5304476367 | Drier-filter |
|
$ 45.55 | |||||
| F37 | 5304474928 | ยท Capacitor,compressor |
|
- | |||||
| F39 | 5304472532 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F41 | 5304472539 | Motor,fan |
|
- | |||||
| F42 | 5304538708 | Fan Blade,axial Flow (Replaces: 5304472356) |
|
$ 50.16 | |||||
| F8 | 5304472534 | Link,lever/vent Door ,detent |
|
- | |||||
| F9 | 5304472535 | Door,vent Control ,with Lever |
|
- |
