SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

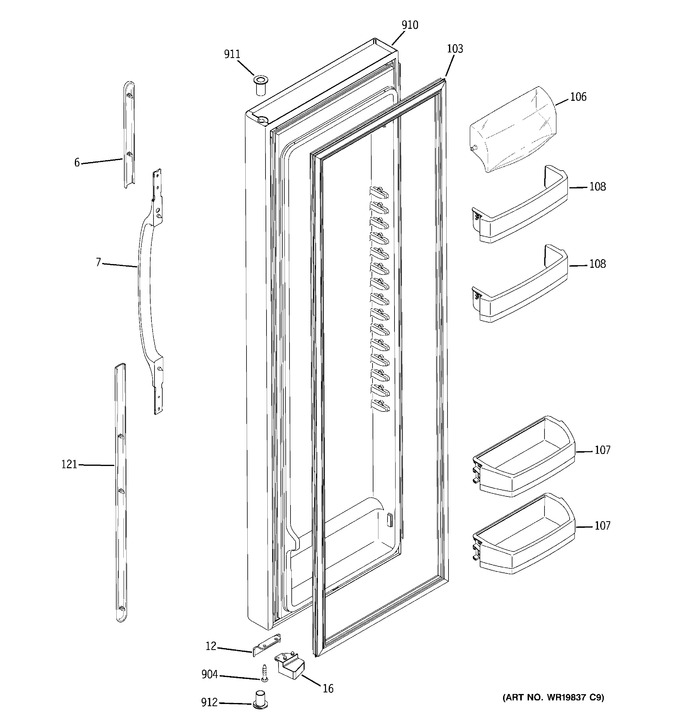

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10164		Tail Handle Sxs Bk		Appelez-nous	-
7	WR12X10434		Handle Sxs Bk		Appelez-nous	-
12	WR01A00225		Stop Door Bk   (Replaces: WR02X10814)				$ 12.40
16	WR01F01557		Cam Closure Ff Bk   (Replaces: WR02X10779)				$ 36.53
103	WR24X10157		Gasket Door Ff Bk		Appelez-nous	-
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 22.93
107	WR01L01252		Door Bin Ff Adj   (Replaces: WR71X10642)				$ 69.21
108	WR01L00026		Shelf Module Fixed Ff   (Replaces: WR71X10641)				$ 66.00
121	WR12X10218		Tail Handle Sxs Bk		Appelez-nous	-
904	WR01X10316		Screw Door Stop		Appelez-nous	-
904	WR01X10375		Screw Door Stop T20		Appelez-nous	-
910	WR78X11365		Door Foam Asm Ff Ss		Appelez-nous	-
911	WR01X10233		Thimble Door Top Bk		Appelez-nous	-
912	WR01X10232		Thimble Door Btm Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
