SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board

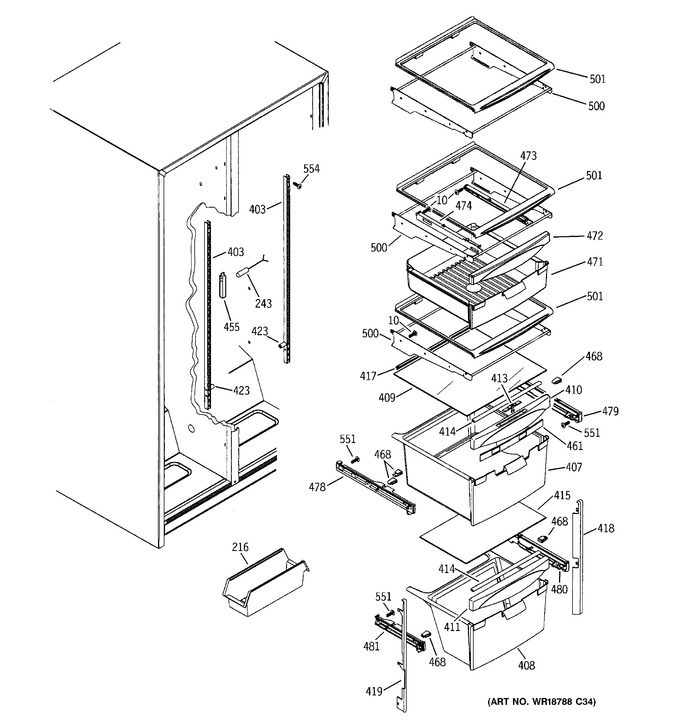

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Scr 8-18 Ba Por 5/8 Ss		Appelez-nous	-
216	WR32X1575		Bucket Utility Clr		Appelez-nous	-
243	WR55X10380		Sensor Temperature		Appelez-nous	-
403	WR71X2588		Track Cant Shelf		Appelez-nous	-
407	WG03L04206		Pan Veg   (Replaces: WR32X10133)				$ 196.05
408	WR32X10131		Pan Meat		Appelez-nous	-
409	WR32X10130		Cover Pan Glass		Appelez-nous	-
410	WR17X11139		Handle Veg Pan		Appelez-nous	-
411	WR17X11250		Handle Pan Meat		Appelez-nous	-
413	WR02X11174		Button Slide		Appelez-nous	-
414	WG03L01710		Gasket Pan Cover Frt   (Replaces: WR14X10084)				$ 9.25
415	WR32X10129		Cover Pan Glass		Appelez-nous	-
417	WR14X10052		Gasket Shield Lower		Appelez-nous	-
418	WR17X10730		Trim Pan Rh		Appelez-nous	-
419	WR17X10729		Trim Pan Lh		Appelez-nous	-
423	WR2X6347		Support Shield Top		Appelez-nous	-
455	WR02X10622		Cover Sensor Ff		Appelez-nous	-
461	WR72X10083		Slide Pan		Appelez-nous	-
468	WR1X2048		Bearing Slide		Appelez-nous	-
471	WR32X10132		Pan Snack Upper		Appelez-nous	-
472	WR17X10827		Handle Pan Snack		Appelez-nous	-
473	WR72X10058		Slide Pan Rh		Appelez-nous	-
474	WR72X10059		Slide Pan Lh		Appelez-nous	-
478	WR01F03334		Slide Asm Lh   (Replaces: WR72X239)				$ 111.73
479	WR01F03335		Slide Asm Rh   (Replaces: WR72X240)				$ 87.23
480	WG03F00962		Slide Asm Rh   (Replaces: WR72X242)				$ 81.27
481	WG03F00961		Slide Asm Lh   (Replaces: WR72X241)				$ 106.28
500	WR71X10492		Shelf Cant Spillprf		Appelez-nous	-
501	WR32X10134		Shelf Encap Slideout		Appelez-nous	-
551	WZ04X0244		Scr 8-18 Ab Rndw 5/8 Ss		Appelez-nous	-
554	WR1X2141		Scr 10-24 Tr Hxw I S		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
