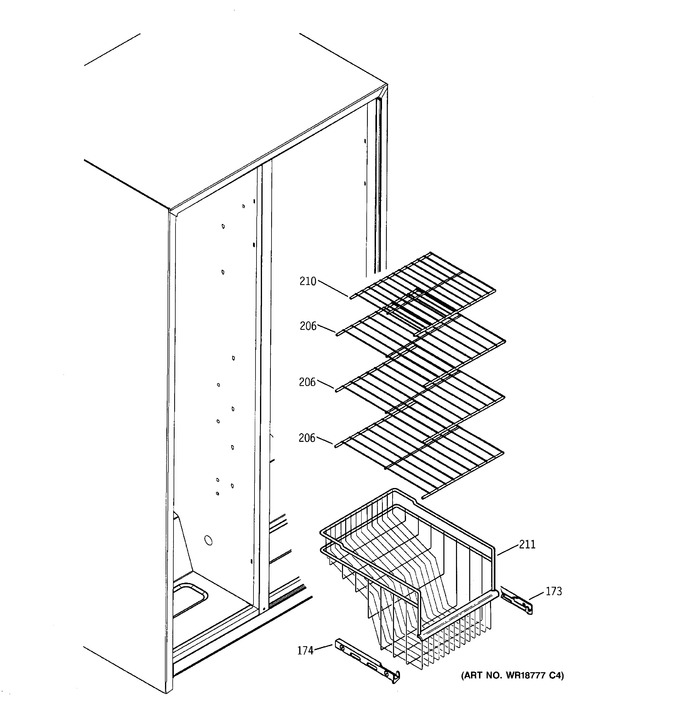

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
173	WR72X10095		Support Slide Basket Rh		Appelez-nous	-
174	WR72X10094		Support Slide Basket Lh		Appelez-nous	-
206	WR01F03328		Shelf Fz   (Replaces: WR71X1888)				$ 72.77
210	WR71X10234		Shelf Fz 3/4		Appelez-nous	-
211	WR21X10020		Bin Wire Slideout Fz		Appelez-nous	-
