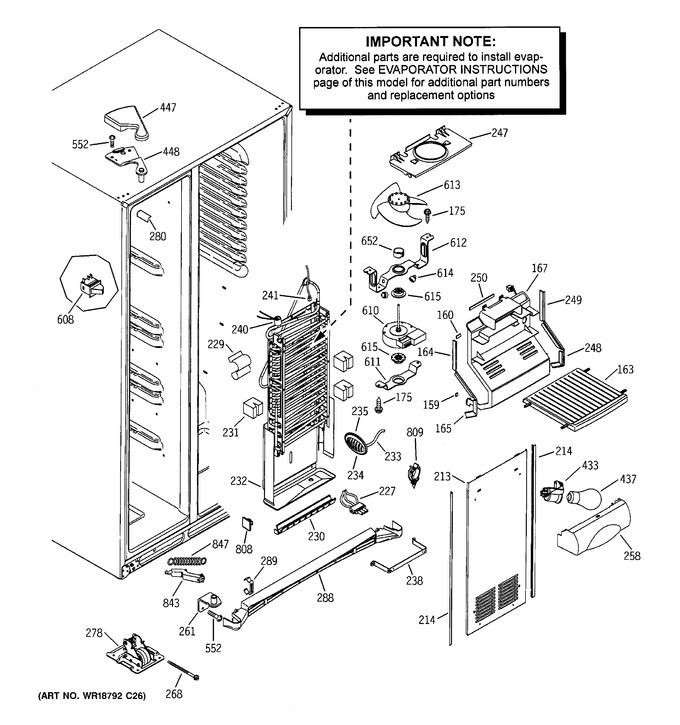

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 159 | WR14X10067 | Foam Strip Se Adh |
|
- | |||||
| 160 | WR14X10068 | Foam Strip Se Adh |
|
- | |||||
| 163 | WR71X10397 | Shelf Fz Upper |
|
- | |||||
| 164 | WR14X10074 | Gasket Plenum |
|
- | |||||
| 165 | WR14X10065 | Gasket Plenum |
|
- | |||||
| 167 | WR17X11124 | Plenum Fan Evaporator |
|
- | |||||
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 213 | WR17X10908 | Cover Evaporator Front |
|
- | |||||
| 214 | WR14X10072 | Gasket Evaporator Cover |
|
- | |||||
| 227 | WR23X10142 | Harness Def Heater |
|
- | |||||
| 229 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
$ 3.75 | |||||
| 230 | WG03F00771 | Heater & Bracket Asm (Replaces: WR51X10055) |
|
Immediately | $ 120.17 | ||||
| 231 | WR02X10669 | Block Evap Seal |
|
- | |||||
| 232 | WR17X10811 | Shield Trough Asm |
|
- | |||||
| 233 | WR55X10026 | Sensor Temp Fz |
|
- | |||||
| 234 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.57 | |||||
| 235 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 14.29 | ||||
| 238 | WR02X10667 | Bracket Evap Cover |
|
- | |||||
| 240 | WG03F00616 | Defrost Thermostat (Replaces: WR50X10028) |
|
Immediately | $ 65.25 | ||||
| 241 | WR01F01730 | Sensor Temp Ff (Replaces: WR55X10025) |
|
Immediately | $ 14.66 | ||||
| 247 | WR17X10812 | Orifice Fan Asm |
|
- | |||||
| 248 | WR14X10066 | Gasket Plenum |
|
- | |||||
| 249 | WR14X10073 | Gasket Plenum |
|
- | |||||
| 250 | WR14X10069 | Foam Strip Se Adh |
|
- | |||||
| 258 | WR17X10840 | Shield Light Fz |
|
- | |||||
| 261 | WR13X10160 | Hinge Btm & Pin Asm Bk |
|
- | |||||
| 268 | WR01A01054 | Screw Mobility 3.5 (Replaces: WR01X10210) |
|
$ 5.18 | |||||
| 278 | WR02X10636 | Mobility Front Asm |
|
- | |||||
| 280 | WR01L01085 | Cap Corner Oc Bk (Replaces: WR02X10781) |
|
$ 4.20 | |||||
| 288 | WR74X10069 | Grill Base Asm Bk |
|
- | |||||
| 289 | WR2X7646 | Clip Base Grille |
|
- | |||||
| 433 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 7.51 | |||||
| 437 | 60A | Lamp 60 W |
|
- | |||||
| 447 | WR02X10783 | Cover Hinge Bk |
|
- | |||||
| 448 | WR13X10216 | Hinge Top & Pin Asm Fz |
|
$ 14.40 | |||||
| 552 | WR1X2022 | Screw |
|
- | |||||
| 608 | WG03F05844 | Switch Light (Replaces: WR23X10179) |
|
Immediately | $ 58.69 | ||||
| 610 | WR01F01622 | Motor Dc Evap Fan (Replaces: WR60X10043) |
|
Immediately | $ 62.96 | ||||
| 611 | WR02X10764 | Bracket Evap Fan Btm |
|
- | |||||
| 612 | WR02X10653 | Bracket Orifice Fan |
|
- | |||||
| 613 | WR60X10075 | Blade Evap Fan Asm |
|
- | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 5.72 | ||||
| 615 | WR02X10519 | Grommet Evap Fan |
|
- | |||||
| 652 | WR02X10509 | Ring Compression Fan |
|
- | |||||
| 808 | WR2X4039 | Adhesive Clip |
|
- | |||||
| 809 | WR1X1936 | Fastener Water Tube |
|
$ 7.35 | |||||
| 843 | WR01A00450 | Lever Asm Fz Side Bk (Replaces: WR11X10010) |
|
$ 8.22 | |||||
| 847 | WG03F00903 | Spring Closure (Replaces: WR1X2027) |
|
$ 68.16 |
