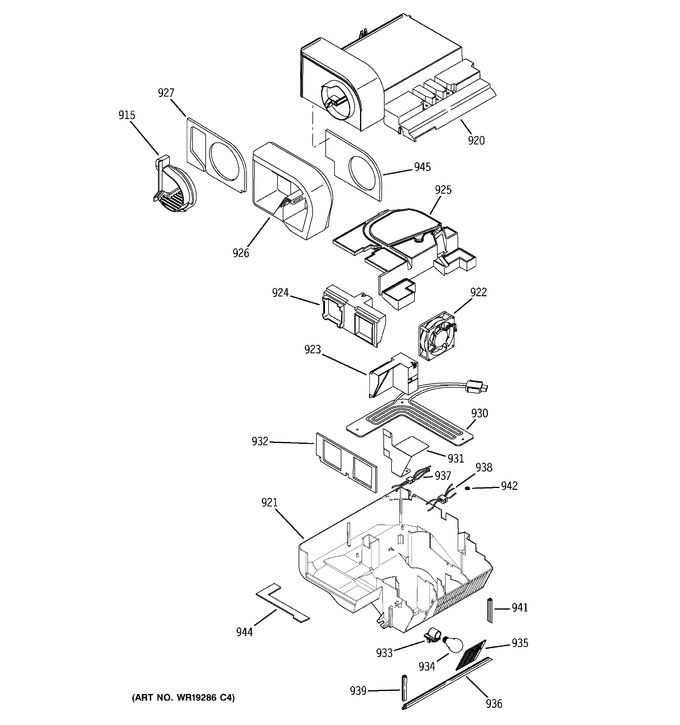

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
915	WR02X10808		Grill Mullion		Appelez-nous	-
920	WR31X10008		Cover Upper		Appelez-nous	-
921	WR31X10043		Cover Lower		Appelez-nous	-
922	WR60X10064		Fan Chill		Appelez-nous	-
923	WR01L04899		Damper Asm Desupply   (Replaces: WR60X10063)				$ 151.81
924	WR01L04900		Damper Asm Supply   (Replaces: WR60X10062)				$ 140.69
925	WR31X10007		Plenum Top		Appelez-nous	-
926	WR31X10009		Duct Cavity Chill		Appelez-nous	-
927	WR14X10095		Gasket Mullion Duct		Appelez-nous	-
930	WG03F05149		Heater Thaw   (Replaces: WR51X10081)				$ 40.23
931	WR02X10809		Reflector		Appelez-nous	-
932	WR14X10096		Gasket Damper Chill		Appelez-nous	-
933	WR31X10012		Light Socket Chill		Appelez-nous	-
934	WR01F00814		Lamp 40w Chill   (Replaces: WR02X10812)				$ 14.29
935	WR31X10010		Grill Bulb Chill		Appelez-nous	-
936	WR14X10092		Seal Ahu Chill		Appelez-nous	-
937	WR23X10203		Harness Chill Ac		Appelez-nous	-
938	WR23X10485		Harness Chill Dc		Appelez-nous	-
939	WR14X10090		Seal Ahu Chill		Appelez-nous	-
941	WR14X10091		Seal Ahu Chill		Appelez-nous	-
942	WR01X10239		Washer Retainer Chill		Appelez-nous	-
944	WR14X10093		Gasket Lc		Appelez-nous	-
945	WR14X10094		Gasket Uc		Appelez-nous	-
