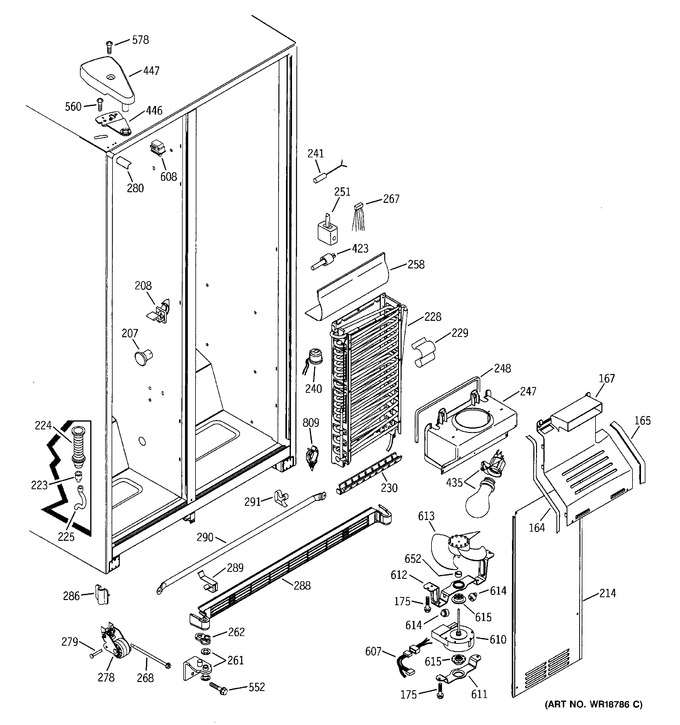

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 164 | WR14X10049 | Gasket Duct Fz |
|
- | |||||
| 165 | WR14X10048 | Gasket Duct Fz |
|
- | |||||
| 167 | WR17X10705 | Duct Air Fz |
|
- | |||||
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 175 | WR1X2023 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 207 | WR2X4676 | Grommet Shelf |
|
- | |||||
| 208 | WG03F00998 | Support Shelf (Replaces: WR2X4674) |
|
$ 4.20 | |||||
| 214 | WR14X10045 | Gasket Cover Evap |
|
- | |||||
| 214 | WR01X10064 | Clip Evap Cover |
|
- | |||||
| 214 | WR17X10701 | Cover Evap |
|
- | |||||
| 223 | WR02X10698 | Tube Drain Coupling |
|
- | |||||
| 224 | WR02X10563 | Grommet Drain Tube |
|
- | |||||
| 225 | WR1X5042 | Clamp Hose |
|
- | |||||
| 225 | WR02X10699 | Drain Tube Asm |
|
- | |||||
| 228 | WG03F06874 | Low Side Asm (Replaces: WR85X10022) |
|
$ 805.30 | |||||
| 229 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
$ 4.17 | |||||
| 230 | WR51X10030 | Heater & Bracket Asm |
|
- | |||||
| 240 | WR50X10015 | Thermostat Defrost |
|
- | |||||
| 241 | WR50X10027 | Sensor Temp |
|
- | |||||
| 247 | WR17X10721 | Orifice Evap Fan |
|
- | |||||
| 248 | WR14X10050 | Gasket Foam |
|
- | |||||
| 251 | WR2X2880 | Support Twist |
|
- | |||||
| 251 | WR02X10632 | Twist Support |
|
- | |||||
| 258 | WR17X10724 | Shield Light Fz |
|
$ 10.90 | |||||
| 261 | WR01X10202 | Thrust Washer |
|
- | |||||
| 261 | WR13X10120 | Hinge Btm Pin & Cam Asm |
|
- | |||||
| 262 | WR02X10568 | Hinge Cam Riser |
|
- | |||||
| 267 | WR23X10164 | Harness Fz Lt Htr |
|
- | |||||
| 268 | WR01X10199 | Screw Mobility |
|
- | |||||
| 278 | WR02X10572 | Mobility Front Asm |
|
- | |||||
| 279 | WR02X10574 | Pin Pivot Asm |
|
- | |||||
| 280 | WR02X10610 | Cap Corner Oc Bk |
|
- | |||||
| 286 | WR17X10728 | Thermistor Cover Fz |
|
- | |||||
| 288 | WR74X10056 | Grille Base Asm Bk |
|
- | |||||
| 289 | WR02X10560 | Clip Grille |
|
- | |||||
| 290 | WR17X10692 | Bar Curb Handling |
|
- | |||||
| 291 | WR02X10589 | Support Curb Bar |
|
- | |||||
| 423 | WR2X6347 | Support Shield Top |
|
- | |||||
| 435 | WG03F01610 | Socket & Terminal (Replaces: WR02X10591) |
|
$ 12.71 | |||||
| 435 | 60A | Lamp 60w Appl |
|
- | |||||
| 435 | STD372402 | Lamp 40w 120v |
|
- | |||||
| 446 | WR13X10121 | Hinge Top Asm Fz |
|
- | |||||
| 447 | WR02X10609 | Cover Hinge Bk |
|
- | |||||
| 552 | WR01X10034 | Scr 12-24 Tt Ih .975 S |
|
- | |||||
| 560 | WR01X10195 | Scr 12-24 Ca Hx 7/8 S |
|
- | |||||
| 578 | WZ02X0464 | Screw 8-32 X 3/8 |
|
- | |||||
| 578 | WZ02X0503 | Scr 8-32 Ma Pa 3/8 S |
|
- | |||||
| 607 | WR23X10154 | Harness Fan Evap |
|
- | |||||
| 608 | WG03F05844 | Switch Light (Replaces: WR23X10161) |
|
Immediately | $ 65.21 | ||||
| 610 | WR01F01622 | Motor Dc Evap Fan (Replaces: WR60X10043) |
|
Immediately | $ 69.95 | ||||
| 611 | WR02X10548 | Bracket Evap Fan Btm |
|
- | |||||
| 612 | WR02X10547 | Bracket Evap Fan |
|
- | |||||
| 613 | WR60X10055 | Blade Evap Fan |
|
- | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 615 | WR02X10519 | Grommet Evap Fan |
|
- | |||||
| 652 | WR02X10509 | Ring Compression |
|
- | |||||
| 809 | WR1X1936 | Fastener Water Tube |
|
$ 7.35 |
