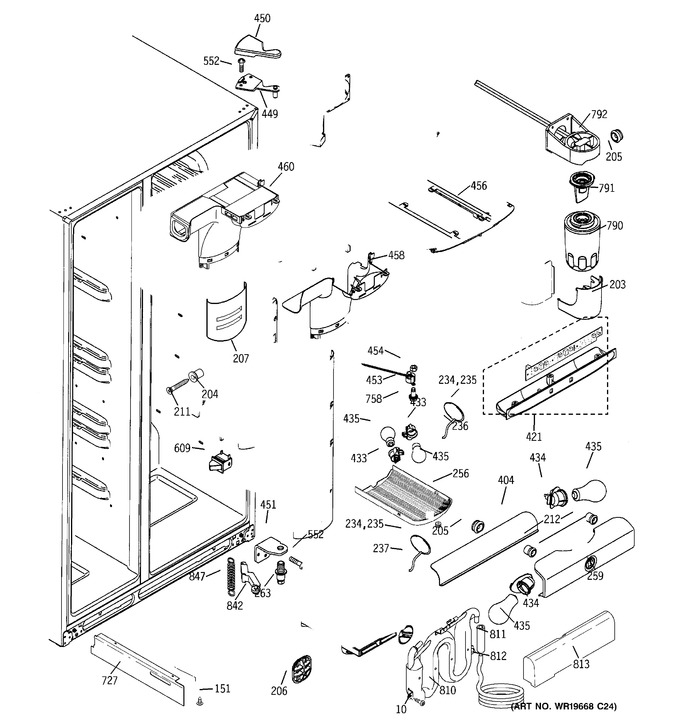

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | WR01X10065 | Scr 8-18 Ba Por 5/8 Ss |
|
- | |||||
| 151 | WR1X1554 | Scr 8-18 Ab Ihxw 1/2 S |
|
- | |||||
| 203 | WR17X10800 | Cover Water Filter |
|
- | |||||
| 204 | WR02X10676 | Frame Support Pins |
|
- | |||||
| 204 | WR02X11989 | Frame Support Pins |
|
- | |||||
| 204 | WR01A00969 | Support Shelf (Replaces: WR02X12188) |
|
$ 3.97 | |||||
| 205 | WR01F00849 | Grommet (Replaces: WR02X10678) |
|
Immediately | $ 3.97 | ||||
| 206 | WR02X10671 | Grille Air Return |
|
- | |||||
| 207 | WR17X10909 | Cover Inlet Discharge |
|
- | |||||
| 211 | WR01X10568 | Scr8-18 Ab Ufl 1 1/2 Ss |
|
- | |||||
| 212 | WR02X10689 | Grommet Base Grille |
|
- | |||||
| 234 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 235 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 15.88 | ||||
| 236 | WR55X10027 | Sensor Temp Ff |
|
- | |||||
| 237 | WR55X10028 | Sensor Temp Ff |
|
- | |||||
| 256 | WR17X10839 | Shield Light Ff |
|
- | |||||
| 259 | WR17X10911 | Light Shield |
|
- | |||||
| 263 | WR02X10648 | Pin Hinge Btm Adj Hollow |
|
- | |||||
| 404 | WR01F00643 | Diverter Ff Airflow (Replaces: WR17X11609) |
|
$ 12.71 | |||||
| 421 | WR55X10299 | Interface Customer Asm |
|
- | |||||
| 433 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 8.34 | |||||
| 434 | WR02X10645 | Socket Lamp |
|
- | |||||
| 435 | 40A15 | Lamp 40 W |
|
Immediately | $ 1.98 | ||||
| 449 | WR13X10217 | Hinge Top & Pin Asm Ff |
|
- | |||||
| 450 | WR02X10788 | Cover Hinge Bq |
|
- | |||||
| 451 | WR13X10161 | Hinge Btm Bq |
|
- | |||||
| 453 | WR23X10209 | Harness/tstat Ff Lt |
|
- | |||||
| 454 | WR01X10212 | Nut 8-32 |
|
- | |||||
| 456 | WR71X10290 | Bezel Light Ff |
|
- | |||||
| 458 | WR17X10912 | Cover Ff Inlet |
|
- | |||||
| 460 | WR01A00003 | Cover Asm Ff Inlet (Replaces: WR49X10091) |
|
Immediately | $ 190.78 | ||||
| 552 | WR1X2022 | Screw |
|
- | |||||
| 609 | WG03A03078 | Switch Light (Replaces: WR23X10175) |
|
Immediately | $ 12.23 | ||||
| 727 | WR17X11500 | Separator Air Hiside |
|
- | |||||
| 758 | WD2X323 | Scr 8-32 X 3/8 Sph |
|
- | |||||
| 790 | PMMWF | Filter Canister (Replaces: MWF) |
|
Immediately | $ 81.88 | ||||
| 791 | WG03L10111 | Cap Filter Bypass (Replaces: WR02X11705) |
|
Immediately | $ 19.97 | ||||
| 792 | WR17X11028 | Filter Asm And Tube |
|
- | |||||
| 792 | WR01F00791 | Filter Asm And Tube (Replaces: WR17X11920) |
|
Immediately | $ 23.80 | ||||
| 810 | WR01F01814 | Water Tank Disp Asm (Replaces: WR17X11440) |
|
Immediately | $ 25.22 | ||||
| 811 | WR02X11288 | Insul Tube Foam |
|
- | |||||
| 812 | WR17X11439 | Tube Plastic |
|
- | |||||
| 813 | WR01F01096 | Insulation Tank Foam (Replaces: WR17X11620) |
|
$ 15.49 | |||||
| 842 | WR11X10011 | Lever Asm Ff Side Bq |
|
- | |||||
| 847 | WG03F00903 | Spring Closure (Replaces: WR1X2027) |
|
$ 68.16 |
