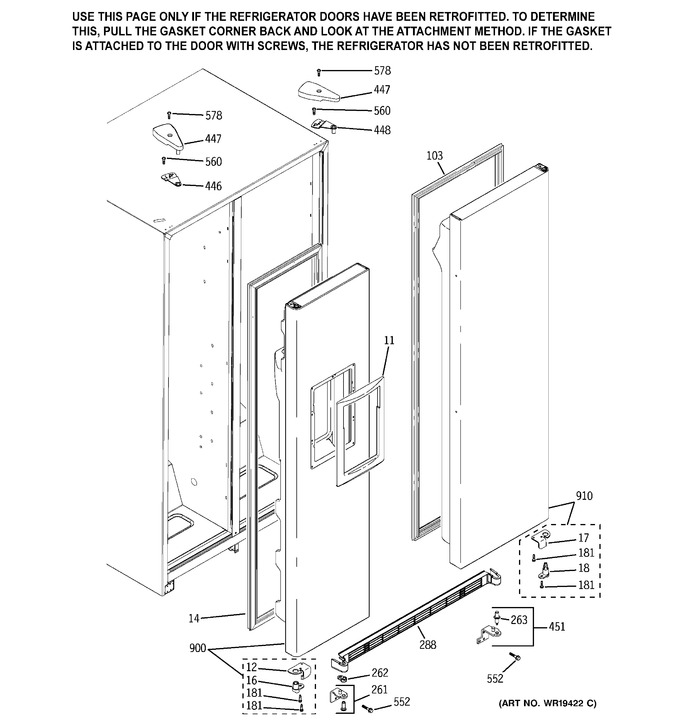

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WR38X10202		Trim Recess Disp Bk		Appelez-nous	-
12	WR02X10608		Plate Door Stop Fz Bk		Appelez-nous	-
14	WR24X10056		Gasket Door Fz Bk		Appelez-nous	-
16	WR02X10566		Hinge Cam & Thimble Fz		Appelez-nous	-
17	WR02X10607		Plate Door Stop Ff Bk		Appelez-nous	-
18	WR02X10567		Hinge Cam & Thimble Ff		Appelez-nous	-
103	WR24X10055		Gasket Door Ff Bk		Appelez-nous	-
181	WR01X10215		Scr 10-32 Tt Hxw 3/4 S		Appelez-nous	-
261	WR13X10120		Hinge Btm Pin & Cam Asm		Appelez-nous	-
261	WR01X10202		Thrust Washer		Appelez-nous	-
262	WR02X10568		Hinge Cam Riser		Appelez-nous	-
263	WR02X10592		Pin Hinge Btm Adj		Appelez-nous	-
288	WR74X10056		Grille Base Asm Bk		Appelez-nous	-
446	WR13X10121		Hinge Top Asm Fz		Appelez-nous	-
447	WR02X10609		Cover Hinge Bk		Appelez-nous	-
448	WR13X10122		Hinge Top Asm Ff		Appelez-nous	-
451	WR13X10119		Hinge Btm & Pin Asm		Appelez-nous	-
552	WR01X10034		Scr 12-24 Tt Ih .975 S		Appelez-nous	-
560	WR01X10195		Scr 12-24 Ca Hx 7/8 S		Appelez-nous	-
578	WZ02X0464		Screw 8-32 X 3/8		Appelez-nous	-
578	WZ02X0503		Scr 8-32 Ma Pa 3/8 S		Appelez-nous	-
900	WR78X10342		Door Foam Asm Fz Bk		Appelez-nous	-
910	WR78X10341		Door Foam Asm Ff Bk		Appelez-nous	-
