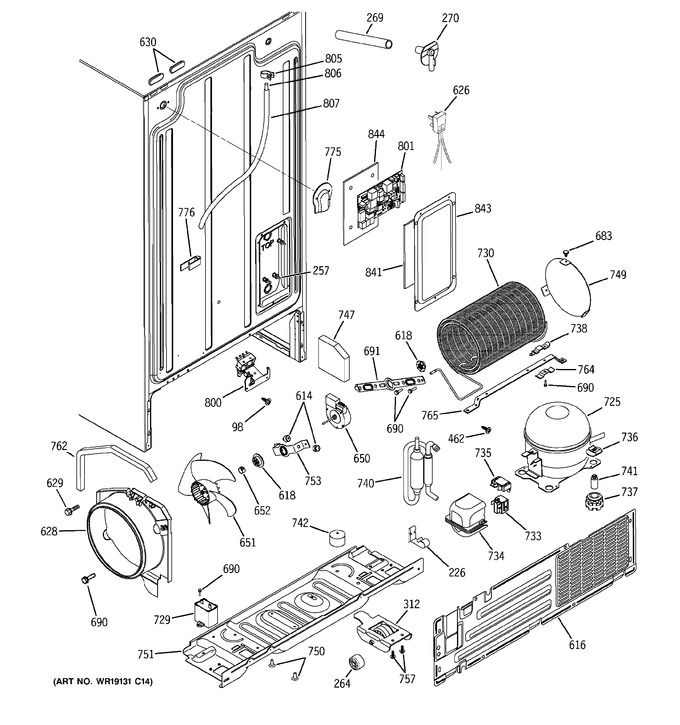

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 98 | WR1K1 | Screw 8-36 T Ihw 3/8 Sn |
|
- | |||||
| 226 | WR02X10558 | Clip Drain Tube |
|
- | |||||
| 257 | WR02X10159 | Fastener Board |
|
- | |||||
| 264 | WG03L06838 | Wheel Mobility Rear (Replaces: WR02X10695) |
|
$ 19.06 | |||||
| 269 | WR02X10826 | Tube Im Fill |
|
- | |||||
| 270 | WR1X5223 | Clamp Hose |
|
- | |||||
| 270 | WR2X9153 | Grommet Water Fill |
|
- | |||||
| 312 | WR02X10571 | Mobility Back Asm |
|
- | |||||
| 462 | WZ06X0136 | Scr 8-18 Ab Hxw 1/2 S |
|
- | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 616 | WR82X10071 | Cover Access Asm |
|
- | |||||
| 618 | WR01A00315 | Grommet Cond Fan (Replaces: WR02X10520) |
|
$ 4.17 | |||||
| 626 | WR23X108 | Cord Power Asm |
|
- | |||||
| 626 | WR1X5278 | Clamp Cable |
|
- | |||||
| 628 | WR17X11252 | Shroud Condenser |
|
- | |||||
| 630 | WR2X4097 | Plug Button Wh |
|
- | |||||
| 650 | WR60X10065 | Motor Dc Cond Fan |
|
- | |||||
| 651 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10049) |
|
$ 11.51 | |||||
| 652 | WR02X10509 | Ring Compression |
|
- | |||||
| 683 | WR02X10562 | Fastener Push |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 725 | WR87X10041 | Comp Repl Kit |
|
- | |||||
| 729 | WR62X80 | Capacitor |
|
- | |||||
| 730 | WR01F02892 | Condenser Repl Asm (Replaces: WR84X10022) |
|
$ 403.54 | |||||
| 733 | WR07X10033 | Ptcr |
|
- | |||||
| 734 | WR02X10556 | Cover Relay Snap(mei) |
|
- | |||||
| 735 | WR08X10026 | Overload |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 738 | WR2X7064 | Clip Cond Loop |
|
- | |||||
| 740 | WG03A03157 | Dryer Bifurcated Xh9 (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 742 | WR02X10587 | Support Condenser |
|
- | |||||
| 747 | WR82X10073 | Insulation Side |
|
- | |||||
| 749 | WR17X10694 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1786 | Screw 10-32 Tr 1/2 |
|
- | |||||
| 751 | WR17X10693 | Baseplate High Side |
|
- | |||||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 757 | WR01X10194 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 757 | WR01X10252 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 762 | WR14X10053 | Foam Strip Se Adh |
|
- | |||||
| 762 | WR14X313 | Foam Strip |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10695 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR02X10047 | Cover Water Line |
|
- | |||||
| 776 | WG03A00749 | Clamp Tube (Replaces: WR02X10522) |
|
$ 9.25 | |||||
| 800 | WG04F11911 | Water Valve Asm (Replaces: WR57X10032) |
|
Immediately | $ 123.62 | ||||
| 801 | WR55X10174 | Board Asm Main Control |
|
- | |||||
| 805 | WR2X3736 | Clamp Tube |
|
- | |||||
| 806 | WR17X10733 | Tube Plastic |
|
- | |||||
| 807 | WR17X11325 | Cover Plastic |
|
- | |||||
| 841 | WR02X10599 | Insulator Main Board |
|
- | |||||
| 843 | WR17X10700 | Cover Enclosure |
|
- | |||||
| 844 | WR02X10569 | Insulator Main Board |
|
- |
