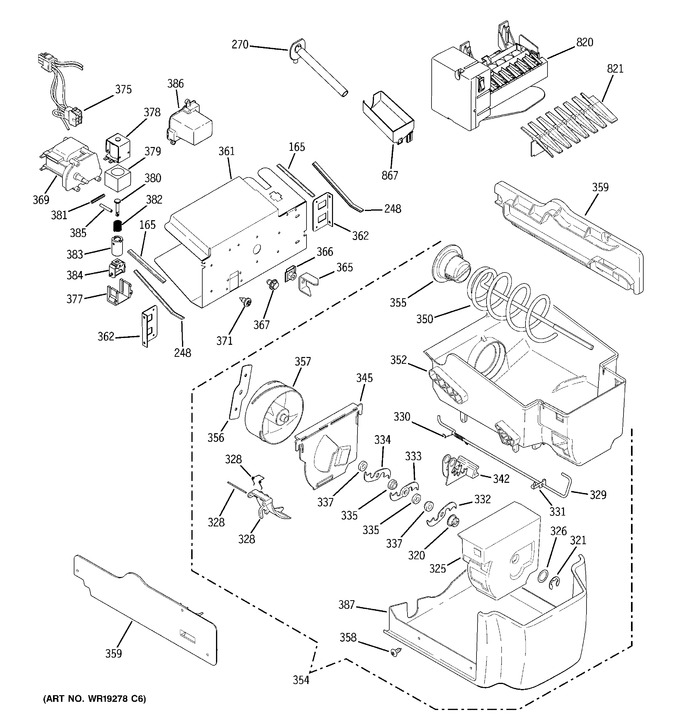

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
165	WR14X10167		Gasket Motor Cover		Appelez-nous	-
248	WR14X10168		Gasket Motor Cover		Appelez-nous	-
270	WR17X11506		Grommet And Tube Asm		Appelez-nous	-
320	WR01F03224		Nut Auger Frt Disp   (Replaces: WR01X10315)				$ 6.35
321	WR1X1367		Retainer Ring E		Appelez-nous	-
325	WR17X10717		Housing Crusher Disp		Appelez-nous	-
326	WR01A01060		Washer   (Replaces: WR1X1366)				$ 4.20
328	WR17X10703		Deflector Ice Disp		Appelez-nous	-
328	WR2X4143		Pin Deflector Disp		Appelez-nous	-
328	WR2X4561		Spring Ice Deflector		Appelez-nous	-
329	WR17X11456		Wire Actuator Disp		Appelez-nous	-
330	WR01A00911		Spring Deflector   (Replaces: WR02X10583)				$ 4.20
331	WR02X10580		Retainer Spring		Appelez-nous	-
332	WR17X1361		Blades Moving Disp		Appelez-nous	-
333	WR17X1362		Blades Moving Disp		Appelez-nous	-
334	WR17X1363		Blades Moving Disp		Appelez-nous	-
335	WR2X4139		Spacer Crusher Middle		Appelez-nous	-
337	WR2X4138		Spacer Crusher Stationar		Appelez-nous	-
342	WR02X10691		Stationary Blades Asm		Appelez-nous	-
345	WR17X11453		Cover Crusher		Appelez-nous	-
350	WR17X11455		Auger Helix Disp		Appelez-nous	-
352	WR30X10045		Bucket Ice Disp		Appelez-nous	-
354	WR01L00297		Bucket And Auger Asm   (Replaces: WR17X11447)				$ 151.36
355	WR01L01180		Cup Drive   (Replaces: WR17X11459)			Immediately	$ 7.35
356	WR01F01689		Plate Helix Lock   (Replaces: WR17X11458)				$ 8.40
357	WR17X11457		Helix		Appelez-nous	-
358	WR01X10478		Scr 8-18 Ab Phr 1/2 S		Appelez-nous	-
359	WR72X10136		Glide Bucket Rh		Appelez-nous	-
359	WR72X10137		Glide Bucket Lh		Appelez-nous	-
361	WR17X11460		Cover Mtr & Solenoid		Appelez-nous	-
362	WR02X10656		Bracket Angle		Appelez-nous	-
365	WR01L01924		Drive Auger Disp   (Replaces: WR02X11534)				$ 81.58
366	WR01X10190		Nut J		Appelez-nous	-
367	WR01X10198		Scr 8-18 Tpt 1/4		Appelez-nous	-
369	WR60X10125		Motor Crusher Disp		Appelez-nous	-
371	WR01X10192		Scr 10-18 Hi/lo Hxw 1/2		Appelez-nous	-
375	WR23X10330		Harness Motor & Sol		Appelez-nous	-
377	WR2X7309		Saddle Solenoid		Appelez-nous	-
378	WR01F00328		Solenoid & Arm Asm   (Replaces: WR62X58)				$ 151.81
379	WR01F00328		Shroud Solenoid   (Replaces: WR17X1063)				$ 151.81
380	WR01F00328		Plunger Solenoid   (Replaces: WR17X1064)				$ 151.81
381	WR01F00328		Pin Spiral   (Replaces: WR2X4257)				$ 151.81
382	WG03A00097		Spring Solenoid Linkage   (Replaces: WR2X4258)				$ 79.62
383	WR01F00328		Collar Solenoid Disp   (Replaces: WR17X1065)				$ 151.81
384	WG04F00407		Stirrup Solenoid Disp   (Replaces: WR17X1066)				$ 95.41
385	WR01F00328		Pin Spiral   (Replaces: WR2X4259)				$ 151.81
386	WR02X11767		Boot Auger Motor Int		Appelez-nous	-
387	WR17X11454		Cover Bucket Bottom		Appelez-nous	-
820	IM6D		Icemaker Asm   (Replaces: WR30X10044)			Immediately	$ 274.39
821	WG03F02285		Stripper Im   (Replaces: WR02X11548)				$ 78.44
867	WR29X10058		Cup Fill Im		Appelez-nous	-
