SELECT A DIAGRAM

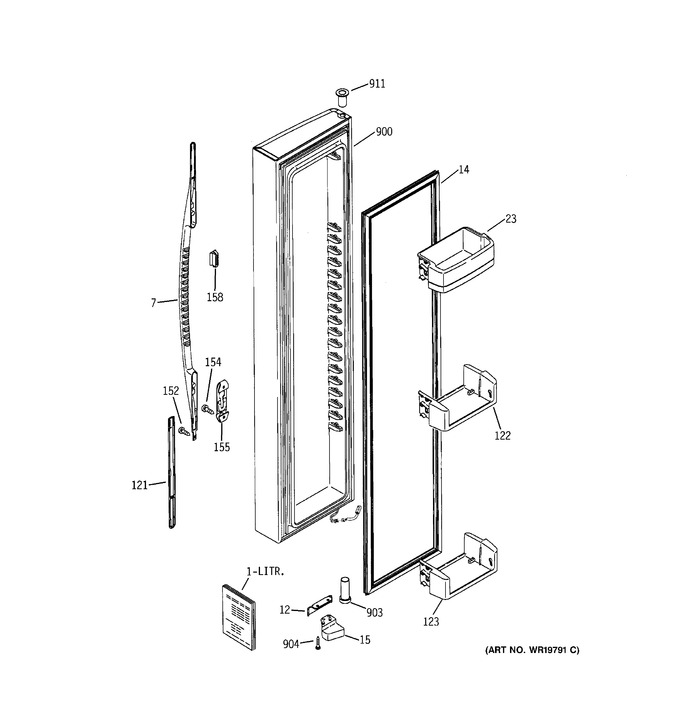

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60298		Pm Guide Owners		Appelez-nous	-
1	31-51577		Pm Mini Wiring Manual		Appelez-nous	-
7	WR12X10406		Handle Sxs Asm Wh		Appelez-nous	-
12	WR02X10690		Stop Door Wh		Appelez-nous	-
14	WR01L02185		Gasket Door Fz Wh   (Replaces: WR24X10156)				$ 62.92
15	WR02X10638		Cam Closure Fz Wh		Appelez-nous	-
23	WR01L00038		Module Shelf Fz Fixed   (Replaces: WR71X10254)				$ 26.67
121	WR12X10405		Trim Handle Lower Wh		Appelez-nous	-
122	WR01L02896		Module Shelf Fz   (Replaces: WR71X10291)				$ 26.70
123	WR71X10501		Module Shelf Fz Fixed		Appelez-nous	-
152	WR01X10467		Scr 8-18 Ab Trp 3/4 S Zn		Appelez-nous	-
154	WR01X10213		Scr 8-18 Ab Rnt20 5/8 S		Appelez-nous	-
155	WR02X10643		Bracket Handle Lock		Appelez-nous	-
158	WR02X10646		Tail Mtng Hndl Retnr		Appelez-nous	-
900	WR78X10408		Door Foam Asm Fz Wh		Appelez-nous	-
903	WR01X10208		Thimble Door Btm Fz Wh		Appelez-nous	-
904	WR01X10375		Screw Door Stop T20		Appelez-nous	-
911	WR01X10207		Thimble Door Top Wh		Appelez-nous	-
