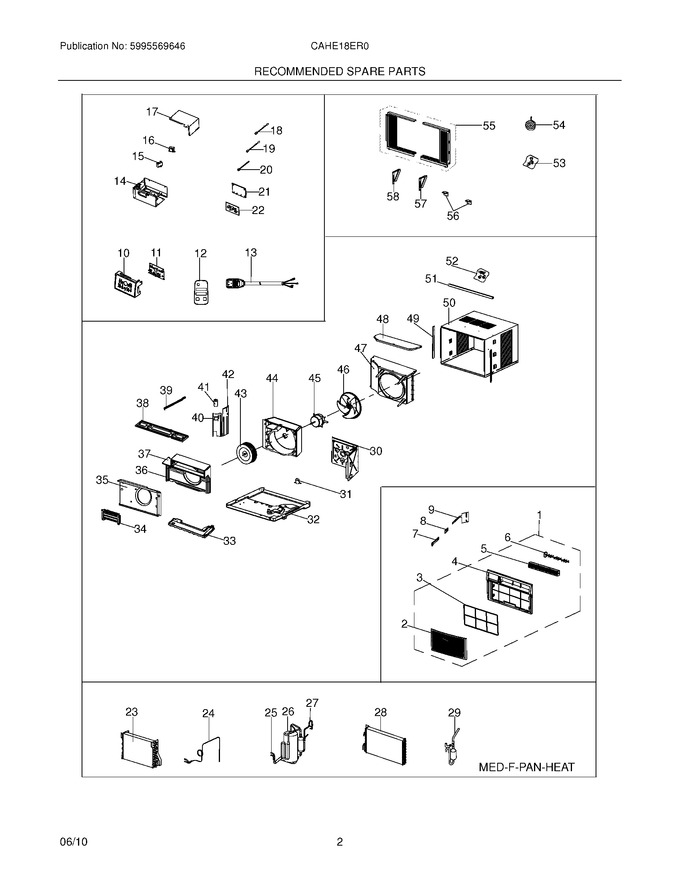

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304472651 | Panel,complete ,front ,includes ,2,3,4,5,6 |
|
- | |||||
| 2 | 5304472523 | Panel,front Grille ,tilt-out |
|
- | |||||
| 3 | 5304472524 | Filter,air |
|
- | |||||
| 4 | 5304472652 | Panel,frame ,front |
|
- | |||||
| 5 | 5304472526 | Louver,horizontal |
|
- | |||||
| 6 | 5304472527 | Louver,vertical |
|
- | |||||
| 7 | 5304472533 | Handle,vent Control |
|
- | |||||
| 10 | 5304472653 | Control Panel,with Overlay |
|
- | |||||
| 14 | 5304476313 | Control Box |
|
- | |||||
| 17 | 5304476314 | Cover,control Box |
|
- | |||||
| 21 | 5304476251 | Holder,mounting Plate ,control |
|
- | |||||
| 30 | 5304472538 | Bulkhead,partition ,front Right |
|
- | |||||
| 32 | 5304477000 | Base,unit Chassis |
|
- | |||||
| 33 | 5304472530 | Tray,drip Pan |
|
- | |||||
| 35 | 5304476325 | Shield,heater Housing |
|
- | |||||
| 36 | 5304472636 | Scroll,blower Housing ,bottom |
|
- | |||||
| 37 | 5304472637 | Scroll,blower Housing ,top |
|
- | |||||
| 38 | 5304476326 | Cover,blower Scroll ,front |
|
- | |||||
| 39 | 5304476327 | Bracket,connecting |
|
- | |||||
| 40 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 42 | 5304476328 | Bulkhead,partition ,front/left |
|
- | |||||
| 44 | 5304472639 | Scroll,blower Housing ,rear |
|
- | |||||
| 47 | 5304476329 | Shroud,condenser Fan |
|
- | |||||
| 48 | 5304476330 | Cover,condenser Fan ,rear |
|
- | |||||
| 49 | 5304472543 | Retainer,shutter Mount ,cabinet Side |
|
- | |||||
| 50 | 5304476900 | Cabinet,wrapper/sleeve |
|
- | |||||
| 51 | 5304472545 | Rail,top |
|
- | |||||
| 52 | 5304472546 | Screw Kit,top Rail Mount |
|
- | |||||
| 53 | 5304472547 | Hardware,mounting ,screws/locks |
|
- | |||||
| 54 | 5304472548 | Seal Kit,foam ,top,bottom,sash |
|
- | |||||
| 55 | 5304472542 | Window Filler Kit,slider Panels |
|
- | |||||
| 56 | 5304472360 | Bracket,sill Angle |
|
- | |||||
| 57 | 5304472359 | Bracket,mounting ,right ,window |
|
- | |||||
| 58 | 5304472358 | Bracket,mounting ,left ,window |
|
- | |||||
| F11 | 5304476310 | Pc Board,display/input |
|
- | |||||
| F12 | 5304471314 | Remote Control,transmitter |
|
- | |||||
| F13 | 5304476999 | Power Cord,lcdi ,test/reset |
|
- | |||||
| F15 | 5304521130 | Capacitor,fan Motor (Replaces: 5304472609) |
|
- | |||||
| F16 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| F18 | 5304471276 | Thermistor,temp Sensor ,indoor |
|
$ 33.88 | |||||
| F19 | 5304476316 | Thermistor,discharge ,sensor |
|
- | |||||
| F20 | 5304512375 | Thermistor,evaporator ,sensor (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F22 | 5304476315 | Pc Board,control/power ,main |
|
- | |||||
| F23 | 5304476317 | Evaporator,with Cap Tube |
|
- | |||||
| F24 | 5304476318 | Tube,capillary |
|
- | |||||
| F25 | 5304476319 | Tube,suction |
|
- | |||||
| F26 | 5304475735 | Compressor |
|
- | |||||
| F27 | 5304476320 | Tube,discharge |
|
- | |||||
| F28 | 5304476321 | Condenser |
|
- | |||||
| F29 | 5304476322 | Drier-filter |
|
- | |||||
| F31 | 5304476323 | Valve,drain |
|
- | |||||
| F34 | 5304472338 | Heater Assembly,electric |
|
- | |||||
| F41 | 5304475736 | Capacitor,compressor |
|
- | |||||
| F43 | 5304472346 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F45 | 5304529416 | Motor,fan (Replaces: 5304472617) |
|
- | |||||
| F46 | 5304538708 | Fan Blade,axial Flow (Replaces: 5304472356) |
|
$ 50.16 | |||||
| F8 | 5304472534 | Link,lever/vent Door ,detent |
|
- | |||||
| F9 | 5304472535 | Door,vent Control ,with Lever |
|
- |
