SELECT A DIAGRAM

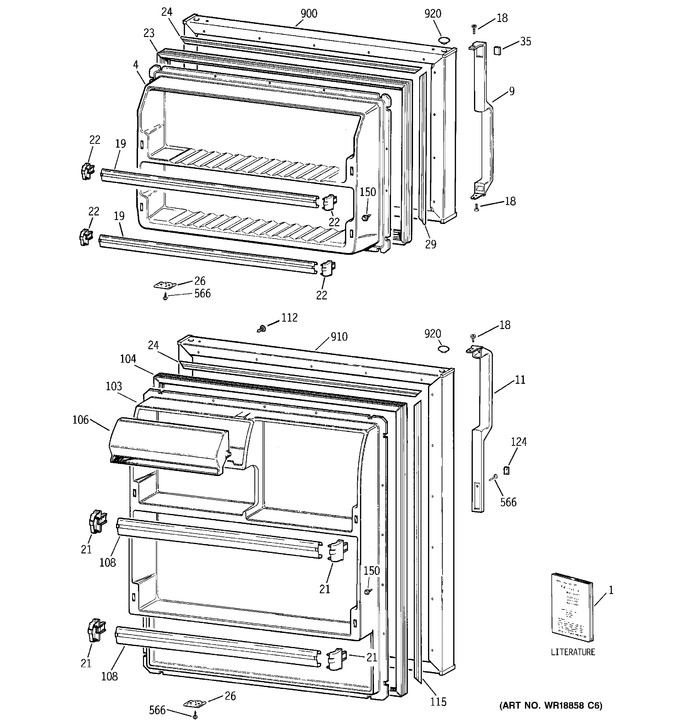

1 - Doors


2 - Cabinet


3 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60250		Pm Guide Owners		Appelez-nous	-
1	31-51434		Pm Mini Manual Wiring		Appelez-nous	-
4	WR77X550		Door Inner Fz		Appelez-nous	-
9	WR12X10453		Handle Door Asm Fz		Appelez-nous	-
11	WR12X10454		Handle Door Ff Cc		Appelez-nous	-
18	WR1X1726		Scr 10-16ab Fwr 3/4 Ss		Appelez-nous	-
19	WR17X10667		Front Door Shelf Gesm		Appelez-nous	-
21	WR2X9144		Cap Shlf Frt		Appelez-nous	-
22	WG03L00648		Cap Shlf Frnt Narrow   (Replaces: WR2X9162)			Immediately	$ 19.06
23	WG03L00640		Gskt Door Fz   (Replaces: WR24X10050)			Immediately	$ 146.91
24	WR2X8235		Retainer Strip H		Appelez-nous	-
26	WR02X10513		Stop Door Ff/fz		Appelez-nous	-
29	WR2X8236		Retainer Strip V		Appelez-nous	-
35	WR02X10708		Lens Nameplate Bq		Appelez-nous	-
103	WR77X645		Door Inner Ff		Appelez-nous	-
104	WG03F00914		Gasket Door Ff   (Replaces: WR24X10049)			Immediately	$ 155.77
106	WG03L00757		Door Dairy   (Replaces: WR22X476)				$ 109.16
108	WG03L01076		Front Door Shelf Gelg   (Replaces: WR17X10670)				$ 112.63
112	WR02X10459		Plug Door Rvsbl Bq		Appelez-nous	-
115	WR2X8237		Retainer Strip Vert		Appelez-nous	-
124	WR12X10452		Plug Button Insert Bq		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
566	WR1X1728		Scr 10-16 1/2 Ph		Appelez-nous	-
900	WR78X10470		Door Foam Asm Fz Bq		Appelez-nous	-
910	WR78X10374		Door Foam Asm Ff Bq		Appelez-nous	-
920	WR02X10850		Plug Button Thimble Bq		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
