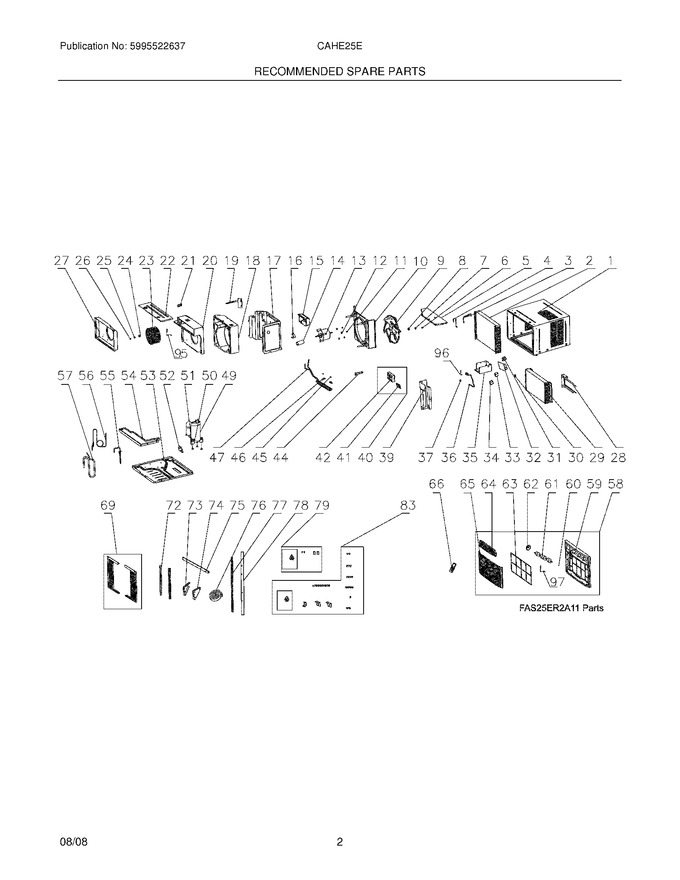

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304459566 | Cabinet,wrapper/sleeve |
|
- | |||||
| 5 | 5304459571 | Cover,condenser/fan ,top |
|
- | |||||
| 6 | 5304459169 | Nut,m8 |
|
- | |||||
| 7 | 5304459170 | Washer,no.8 |
|
- | |||||
| 8 | 5304459171 | Washer,no.8 |
|
- | |||||
| 10 | 5304459572 | Shroud,condenser Fan |
|
- | |||||
| 11 | 5304459175 | Nut,m6 |
|
- | |||||
| 12 | 5304459176 | Washer,no.6 |
|
- | |||||
| 15 | 5304459178 | Cover,capacitor Box |
|
- | |||||
| 16 | 5304459183 | Strap,capacitor Clamp |
|
- | |||||
| 17 | 5304459576 | Bulkhead,air System |
|
- | |||||
| 18 | 5304459577 | Scroll,blower Housing ,rear |
|
- | |||||
| 19 | 5304459578 | Door,fresh Air Vent ,with Lever |
|
- | |||||
| 20 | 5304463482 | Scroll,blower Housing ,front |
|
- | |||||
| 21 | 5304459192 | Link,lever/vent Door |
|
- | |||||
| 22 | 5304459581 | Cover,top Plate ,blower Scroll |
|
- | |||||
| 24 | 5304459188 | Washer,no.10 |
|
- | |||||
| 25 | 5304459189 | Washer,no.10 |
|
- | |||||
| 26 | 5304459190 | Nut,m10 |
|
- | |||||
| 27 | 5304459773 | Shield,heater Housing ,steel |
|
- | |||||
| 30 | 5304459194 | Clip,sensor Support |
|
- | |||||
| 35 | 5304459586 | Control Box |
|
- | |||||
| 37 | 5304459237 | Clamp,wiring |
|
- | |||||
| 39 | 5304459593 | Bulkhead,control System |
|
- | |||||
| 42 | 5304468768 | Control Panel,display Console |
|
- | |||||
| 44 | 5304459244 | Handle,vent Control |
|
- | |||||
| 45 | 5304459246 | Nut,m6 ,with Washer |
|
- | |||||
| 46 | 5304459268 | Clamp,sump Tube |
|
- | |||||
| 50 | 5304467476 | Grommet,compressor |
|
- | |||||
| 51 | 5304459256 | Nut,compressor ,m8 ,w/washer |
|
- | |||||
| 53 | 5304459620 | Base,unit Chassis |
|
- | |||||
| 54 | 5304459621 | Tray,drip Pan ,foam |
|
- | |||||
| 59 | 5304459633 | Panel,frame ,front |
|
- | |||||
| 60 | 5304459272 | Gasket,vertical Louver ,rubber |
|
- | |||||
| 62 | 5304459636 | Knob,auger Wheel ,louver |
|
- | |||||
| 65 | 5304459640 | Panel,front Grille ,tilt-out |
|
- | |||||
| 69 | 5304462391 | Window Filler Kit,slider Panels |
|
- | |||||
| 72 | 5304459645 | Retainer,shutter ,cabinet Sides |
|
- | |||||
| 73 | 5304459537 | Bracket,support ,left ,angle |
|
- | |||||
| 74 | 5304459538 | Bracket,support ,right ,angle |
|
- | |||||
| 75 | 5304459646 | Rail,shutter Track ,top |
|
- | |||||
| 76 | 5304459559 | Seal,sash ,window Stuffer |
|
- | |||||
| 77 | 5304459560 | Seal,bottom Rail ,cab/chassis |
|
- | |||||
| 78 | 5304459647 | Seal,top Rail ,cabinet |
|
- | |||||
| 79 | 5304459772 | Kit,shutter Lock ,screw/washers |
|
- | |||||
| 83 | 5304459562 | Hardware Kit,installation |
|
- | |||||
| F13 | 5304467466 | Motor,fan |
|
- | |||||
| F14 | 5304459575 | Capacitor,motor |
|
- | |||||
| F2 | 5304459567 | Condenser |
|
- | |||||
| F23 | 5304465437 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F28 | 5304459582 | Heater Assembly,electric |
|
- | |||||
| F29 | 5304459584 | Evaporator |
|
- | |||||
| F3 | 5304459568 | Tube,inlet ,condenser |
|
- | |||||
| F31 | 5304459196 | Transformer |
|
- | |||||
| F32 | 5304467478 | Pc Board,control ,main |
|
- | |||||
| F33 | 5304459234 | Relay,ac |
|
- | |||||
| F34 | 5304459461 | Relay |
|
- | |||||
| F36 | 5304459592 | Power Cord,electric ,lcdi |
|
- | |||||
| F4 | 5304459570 | Tube,outlet ,condenser |
|
- | |||||
| F40 | 5304467479 | Control Panel Assembly,console |
|
- | |||||
| F41 | 5304467480 | Pc Board,display/input |
|
- | |||||
| F47 | 5304459610 | Tube,sump |
|
- | |||||
| F49 | 5304467482 | Compressor,with Overload |
|
- | |||||
| F52 | 5304459477 | Valve,drain |
|
- | |||||
| F55 | 5304467477 | Tube,discharge |
|
- | |||||
| F56 | 5304459625 | Tube,capillary |
|
- | |||||
| F57 | 5304459629 | Tube,suction |
|
- | |||||
| F58 | 5304459631 | Front Assembly,complete Panel |
|
- | |||||
| F61 | 5304459635 | Louver,vertical |
|
- | |||||
| F63 | 5304459637 | Filter,air |
|
- | |||||
| F64 | 5304459638 | Louver,horizontal |
|
- | |||||
| F66 | 5304468763 | Remote Control,transmitter |
|
- | |||||
| F9 | 5304459172 | Fan Blade,propeller |
|
$ 71.35 | |||||
| F95 | 5304459792 | Thermistor,temp Sensor ,ambient |
|
$ 64.16 | |||||
| F96 | 5304459875 | Thermistor,evap Sensor ,defrost |
|
- | |||||
| F97 | 5304459876 | Thermistor,temp Sensor ,ambient |
|
- |
