SELECT A DIAGRAM

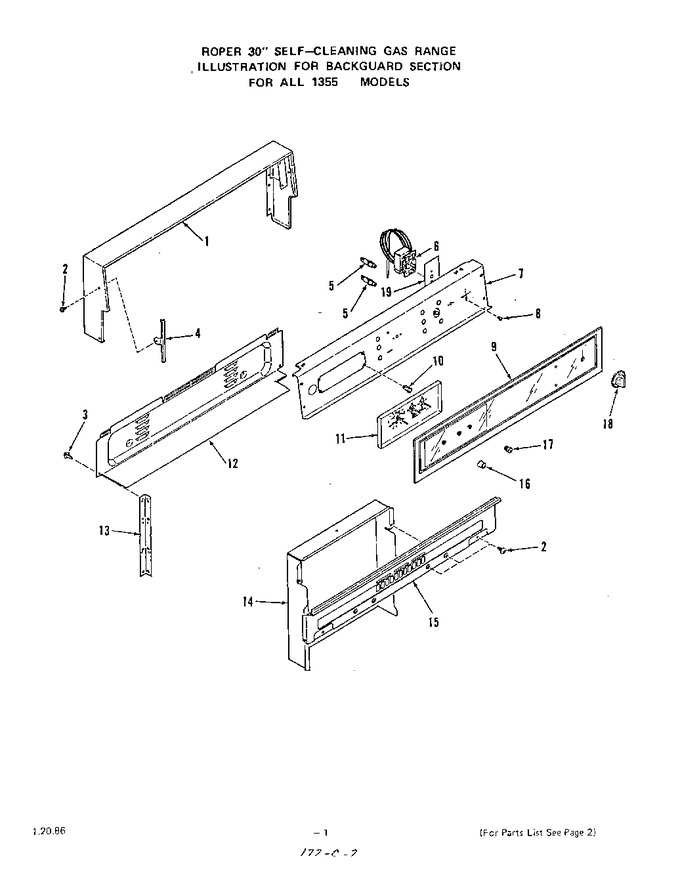

01 - Backguard


02 - Main Top


03 - Griddle


04 - Power Lock


05 - Top Burner


06 - Broiler And Oven Burner


07 - Oven Body


08 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328409		Frame-backguard		Appelez-nous	-
2	327621		Screw 6-2-x3/8``		Appelez-nous	-
3	327320		Screw 10-16x7/16``		Appelez-nous	-
4	316351		End Trim-backguard Glass (lt. Or Rt.)		Appelez-nous	-
5	296317		Indicator Light		Appelez-nous	-
6	328279		Oven Thermostat		Appelez-nous	-
7	328997		Mounting Panel-controls		Appelez-nous	-
8	78565		Screw 8-32x3/16``		Appelez-nous	-
9	328285		Backguard Glass		Appelez-nous	-
10	293577		Tubular Clip (4 Req.)		Appelez-nous	-
11	331265		Clock W/1 Hr. Timer		Appelez-nous	-
12	328280		Wire Cover		Appelez-nous	-
13	319361		Support-backguard (lt. Or Rt.)		Appelez-nous	-
14	328487		Shield-flue Deflector		Appelez-nous	-
15	328282		Bottom Front-backguard		Appelez-nous	-
16	294810		Knob-clock (minute Timer)		Appelez-nous	-
17	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
18	328278		Knob-oven Thermostat		Appelez-nous	-
19	330287		Barrier-thermostat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
