SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Evaporator Instructions


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Unit Parts

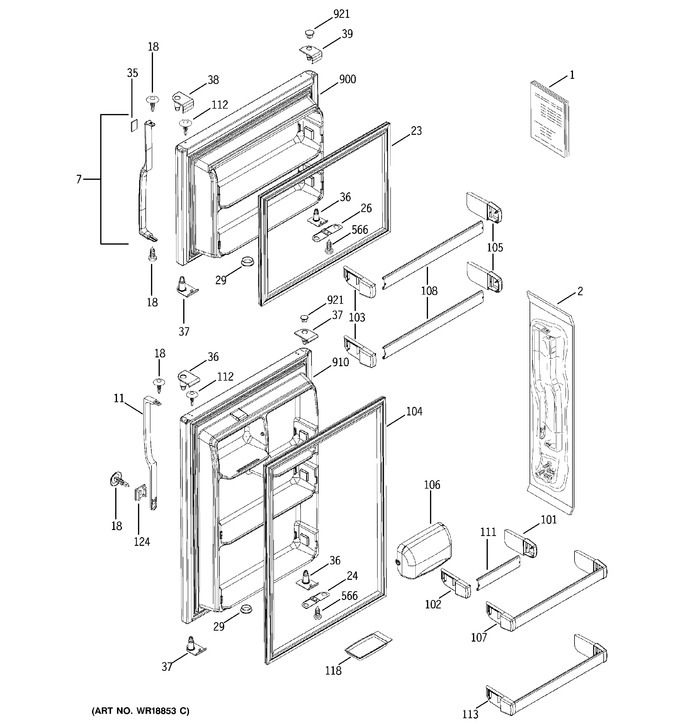

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51377		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60102		Use & Care Manual		Appelez-nous	-
2	WR12X10414		Pk Handle Small Asm Bq		Appelez-nous	-
7	WR12X10415		Handle Asm Fz Bq		Appelez-nous	-
11	WR12X10416		Handle Door Asm Ff Bq		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
23	WR24X10095		Gasket Door Fz Wh		Appelez-nous	-
24	WR02X10740		Stop Door Ff		Appelez-nous	-
26	WR02X10741		Stop Door Fz Bq		Appelez-nous	-
29	WR02X10462		Plug Button Foam Bq		Appelez-nous	-
35	WR02X10708		Lens Nameplate Bq		Appelez-nous	-
36	WR02X10742		Cap Door Corner Bq		Appelez-nous	-
37	WR02X10743		Cap Door Corner Bq		Appelez-nous	-
38	WR02X10744		Cap Door Corner Bq		Appelez-nous	-
39	WR02X10745		Cap Door Corner Bq		Appelez-nous	-
101	WR02X10789		Cap Shelf Front Rh		Appelez-nous	-
102	WR02X10790		Cap Shelf Front Lh		Appelez-nous	-
103	WR02X10792		Cap Shelf Front Lh		Appelez-nous	-
104	WR24X10094		Gasket Door Ff Wh		Appelez-nous	-
105	WR02X10791		Cap Shelf Front Rh		Appelez-nous	-
106	WG03L09118		Door Dairy Clear   (Replaces: WR22X10024)				$ 63.72
107	WR71X10283		Bin Fixed Raingutter Gal		Appelez-nous	-
108	WR71X10281		Shelf Front Full		Appelez-nous	-
111	WR71X10282		Shelf Front Ff Half		Appelez-nous	-
112	WR02X10459		Plug Door Rvsbl Bq		Appelez-nous	-
113	WR17X10905		Bin Fixed Raingutter 2l		Appelez-nous	-
118	WR19X5003		Butter Dish		Appelez-nous	-
124	WR12X10356		Plug Button Handle Bq		Appelez-nous	-
566	WR1X1728		Scr 10-16 1/2 Ph		Appelez-nous	-
900	WR78X10425		Door Asm Fz Bq		Appelez-nous	-
910	WR78X10424		Door Asm Ff Bq		Appelez-nous	-
921	WR02X10739		Plug Door Thimble Bq		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
