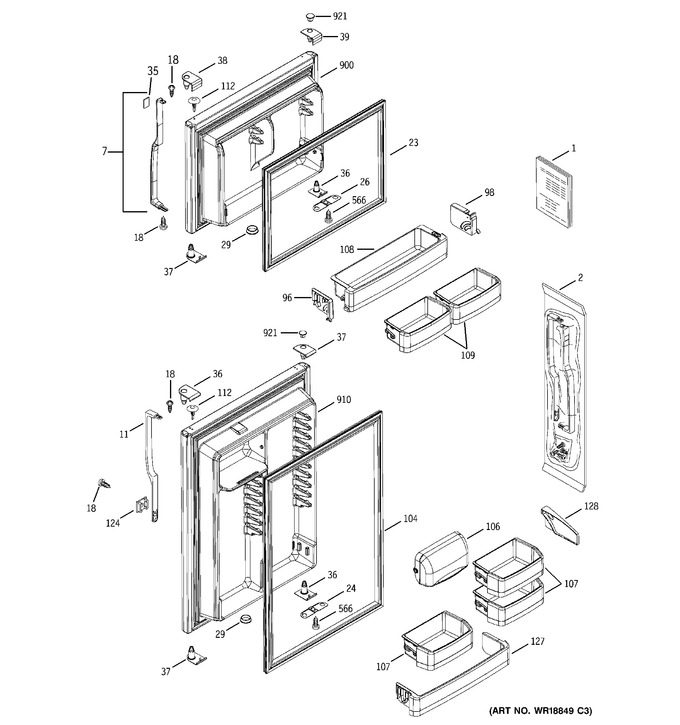

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51377		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60178-1		Pm Guide Owners		Appelez-nous	-
2	WR12X10558		Pk Handle Small Asm Ad		Appelez-nous	-
7	WR12X10427		Handle Asm Fz Ad		Appelez-nous	-
11	WR12X10428		Handle Door Asm Ff Ad		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
23	WR24X10095		Gasket Door Fz Wh		Appelez-nous	-
24	WR02X10740		Stop Door Ff		Appelez-nous	-
26	WR02X10759		Stop Door Fz Ad		Appelez-nous	-
29	WR2X8088		Plug Button Insert Ad		Appelez-nous	-
35	WR04X10029		Lens Nameplate Ad		Appelez-nous	-
36	WR02X10760		Cap Door Corner Ad		Appelez-nous	-
37	WR02X10761		Cap Door Corner Ad		Appelez-nous	-
38	WR02X10799		Cap Door Corner Ad		Appelez-nous	-
39	WR02X10800		Cap Door Corner Ad		Appelez-nous	-
96	WR71X10265		Cap Tilt Bin L. H.		Appelez-nous	-
98	WR71X10266		Cap Button Push Asm		Appelez-nous	-
104	WR24X10094		Gasket Door Ff Wh		Appelez-nous	-
106	WG03L09118		Door Dairy Clear   (Replaces: WR22X10024)				$ 63.72
107	WR71X10267		Modular Door Bin Ff		Appelez-nous	-
108	WR71X10264		Bin Tilt Out Fz (2l)		Appelez-nous	-
109	WR71X10268		Modular Door Bin Fz		Appelez-nous	-
112	WR2X8697		Plug Door Rvsbl Ad		Appelez-nous	-
124	WR12X10125		Plug Button Handle Ad		Appelez-nous	-
127	WR71X10270		Shelf Front (one Piece)		Appelez-nous	-
128	WR02X11022		Snugger		Appelez-nous	-
566	WR1X1728		Scr 10-16 1/2 Ph		Appelez-nous	-
900	WR78X10389		Door Asm Fz Ad		Appelez-nous	-
910	WR78X10388		Door Asm Ff Ad		Appelez-nous	-
921	WR02X10758		Plug Door Thimble Ad		Appelez-nous	-
