SELECT A DIAGRAM

01 - Cover


03 - Backguard

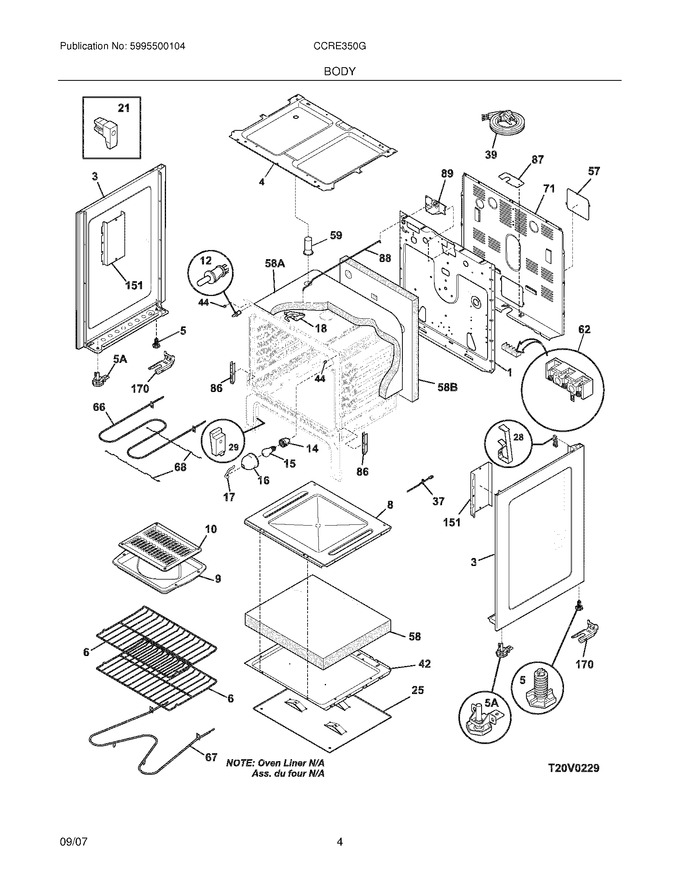

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401800		Panel,main Back		Appelez-nous	-
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 149.65
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 148.81
4	5304522901		Burner Box   (Replaces: 316201401)				$ 95.21
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 30.55
6	316496201		Rack,oven ,(2)   (Replaces: 316496202)			Immediately	$ 114.98
8	316400601		Panel,oven Bottom				$ 139.86
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Accessory				$ 68.85
12	316445501		Switch,oven Light ,door Frame			Immediately	$ 100.01
14	316116400		Receptacle,oven Light			Immediately	$ 62.33
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 19.07
17	316087500		Retainer,lens				$ 63.00
21	316408000		Clip,bodyside				$ 20.22
25	316406200		Shield,heat ,lower				$ 97.74
28	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 26.47
39	318113108		Cord,electric		Appelez-nous	-
42	316407700		Shield,wool ,lower				$ 145.77
44	316517600		Spacer,oven Door				$ 13.39
57	316457801		Cover,access   (Replaces: 316457800)				$ 14.32
58	316403800		Insulation,oven Bottom		Appelez-nous	-
59	316073606		Tube,oven Vent				$ 63.00
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	316203200		Element-broil			Immediately	$ 182.72
67	316075103		Element-bake			Immediately	$ 47.07
68	316404002		Support,element ,broil   (Replaces: 316404000)				$ 9.72
71	316422304		Shield,rear Wall				$ 115.53
86	316441300		Receptacle,hinge				$ 24.41
87	316081202		Bracket,cable Mtg				$ 5.51
88	316203500		Rod,auto Latch				$ 80.33
151	316404600		Shield,bodyside				$ 49.30
170	316112500		Template,anti-tip				$ 3.94
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 21.01
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 14.32
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406600)			Immediately	$ 77.52
58B	316406500		Insulation,oven Back				$ 98.44
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 16.76
F18	316405800		Latch Assembly,oven Door			Immediately	$ 63.04
F37	316490000		Probe,oven Temp			Immediately	$ 64.78
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 58.16
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 12.60
NI	316443013		Harness Wiring,main				$ 240.45
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 16.91
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 14.96
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96
NI	5308014215		Screw`6-20 X 0.312				$ 2.53
NI	316418901		Screw,trilobe ,10-32 X 5/16``				$ 15.75
