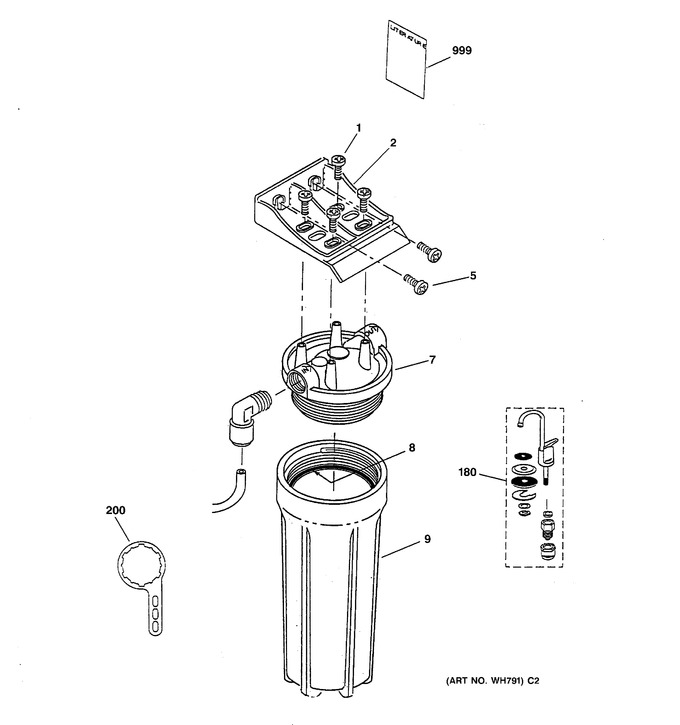

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WS02X10001 | Screw, #10 - 14 X 3/4" |
|
- | |||||
| 2 | WS28X10011 | Mounting Bracket |
|
- | |||||
| 5 | WS02X10003 | Screw, #10 - 14 X 1-1/4" |
|
- | |||||
| 7 | WS19X10011 | Head |
|
- | |||||
| 8 | WS03X10001 | O-ring, 3-3/8" X 3-5/8" |
|
$ 16.38 | |||||
| 9 | WS30X10002 | Sump |
|
$ 84.32 | |||||
| 180 | WS10X10015 | Faucet Kit, White/white |
|
- | |||||
| 180 | WS10X10018 | Faucet Kit, Chr/blk |
|
$ 113.46 | |||||
| 200 | WX5X140 | Sump Wrench |
|
$ 22.16 | |||||
| 999 | WS10X10019 | Installation Kit |
|
- | |||||
| 999 | 49-50044 | Use&care/install Manual |
|
- |
