Diagram for 1 - Water Filtration Parts
1 - Water Filtration Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WS02X10001 Screw, #10 - 14 X 3/4" Appelez-nous -
2 WS28X10011 Mounting Bracket Appelez-nous -
5 WS02X10003 Screw, #10 - 14 X 1-1/4" Appelez-nous -
6 WS22X10032 Elbow, 3/8" Npt X 3/8" Special Order $ 18.91

7 WS19X10011 Head Appelez-nous -
8 WS03X10001 O-ring, 3-3/8" X 3-5/8" Special Order $ 16.38

9 WS30X10002 Sump Special Order $ 84.32

12 WS07X10019 Tubing, 3/8" X 20 Ft.   (Replaces: WS07X10008) Special Order $ 37.89

14 WS02X10004 Nut, 3/8" Special Order $ 11.47

15 WS03X10040 Tubing Adaptor Appelez-nous -
16 WS03X10002 Washer Special Order $ 13.02

17 WS15X10023 Saddle Valve - Supply Special Order $ 50.53

18 WS15X10030 Faucet Ass'y, Chrome/blk Appelez-nous -
100 FXULC Filter - Lead & Cyst Special Order $ 84.54

100 FXUTC Filter - Taste & Odor Special Order $ 28.98

180 WS10X10015 Faucet Kit, White/white Appelez-nous -
200 WX5X140 Sump Wrench Special Order $ 22.16

999 WS10X10014 Faucet Repair Kit Appelez-nous -
999 49-50040 Use&care/install Manual Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

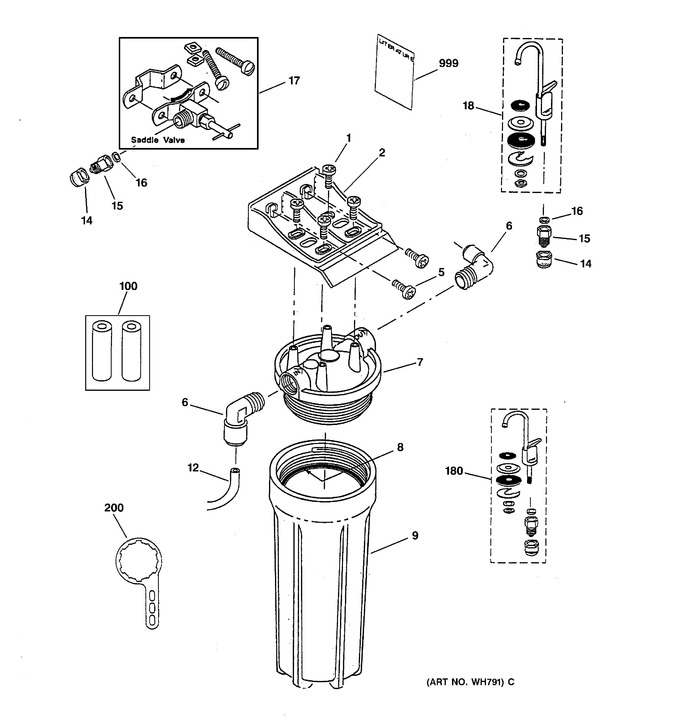

Diagram for GX1S15C
