SELECT A DIAGRAM

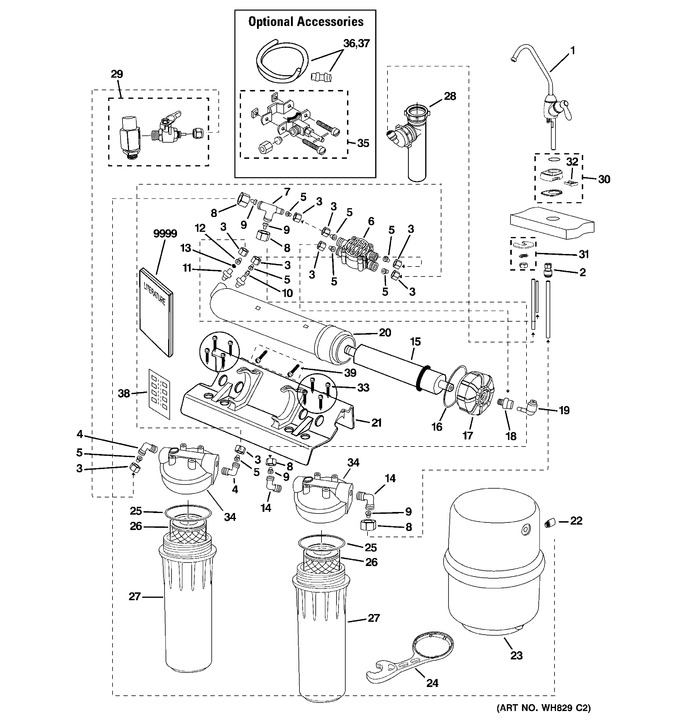

1 - Filter Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WS15X10070 | Faucet Body & Spout (Replaces: WS15X10037) |
|
$ 84.68 | |||||
| 2 | WS22X10037 | 3/8 Quick Connect-faucet |
|
$ 18.91 | |||||
| 3 | WS22X10005 | 1/4" Nut |
|
$ 10.60 | |||||
| 4 | WS22X10026 | 3/8"npt X 1/4" Nut Elbow |
|
$ 16.74 | |||||
| 5 | WS22X10006 | 1/4" Tube Insert |
|
$ 10.60 | |||||
| 6 | WS22X10038 | Valve - Auto-shut Off |
|
$ 18.50 | |||||
| 7 | WS22X10039 | 1/4x 3/8 X 3/8 Tube Tee |
|
- | |||||
| 8 | WS22X10008 | 3/8" Nut |
|
$ 11.78 | |||||
| 9 | WS22X10007 | 3/8" Tube Insert |
|
$ 10.23 | |||||
| 10 | WS22X10040 | Check Valve 1/4" Insert |
|
$ 16.42 | |||||
| 11 | WS22X10041 | 1/8" Npt X 1/4" Fitting |
|
$ 6.07 | |||||
| 12 | WS03X10016 | Flow Control |
|
$ 9.89 | |||||
| 13 | WS03X10015 | Screen Cone |
|
$ 14.57 | |||||
| 14 | WS22X10002 | 3/8"npt X 3/8" Nut Elbow |
|
$ 17.05 | |||||
| 15 | FX12M | Ro Cartridge |
|
Immediately | $ 113.71 | ||||
| 16 | WS03X10045 | O-ring Ro Membrane Hsng |
|
$ 7.71 | |||||
| 17 | WS31X10025 | Cap - Ro Membrane Hsng |
|
$ 9.00 | |||||
| 18 | WS22X10042 | 1/8" Npt X 1/4" Fitting |
|
$ 14.13 | |||||
| 19 | WS22X10043 | Elbow - 1/4" Stem X 1/4" |
|
$ 44.32 | |||||
| 20 | WS20X10006 | Housing - Ro Membrane |
|
$ 18.79 | |||||
| 21 | WS28X10039 | Bracket |
|
$ 25.05 | |||||
| 22 | WS22X10044 | Connector-3/8 X 3/8 Mnpt |
|
$ 19.59 | |||||
| 23 | WS32X10019 | Storage Tank |
|
$ 166.33 | |||||
| 24 | WX5X140 | Canister Wrench |
|
$ 22.16 | |||||
| 25 | WS03X10038 | O-ring-sump Housing |
|
Immediately | $ 8.80 | ||||
| 26 | FX12P | Pre & Post Filters-2 Ea. |
|
$ 104.33 | |||||
| 27 | WS20X10007 | Sump Housing |
|
$ 50.42 | |||||
| 28 | WS18X10006 | Drain Line Adapter -dla9 |
|
$ 94.72 | |||||
| 29 | WS18X10009 | Adapter Kit - Feed Water |
|
$ 31.00 | |||||
| 30 | WS15X10070 | Faucet Base Asm (Replaces: WS10X10028) |
|
$ 84.68 | |||||
| 31 | WS02X10031 | Washer & Nut - Faucet |
|
$ 5.78 | |||||
| 32 | WS21X10019 | Battery Tray |
|
$ 8.99 | |||||
| 33 | WS02X10032 | Screws - Bracket |
|
- | |||||
| 34 | WS31X10026 | Housing Head |
|
$ 17.34 | |||||
| 35 | WS15X10023 | Saddle Valve - Supply |
|
$ 50.53 | |||||
| 36 | WS07X10018 | Tubing -1/4" X 33'-white |
|
$ 22.16 | |||||
| 37 | WS07X10019 | Tubing 3/8" X 33' -white |
|
$ 37.89 | |||||
| 38 | WS01X10013 | Nitrate Test Strip |
|
- | |||||
| 39 | WS02X10033 | Mounting Screws |
|
- | |||||
| 9999 | 49-50106 | Use & Care Manual |
|
- |
