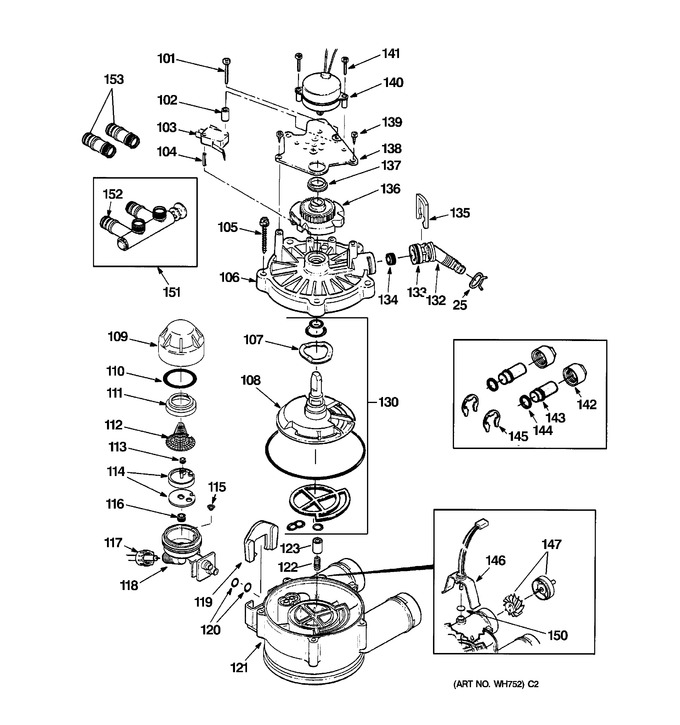

SELECT A DIAGRAM

1 - Body Parts


2 - Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	WS18X10003		Clamp Hose				$ 45.92
101	WS02X10012		Screw, #4 - 24 X 1-1/8"		Appelez-nous	-
102	WS02X10013		Spacer				$ 3.54
103	WS21X10003		Switch				$ 33.08
104	WS01X10055		Pin Expansion   (Replaces: WS03X10009)				$ 78.40
105	WS02X10014		Screw, #10 - 14 X 2 "		Appelez-nous	-
106	WS01X10055		Cover Valve   (Replaces: WS31X10006)				$ 78.40
107	WS03X10010		Washer Wave				$ 41.11
108	WS26X10002		Rotor & Disc				$ 94.73
109	WS19X10004		Cap				$ 25.69
110	WS03X10011		Seal O-ring 1.1" X 1.4"				$ 13.67
111	WS19X10005		Support Screen		Appelez-nous	-
112	WS03X10013		Screen				$ 17.67
113	WS22X10020		Flow Plug, .1 Gpm				$ 25.69
114	WS08X10006		Gasket, Nozzle/vent   (Replaces: WS08X10005)				$ 70.97
115	WS03X10015		Cone Screen				$ 14.57
116	WS22X10021		Plug, Fill Flow, .3 Gpm				$ 26.34
117	WS03X10017		Nut Ferrule				$ 12.85
118	WS15X10027		Nozzle/ventuti Asm   (Replaces: WS15X10009)				$ 87.02
119	WS03X10018		Retainer				$ 12.85
120	WS03X10019		Seal, O-ring 1/4" X 3/8"				$ 3.54
121	WS15X10010		Body Valve				$ 216.11
122	WS03X10020		Spring				$ 6.75
123	WS22X10022		Plug, Drain Sal				$ 25.05
130	WS35X10005		Seal Kit				$ 124.27
132	WS22X10064		Adaptor Drain Hose   (Replaces: WS22X10023)				$ 44.96
133	WS03X10021		O-ring, 5/8" X 13/16"				$ 6.75
134	WS03X10022		Plug Flow, Rinse Control				$ 9.64
135	WS15X10077		Clip   (Replaces: WS03X10023)				$ 121.38
136	WS26X10003		Cam & Gear				$ 46.56
137	WS26X10004		Bearing				$ 9.21
138	WS26X10005		Plate Motor				$ 63.90
139	WS02X10015		Screw, #6 - 20 X 3/8"		Appelez-nous	-
140	WS26X10006		Motor Asm.		Appelez-nous	-
141	WS02X10016		Screw, #6 - 20 X 7/8"		Appelez-nous	-
142	WS60X10001		Nut Installation				$ 27.30
143	WS60X10002		Tube Installation				$ 6.49
144	WS60X10003		Washer				$ 6.75
145	WS60X10004		Clip				$ 8.37
146	WS28X10005		Housing Sensor				$ 135.16
147	WS19X10006		Turbine & Support Asm.				$ 120.10
150	WS03X10024		Seal, O-ring				$ 6.75
151	WS15X10012		Valve By-pass Asm.				$ 181.11
152	WS03X10025		Seal, O-ring				$ 20.50
153	WS60X10006		Adapter				$ 27.94

    View Diagram in Separate Window       Print Part List
