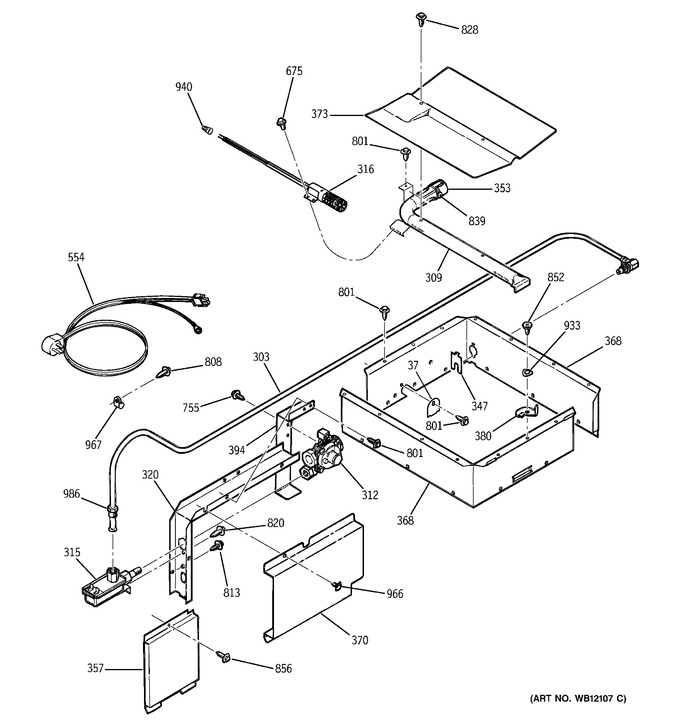

4 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
37	WB34K14		Igniter Cover		Appelez-nous	-
303	WB28K5048		Tubing		Appelez-nous	-
309	WB16T10003		Oven Burner		Appelez-nous	-
312	WB19K5032		Pressure Regultr-convtbl		Appelez-nous	-
315	WB21K5009		Control Valve		Appelez-nous	-
316	WG02F04373		Igniter-broil/oven   (Replaces: WB2X9154)			Immediately	$ 125.83
320	WB34K5212		Wire Cover Valve		Appelez-nous	-
347	WB2K5165		Orifice Fitting Plate		Appelez-nous	-
353	WB2X9014		Air Shutter		Appelez-nous	-
357	WB34K5096		Valve Cover		Appelez-nous	-
368	WB64K5036		Ov Burn Box Side-lt		Appelez-nous	-
368	WB64T10008		Ov Burn Box Side-rt		Appelez-nous	-
370	WB34K5181		Regulator Cover		Appelez-nous	-
373	WB34K5103		Ov Burn Baffle-upper		Appelez-nous	-
380	WB14X115		Latch-burner Box Bottom		Appelez-nous	-
394	WB2K5343		Regulator Support		Appelez-nous	-
554	WB8K5039		Range Cord		Appelez-nous	-
675	WB1K5213		Screw 10-32x5/32		Appelez-nous	-
755	WZ04X0044		Screw		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
808	WB1X1116		Screw		Appelez-nous	-
813	WS01A00445		Screw   (Replaces: WB1X1261)				$ 12.51
820	WB1X1424		Screw		Appelez-nous	-
828	WB1X1141		Screw		Appelez-nous	-
839	WB1X1124		Air Shutter Screw		Appelez-nous	-
852	WB1X1179		Screw		Appelez-nous	-
856	WG02F04011		Screw Tc10-32x.250hexni   (Replaces: WB1X1293)				$ 3.57
933	WB1X1256		Washer Spring		Appelez-nous	-
940	WB1X1181		Wire Connector		Appelez-nous	-
966	WB2X9573		Clip		Appelez-nous	-
967	WB2X1422		Harness Clamp		Appelez-nous	-
986	WB1X1117		Inverted Nut 3/8"		Appelez-nous	-
