SELECT A DIAGRAM
02 - Backguard
03 - Main Top
04 - Griddle
05 - Power Lock
06 - Top Burner
07 - Broiler And Oven Burner

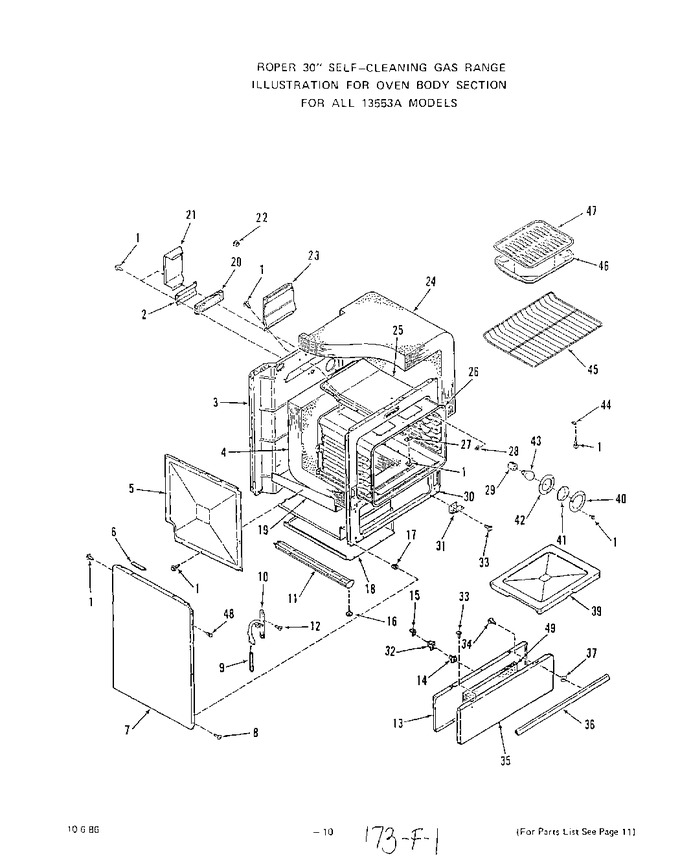

08 - Oven Body
09 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 2 | 327809 | Wire Shield |
|
- | |||||
| 3 | 330167 | Main Back |
|
- | |||||
| 4 | 329146 | Insulation-oven Back & Bottom (1 Piece) |
|
- | |||||
| 5 | 328959 | Retainer-insulation (lt. Or Rt.) |
|
- | |||||
| 6 | 326914 | Spacer-main Top (2 Req) |
|
- | |||||
| 7 | 326055 | Body Side (lt. Or Rt.) (white) |
|
- | |||||
| 7 | 326058 | Body Side (lt. Or Rt.) (golden Wheat) |
|
- | |||||
| 7 | 326059 | Body Side (lt. Or Rt.) (almond) |
|
- | |||||
| 7 | 326102 | Body Side (lt. Or Rt.) (black) |
|
- | |||||
| 8 | 314124 | Screw 8abx5/8`` |
|
- | |||||
| 9 | 326964 | Spring-oven Door (lt. Or Rt.) |
|
- | |||||
| 10 | 326012 | Hinge-oven Door (right) |
|
- | |||||
| 10 | 326013 | Hinge-oven Door (left) |
|
- | |||||
| 11 | 334811 | Base W/levelers-lt. Or Rt. |
|
- | |||||
| 12 | 331704 | Screw |
|
- | |||||
| 13 | 335065 | Lining-broiler Door |
|
- | |||||
| 14 | 335061 | Strike |
|
- | |||||
| 15 | 335059 | Bracket-catch |
|
- | |||||
| 16 | 326052 | Leg Leveler (4 Req) |
|
- | |||||
| 17 | 330031 | Expansion Nut Spacer (4 Req) (Replaces: 312605) |
|
Immediately | $ 19.92 | ||||
| 18 | 328491 | Storage Compartment |
|
- | |||||
| 19 | 331144 | Lower Insulation Retainer |
|
- | |||||
| 20 | 330166 | Insulation |
|
- | |||||
| 21 | 327808 | Wire Shield |
|
- | |||||
| 22 | 324257 | Bushing |
|
- | |||||
| 23 | 331564 | Flue Deflector |
|
- | |||||
| 24 | 329147 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 25 | 327781 | Flue Box |
|
- | |||||
| 26 | 331568 | Oven Body |
|
- | |||||
| 27 | 304835 | Cover |
|
- | |||||
| 28 | 321539 | Clip-thermostat Bulb (2 Req) |
|
- | |||||
| 29 | 87883 | Holder-oven Light Bulb |
|
- | |||||
| 30 | 335069 | Front Frame |
|
- | |||||
| 31 | 335058 | Hinge |
|
- | |||||
| 32 | 335060 | Catch |
|
- | |||||
| 33 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 34 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 35 | 330480 | Front Panel-storage Door (white) |
|
- | |||||
| 35 | 330485 | Front Panel-storage Door (black) |
|
- | |||||
| 35 | 330484 | Front Panel-storage Door (almond) |
|
- | |||||
| 35 | 330483 | Front Panel-storage Door (golden Wheat) |
|
- | |||||
| 36 | 292240 | Handle-storage Door |
|
- | |||||
| 37 | 302343 | Spacer-handle |
|
- | |||||
| 39 | 331563 | Oven Bottom |
|
- | |||||
| 40 | 229372 | Retainer-oven Light Lens |
|
- | |||||
| 41 | 114989 | Lens-oven Light |
|
- | |||||
| 42 | 229371 | Gasket-lens |
|
- | |||||
| 43 | DA96-01243C | Oven Light Bulb (Replaces: 111257) |
|
$ 160.00 | |||||
| 44 | 237762 | Cover Plate-thermostat Bulb |
|
- | |||||
| 45 | 326069 | Oven Rack (2 Req) |
|
- | |||||
| 46 | 331592 | Pan-broiler |
|
- | |||||
| 47 | 326297 | Broiler Pan Grid |
|
- | |||||
| 48 | 281160 | Accordian Rivet (lt. Or Rt.) |
|
- |
