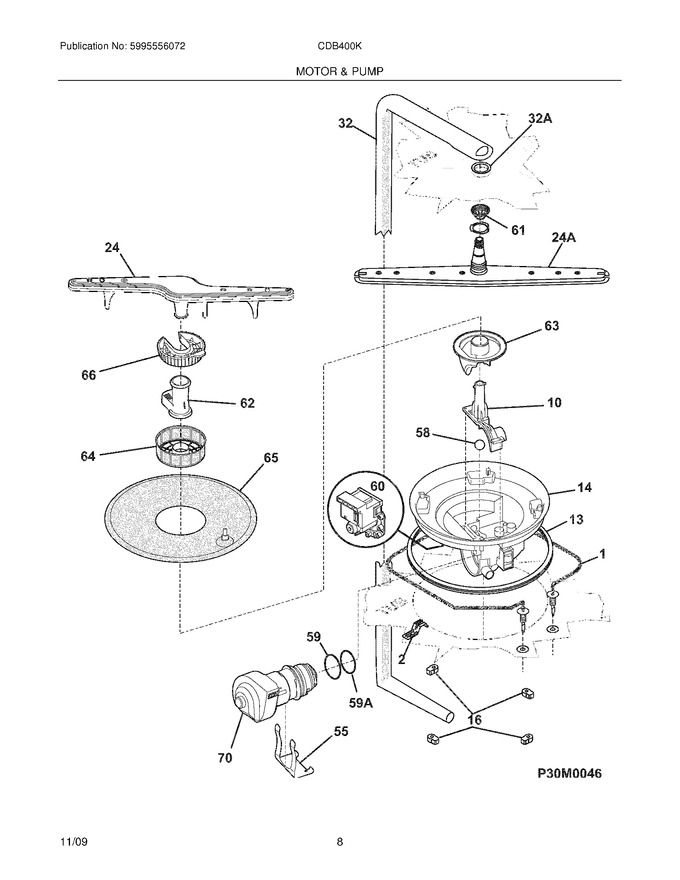

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 154479601 | Bracket,heater ,(2) |
|
$ 33.08 | |||||
| 10 | 154724001 | Cover,volute |
|
Immediately | $ 23.41 | ||||
| 13 | 154246801 | Gasket-sump |
|
$ 57.97 | |||||
| 14 | 154728201 | Sump Assembly |
|
Immediately | $ 69.30 | ||||
| 16 | 154246502 | Retainer, Sump |
|
Immediately | $ 44.89 | ||||
| 24 | 5304517203 | Spray Arm,white ,lower ,w/heat Shield (Replaces: 154568001) |
|
Immediately | $ 46.40 | ||||
| 32 | 154406601 | Tube,delivery |
|
$ 108.41 | |||||
| 55 | 5304534830 | Bracket,motor (Replaces: 154595901) |
|
$ 6.16 | |||||
| 58 | 154246402 | Check Ball |
|
Immediately | $ 62.21 | ||||
| 59 | 154246901 | O-ring,rear |
|
Immediately | $ 63.00 | ||||
| 61 | 154606801 | Nozzle,3rd Level ,spray |
|
$ 7.48 | |||||
| 62 | 5304532235 | Support,spray Arm ,lower (Replaces: 154294101) |
|
Immediately | $ 8.14 | ||||
| 63 | 5304532205 | Base,soil Director (Replaces: 154776101) |
|
Immediately | $ 15.27 | ||||
| 64 | 5304532205 | Filter,soil Director ,white (Replaces: 154252301) |
|
Immediately | $ 15.27 | ||||
| 65 | 140281806020 | Filter-polypro (Replaces: 154252401) |
|
Immediately | $ 9.83 | ||||
| 66 | 154252701 | Trap,glass |
|
Immediately | $ 62.86 | ||||
| 24A | 154313601 | Spray Arm-center |
|
Immediately | $ 49.61 | ||||
| 32A | 154406401 | Gasket,delivery Tube |
|
Immediately | $ 17.18 | ||||
| 59A | 154247001 | O-ring,front |
|
Immediately | $ 63.00 | ||||
| F1 | 154665201 | Element,heater |
|
Immediately | $ 87.74 | ||||
| F24A | 154252001 | Nut,spray Arm ,center |
|
$ 40.45 | |||||
| F60 | A00126401 | Pump Assembly,drain ,w/seal-impeller (Replaces: 154736201) |
|
Immediately | $ 158.89 | ||||
| F70 | 154859201 | Motor & Pump Assy (Replaces: 154594201) |
|
Immediately | $ 423.62 | ||||
| NI | 154297701 | Screw,retainer-thermo |
|
$ 14.96 | |||||
| NI | 154106202 | Nut,heater ,(2) |
|
Immediately | $ 20.35 | ||||
| NI | 154289801 | Shield-heater Terminal |
|
$ 7.33 | |||||
| NI | 154754901 | Screw,sump Mtg ,8-16 ,(4) |
|
Immediately | $ 4.73 | ||||
| NI | 154611101 | Clamp,hose ,1.29`` Open ,worm Gear ,(2) (Replaces: 154106801) |
|
$ 13.39 | |||||
| NI | 5303316032 | Screw,truss Ss ,8 .625 ,(7) |
|
$ 10.45 | |||||
| NI | 807048001 | Flapper,valve ,drain Pump (Replaces: 154617301) |
|
Immediately | $ 9.89 | ||||
| NI | 154741501 | Screw,drain Motor Mtg ,(3) |
|
$ 14.96 | |||||
| NI | 154200601 | Screw,no.10-16 X 3/8 |
|
$ 7.98 |
