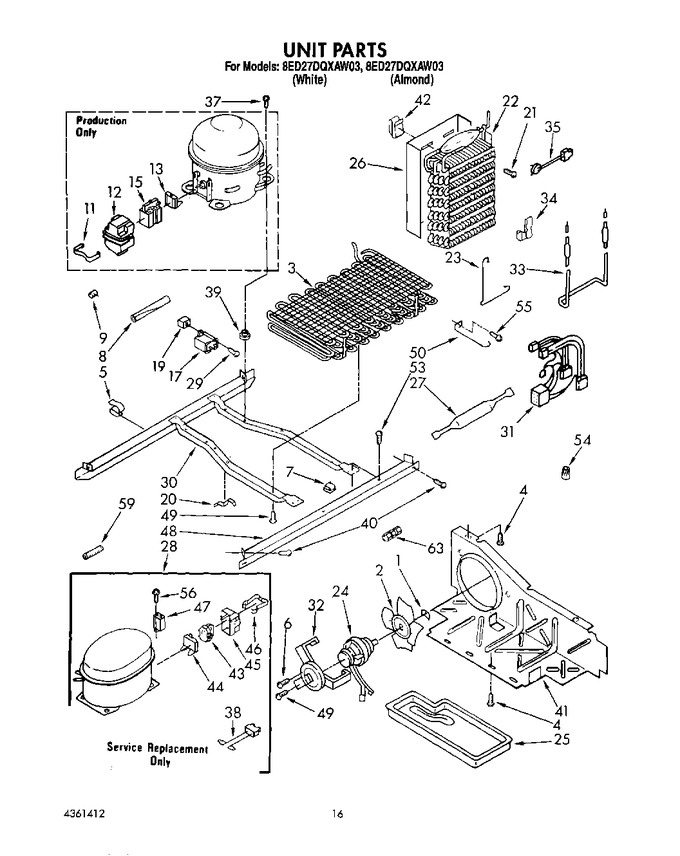

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	2154011		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.06
7	934011		Clip, Tube (3)		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.73
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	2154757		Overload (includes Relay)		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
17	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 7.75
22	2155501		Evaporator		Appelez-nous	-
23	2161324		Clamp		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 88.15
25	1110674		Tray, Evaporator		Appelez-nous	-
26	2149294		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 52.57
28	4317959		Compressor (includes Items 38, 43, 44, 45, 46, 47 & 56) (also Order 876765 Tube Kit)		Appelez-nous	-
29	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
30	2304904		Unit Mounting Frame   (Replaces: 1127934)		Appelez-nous	-
31	2149199		Unit, Harness		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2161323		Heater, Defrost				$ 79.43
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	489387		Screw		Appelez-nous	-
38	WP2172890		Wire, Connector   (Replaces: 1127675)				$ 8.10
39	2162067		Grommet (4)		Appelez-nous	-
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 96.38
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
44	1118841		Overload		Appelez-nous	-
45	1108115		Cover		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	WPW10662129		Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 80.64
49	488624		Screw		Appelez-nous	-
50	1110663		Guard, Fan		Appelez-nous	-
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.47
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 21.16
56	W11693756		Screw   (Replaces: 487240)			Immediately	$ 14.06
59	983659		Spring-tube		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 130.71
63	WP4211117		Union   (Replaces: 2150347)				$ 9.96
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
