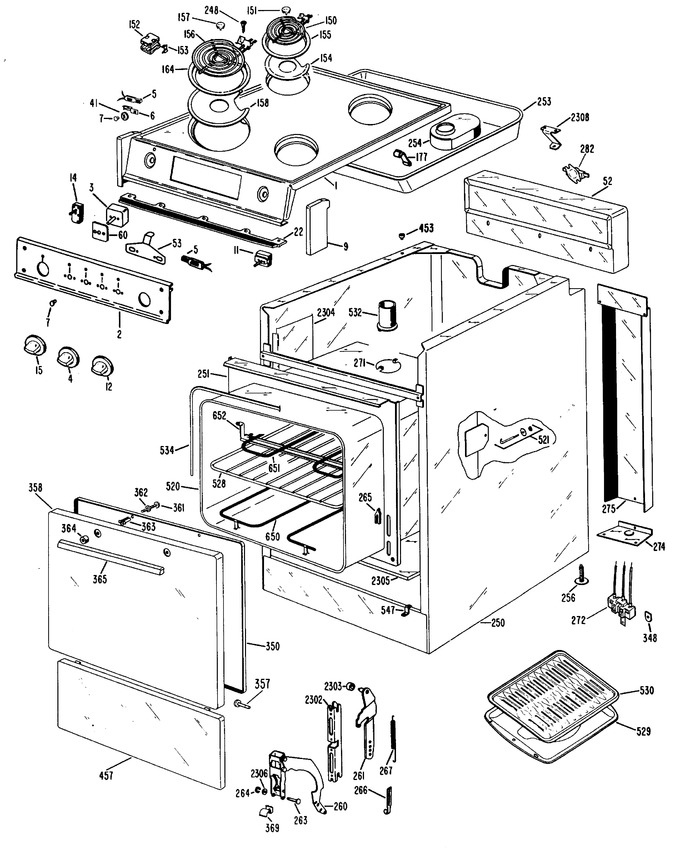

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1379 | Cooktop Bc |
|
- | |||||
| 1 | WB2X1773 | Mtg Brkt Cooktop |
|
- | |||||
| 2 | WB2X3401 | Gasket Trim |
|
- | |||||
| 2 | WB7X6906 | Trim Control |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X439 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X2956 | Clip Mtg Lamp (thermo) |
|
- | |||||
| 6 | WB2X1185 | Clip Mtg Lamp |
|
- | |||||
| 7 | WB25X78 | Jewel |
|
- | |||||
| 9 | WB7X7026 | End Cap Lh |
|
- | |||||
| 9 | WB7X7027 | End Cap Rh |
|
- | |||||
| 11 | WB22X5075 | Switch, Oven |
|
- | |||||
| 12 | WB3X378 | Knob Oven Switch |
|
- | |||||
| 14 | WB2X2954 | Sleeve |
|
- | |||||
| 14 | WB21X5208 | Thermostat |
|
- | |||||
| 15 | WB3X376 | Knob Thermostat |
|
- | |||||
| 22 | WB7X1079 | Deflector |
|
- | |||||
| 41 | WB1X435 | Clip Mtg Jewel |
|
- | |||||
| 52 | WB61X251 | Backsplasher Ha |
|
- | |||||
| 52 | WB61X248 | Backsplasher Wh |
|
- | |||||
| 52 | WB61X252 | Backsplasher Ad |
|
- | |||||
| 53 | WB2X3404 | Clamp Trim |
|
- | |||||
| 60 | WB2X3383 | Seal Switch |
|
- | |||||
| 103 | WB2X1119 | Speednut |
|
- | |||||
| 150 | WB30X359 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 153 | WB2X574 | Clip Insulator |
|
- | |||||
| 154 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 155 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 164 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 177 | WB2X3220 | Clip Lead |
|
- | |||||
| 248 | WB1X500 | Terminal Screw |
|
- | |||||
| 250 | NOT AVAIL | Body |
|
- | |||||
| 251 | WB56X903 | Frame Front |
|
- | |||||
| 251 | WB2X2324 | Spacer |
|
- | |||||
| 253 | WB49X340 | Cooktop Box |
|
- | |||||
| 254 | WB38X63 | Body Vent |
|
- | |||||
| 256 | WB1X5516 | Leveling Leg |
|
- | |||||
| 260 | WB10X128 | Hinge Lever Lh |
|
- | |||||
| 260 | WB10X127 | Hinge Lever Rh |
|
- | |||||
| 261 | WB10X126 | Hinge Support Lh |
|
- | |||||
| 261 | WB10X125 | Hinge Support Rh |
|
- | |||||
| 263 | WB2X1081 | Pin Hinge |
|
- | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X1016 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2499 | Hook Door Spring |
|
- | |||||
| 267 | WB9X113 | Spring Door |
|
- | |||||
| 271 | WB2X1626 | Baffle |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X1774 | Knockout Plate |
|
- | |||||
| 275 | WB59X95 | Guard Terminal |
|
- | |||||
| 282 | WB24X5247 | Temp Limit Switch |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB55X5288 | Door Liner |
|
- | |||||
| 350 | WB2X1772 | Insulation Door |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB56X1416 | Door Panel Wh |
|
- | |||||
| 358 | WB56X1420 | Door Panel Ad |
|
- | |||||
| 358 | WB56X1419 | Door Panel Ha |
|
- | |||||
| 361 | WZ04X0286 | Screw Mtg Handle |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X3025 | Spacer Door |
|
- | |||||
| 364 | WB2X3465 | Spacer |
|
- | |||||
| 365 | WB15X94 | Handle |
|
- | |||||
| 369 | WB2X1867 | Clip Anti-wobble |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 457 | WB56X1425 | Panel Ad |
|
- | |||||
| 457 | WB56X1421 | Panel Wh |
|
- | |||||
| 457 | WB56X1424 | Panel Ha |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 520 | WB2X3417 | Insulation |
|
- | |||||
| 520 | WB53X5094 | Oven Liner |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tube Oven |
|
- | |||||
| 521 | WB9X88 | Hook Pkg |
|
- | |||||
| 528 | WB48X67 | Rack Oven |
|
- | |||||
| 529 | WB49X5379 | Broil Pan Small |
|
- | |||||
| 530 | WB48X47 | Broil Pan Rack Small |
|
- | |||||
| 532 | WB38X5062 | Tube Vent |
|
- | |||||
| 534 | WB2X2058 | Gasket Silicone |
|
- | |||||
| 547 | WB2X1771 | Bracket Panel |
|
- | |||||
| 650 | WB44X190 | Bake Unit 208/240v |
|
- | |||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X134) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 2302 | WB10X124 | Base Rh & Lh |
|
- | |||||
| 2303 | WB2X2498 | Roller |
|
- | |||||
| 2304 | WB49X150 | Channel Air |
|
- | |||||
| 2305 | WB55X165 | Guard Insulation |
|
- | |||||
| 2306 | WZ10X0017 | Washer |
|
- | |||||
| 2308 | WB2X2474 | Brkt Mtg Cooktop |
|
- | |||||
| 32767 | 49-4974 | Manual Users |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 03-9592 | Install Instructions |
|
- |
