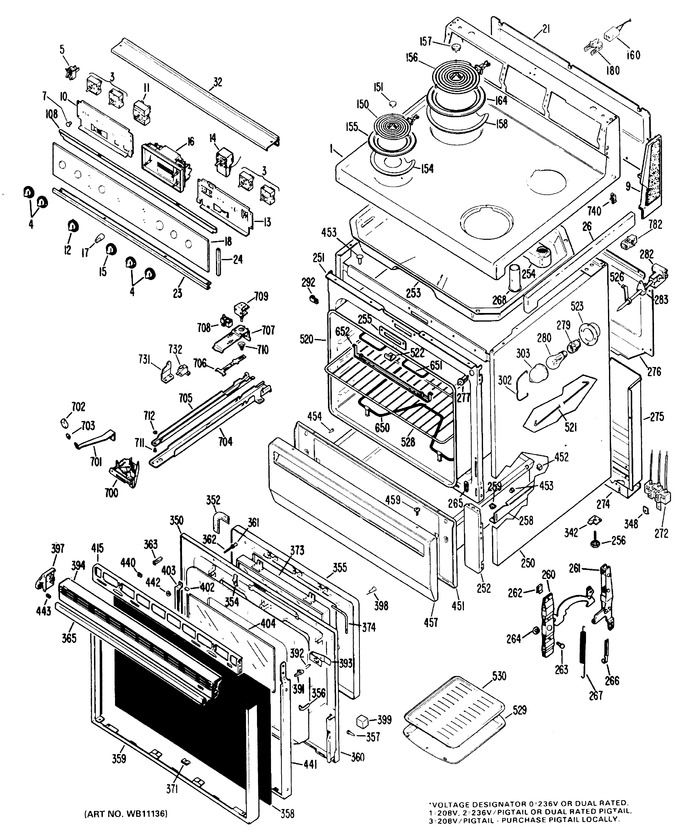

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5341 | Cooktop Ha |
|
- | |||||
| 1 | WB62X5342 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5340 | Cooktop Wh |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X480 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X7698 | Lamp Pilot 250v |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5053 | Jewel |
|
- | |||||
| 9 | WB7X6895 | End Cap Lh |
|
- | |||||
| 9 | WB2X6426 | Pad End Cap |
|
- | |||||
| 9 | WB7X6894 | End Cap Rh |
|
- | |||||
| 10 | WB2X7695 | Bracket Instrument Lh |
|
- | |||||
| 11 | WB22X5100 | Switch, Oven |
|
- | |||||
| 12 | WB3X479 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X7703 | Bracket Instrument Rh |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 15 | WB3X463 | Knob Thermostat |
|
- | |||||
| 16 | WB19X142 | Timer Digital |
|
- | |||||
| 17 | WB3X459 | Knob Timer |
|
- | |||||
| 18 | WB2X3232 | Pad Crystal |
|
- | |||||
| 18 | WB36X5579 | Crystal |
|
- | |||||
| 21 | WB49X335 | Cover Back |
|
- | |||||
| 23 | WB7X6890 | Trim Crystal Lower |
|
- | |||||
| 24 | WB7X5590 | Trim Crystal End |
|
- | |||||
| 26 | WB7X6789 | Trim Cooktop Rh |
|
- | |||||
| 26 | WB7X6790 | Trim Cooktop Lh |
|
- | |||||
| 32 | WB7X6896 | Trim Top |
|
- | |||||
| 108 | WB2X7615 | Bracket Support |
|
- | |||||
| 150 | WB30X5071 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 154 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 155 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X5072 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 160 | WB17X5094 | Receptacle Asm |
|
- | |||||
| 164 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 180 | WB2X7618 | Bracket Mtg Receptacle |
|
- | |||||
| 250 | NOT AVAIL | Body |
|
- | |||||
| 251 | WB56X6050 | Frame Front |
|
- | |||||
| 252 | WB49X5399 | Filler Panel Wh |
|
- | |||||
| 252 | WB49X5400 | Filler Panel Ha |
|
- | |||||
| 252 | WB49X5401 | Filler Panel Ad |
|
- | |||||
| 253 | WB49X5384 | Box Cooktop |
|
- | |||||
| 254 | WB38X50 | Vent Body |
|
- | |||||
| 255 | WB7X552 | Trim Latch |
|
- | |||||
| 256 | WB2X7701 | Leveling Leg |
|
- | |||||
| 258 | WB39X51 | Drawer Guide Rh & Lh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB10X5148 | Hinge Lever Asm Rh & Lh |
|
- | |||||
| 261 | WB10X149 | Hinge Support Lh |
|
- | |||||
| 261 | WB10X148 | Hinge Support Rh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X143 | Spring Door |
|
- | |||||
| 268 | WB29X5013 | Smoke Elim & Tube Asm |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB2X3137 | Guard Terminal |
|
- | |||||
| 276 | WB49X336 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 292 | WB1X386 | Clamp Harness |
|
- | |||||
| 302 | WB2X7694 | Bail |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 342 | WB2X7700 | Retainer Leg |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB2X3047 | Reflector Liner |
|
- | |||||
| 350 | WB55X5292 | Door Liner |
|
- | |||||
| 350 | WB2X3134 | Insulation Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X5336 | Panel Inner |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 356 | WB2X6574 | Clip Trim (4) |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X5560 | Glass Black |
|
- | |||||
| 358 | WB2X7189 | Reflector Panel |
|
- | |||||
| 359 | WB7X6886 | Trim Door |
|
- | |||||
| 360 | WB55X378 | Guard Insulation |
|
- | |||||
| 361 | WB1X5731 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X3030 | Spacer Door |
|
- | |||||
| 365 | WB15X5155 | Handle Door |
|
- | |||||
| 371 | WB1X5732 | Speednut |
|
- | |||||
| 373 | WB36X448 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 391 | WB2X3052 | Toggle |
|
- | |||||
| 392 | WB2X5217 | Cam Link |
|
- | |||||
| 393 | WB9X5083 | Cam Spring |
|
- | |||||
| 394 | WB7X6889 | Trim Top |
|
- | |||||
| 397 | WB1X5754 | Screw Mtg End Cap |
|
- | |||||
| 397 | WB7X6888 | End Cap Asm Lh |
|
- | |||||
| 397 | WB7X6887 | End Cap Asm Rh |
|
$ 93.52 | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 402 | WB1X591 | Speednut |
|
- | |||||
| 403 | WB2X7188 | Bracket Window |
|
- | |||||
| 404 | WB36X5477 | Crystal Window |
|
- | |||||
| 415 | WB2X7608 | Brace Top |
|
- | |||||
| 440 | WB1X5736 | Speednut |
|
- | |||||
| 441 | WB2X7610 | Brace Side Rh |
|
- | |||||
| 441 | WB2X7609 | Brace Side Lh |
|
- | |||||
| 442 | WB1X5743 | Speednut |
|
- | |||||
| 443 | WB1X5734 | Clip End Cap |
|
- | |||||
| 451 | WB58X5011 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 454 | WB2X584 | Bumper |
|
- | |||||
| 457 | WB56X6090 | Drawer Panel Wh |
|
- | |||||
| 457 | WB56X6091 | Drawer Panel Ha |
|
- | |||||
| 457 | WB56X6092 | Drawer Panel Ad |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tube Oven |
|
- | |||||
| 520 | WB53X5112 | Oven Liner |
|
- | |||||
| 520 | WB2X6496 | Insulation |
|
- | |||||
| 521 | WB9X88 | Hook Package |
|
- | |||||
| 522 | WB2X3393 | Trim Clip |
|
- | |||||
| 523 | WB2X7693 | Housing Receptacle |
|
- | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 528 | WB48X5044 | Rack Oven |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5036 | Latch |
|
- | |||||
| 701 | WB15X5133 | Handle Latch |
|
- | |||||
| 702 | WB3X5681 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X7707 | Channel Latch |
|
- | |||||
| 705 | WB2X7710 | Channel Locking |
|
- | |||||
| 706 | WB2X7708 | Pawl Locking |
|
- | |||||
| 707 | WB2X7709 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 731 | WB2X7711 | Bracket Switch |
|
- | |||||
| 732 | WB24X5235 | Latch Release Switch |
|
- | |||||
| 740 | WB2X7226 | Clip Wire |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 851 | WB1X5691 | Screw |
|
- | |||||
| 32767 | 31-0811 | Install Instructions |
|
- | |||||
| 32767 | 31-0813 | Install Instructions |
|
- | |||||
| 32767 | 31-0810 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 31-0638 | Install Instructions |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
