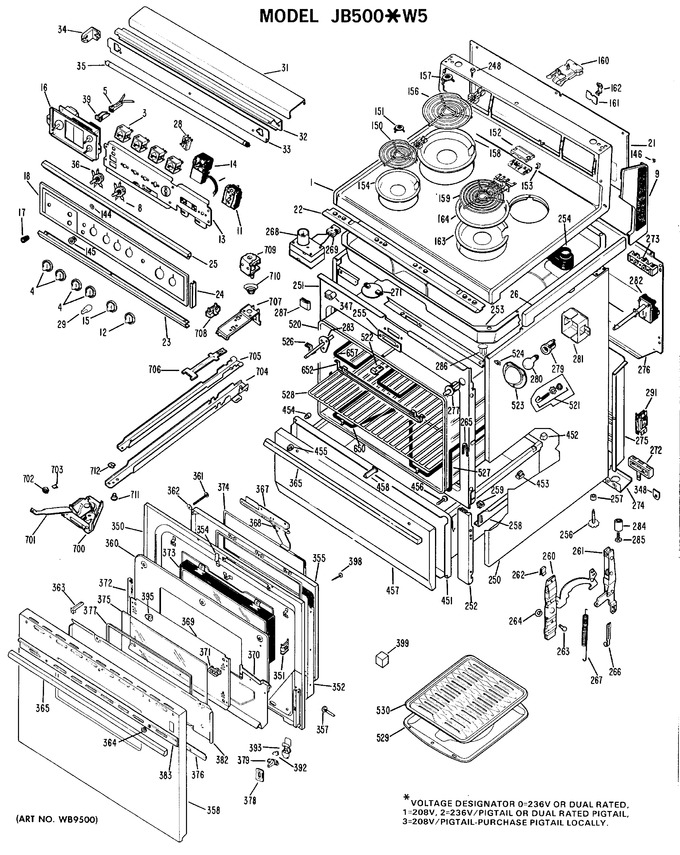

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1480 | Cooktop Cf |
|
- | |||||
| 1 | WB62X1479 | Cooktop Wh |
|
- | |||||
| 1 | WB62X1481 | Cooktop Fa |
|
- | |||||
| 1 | WB62X1483 | Cooktop Ad |
|
- | |||||
| 1 | WB62X1482 | Cooktop Ha |
|
- | |||||
| 3 | WB21X5217 | Switch Infinite Control |
|
- | |||||
| 3 | WB21X239 | Switch, Inf Surface Unit |
|
- | |||||
| 3 | WB2X6494 | Barrier |
|
- | |||||
| 4 | WB3X480 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 8 | WB24X218 | Switch, Latch Release |
|
- | |||||
| 9 | WB7X6763 | End Cap Lh |
|
- | |||||
| 9 | WB7X6762 | End Cap Rh |
|
- | |||||
| 9 | WB2X7022 | Pin Spring Dowel |
|
- | |||||
| 9 | WB2X6426 | Pad Transformer |
|
- | |||||
| 11 | WB22X5100 | Switch P7 Oven Rotary |
|
- | |||||
| 12 | WB3X479 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X3266 | Bracket Instrument |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6454 | Sleeve |
|
- | |||||
| 15 | WB3X463 | Thermo Knob |
|
- | |||||
| 16 | WB19X142 | Timer Digital |
|
- | |||||
| 17 | WB3X459 | Knob Timer |
|
- | |||||
| 18 | WB36X548 | Crystal |
|
- | |||||
| 18 | WB2X3232 | Pad |
|
- | |||||
| 21 | WB49X335 | Cover Back |
|
- | |||||
| 22 | WB7X1061 | Deflector |
|
- | |||||
| 23 | WB7X1021 | Trim Crystal Lower |
|
- | |||||
| 24 | WB7X5590 | Trim Crystal End |
|
- | |||||
| 25 | WB7X1020 | Trim Crystal Upper |
|
- | |||||
| 26 | WB7X1059 | Trim Cooktop Rh |
|
- | |||||
| 26 | WB7X1060 | Trim Cooktop Lh |
|
- | |||||
| 28 | WB24X5011 | Switch, Select 4-6-8" |
|
- | |||||
| 29 | WB3X5486 | Knob Selector Switch |
|
- | |||||
| 31 | WB7X1016 | Hood |
|
- | |||||
| 32 | WB2X3009 | Cover Top |
|
- | |||||
| 33 | WB2X3010 | Bracket Lamp |
|
- | |||||
| 34 | WB8X188 | Lampholder |
|
- | |||||
| 36 | WB24X216 | Switch, "f" Lamp |
|
- | |||||
| 39 | WB2X6239 | Surface Light Bracket |
|
- | |||||
| 144 | WB1X588 | Lockwasher Switch |
|
- | |||||
| 145 | WB1X5517 | Trim Switch |
|
- | |||||
| 146 | WB1X271 | Nut Mtg Cap |
|
- | |||||
| 150 | WB30X218 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X2018 | Unit Terminal Block |
|
- | |||||
| 153 | WB2X574 | 3 In 1 Insulator Clip |
|
- | |||||
| 154 | WB31X5010 | Pan Ring 6" Chrome |
|
- | |||||
| 156 | PS240M | Surface Unit, 8" (Replaces: WB30X219) |
|
Immediately | $ 44.95 | ||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB31X5011 | Pan Ring 8" Chrome |
|
- | |||||
| 159 | WB30X346 | Surface Unit, 4-6-8" |
|
- | |||||
| 160 | WB17X5051 | Receptacle Asm |
|
- | |||||
| 160 | WB1X5355 | Screw Recept Terminal |
|
- | |||||
| 161 | WB2X6171 | Insulator |
|
- | |||||
| 162 | WB2X6172 | Clip Insulator |
|
- | |||||
| 163 | WB32X5036 | Pan Unit 8" Chrome |
|
$ 18.70 | |||||
| 164 | WB31X5012 | Trim Ring 8" |
|
- | |||||
| 248 | WB1X500 | Terminal Screw |
|
- | |||||
| 251 | WB56X1349 | Frame Front |
|
- | |||||
| 252 | WB49X322 | Filler Panel |
|
- | |||||
| 253 | WB49X341 | Box Cooktop |
|
- | |||||
| 254 | WB38X50 | Vent Body |
|
- | |||||
| 255 | WB7X552 | Trim Latch |
|
- | |||||
| 256 | WB1X450 | Leg Leveling |
|
- | |||||
| 257 | WB2X3386 | Sleeve |
|
- | |||||
| 258 | WB39X51 | Drawer Guide Rh & Lh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB10X147 | Hinge Lever Asm |
|
- | |||||
| 261 | WB10X148 | Hinge Spt Rh |
|
- | |||||
| 261 | WB10X149 | Hinge Spt Lh |
|
- | |||||
| 262 | WB2X3193 | Clip Shim |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Ring Retaining |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X143 | Spring Door |
|
- | |||||
| 268 | WB29X47 | Smoke Eliminator |
|
- | |||||
| 269 | WB2X3388 | Terminal Block |
|
- | |||||
| 271 | WB2X1626 | Baffle |
|
- | |||||
| 272 | WB17X168 | Terminal Block-power |
|
- | |||||
| 273 | WB17X167 | Block Term Distribution |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB2X3137 | Guard Terminal |
|
- | |||||
| 276 | WB49X336 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 281 | WB2X3466 | Guard Lamp |
|
- | |||||
| 282 | WB24X175 | Switch, Thermal |
|
- | |||||
| 283 | WB2X3163 | Gasket-tls |
|
$ 22.50 | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 284 | WB2X3330 | Foot |
|
- | |||||
| 285 | WZ04X0394 | Screw |
|
- | |||||
| 286 | WB2X3394 | Plug Button |
|
- | |||||
| 287 | WB1X386 | Clamp Harness |
|
- | |||||
| 291 | WB2X1546 | Ballast |
|
- | |||||
| 347 | WB2X1742 | Clamp Harness |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB55X377 | Door Liner |
|
- | |||||
| 350 | WB2X3134 | Insulation Door |
|
- | |||||
| 350 | WB2X3047 | Reflector Liner |
|
- | |||||
| 351 | WB2X6270 | Spacer Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X424 | Panel Inner |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 357 | WB1X558 | Screw Nail Point |
|
- | |||||
| 358 | WB56X1412 | Door Panel Cf |
|
- | |||||
| 358 | WB56X1411 | Door Panel Wh |
|
- | |||||
| 358 | WB56X1415 | Door Panel Ad |
|
- | |||||
| 358 | WB56X1414 | Door Panel Ha |
|
- | |||||
| 358 | WB56X1413 | Door Panel Fa |
|
- | |||||
| 360 | WB55X378 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0415 | Screw Mt. Handle |
|
- | |||||
| 362 | WB1X119 | Washer Contoured |
|
- | |||||
| 363 | WB2X6204 | Spacer Panel |
|
- | |||||
| 364 | WB2X3258 | Grommet Handle |
|
- | |||||
| 365 | WB15X147 | Handle |
|
- | |||||
| 367 | WB2X3045 | Cover - Guard Asm. |
|
- | |||||
| 368 | WB9X128 | Spring - Guard |
|
- | |||||
| 369 | WB55X401 | Shield Window |
|
- | |||||
| 370 | WB15X144 | Handle Shield Lh |
|
- | |||||
| 370 | WB15X143 | Handle Shield Rh |
|
- | |||||
| 371 | WB2X3040 | Slide Shield |
|
- | |||||
| 372 | WB2X3041 | Shield Track - Spring As |
|
- | |||||
| 372 | WB2X3042 | Shield Track - Spring As |
|
- | |||||
| 373 | WB36X448 | Window |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 375 | WB36X430 | Crystal Window |
|
- | |||||
| 376 | WB2X2978 | Clip Crystal |
|
- | |||||
| 377 | WB7X1031 | Trim Crystal |
|
- | |||||
| 378 | WB7X5022 | Trim Plate Lower Oven |
|
- | |||||
| 379 | WB2X5410 | Cam |
|
- | |||||
| 382 | WB2X3139 | Baffle Window |
|
- | |||||
| 383 | WB7X1101 | Trim Handle |
|
- | |||||
| 392 | WB2X5217 | Cam Link |
|
- | |||||
| 393 | WB9X5083 | Cam Spring |
|
- | |||||
| 395 | WB2X3053 | Clip Mtg Door Trims |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 451 | WB58X50 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X841 | Slide Bottom |
|
- | |||||
| 454 | WB2X584 | Bumper |
|
- | |||||
| 455 | WB2X3135 | Handle Spacer |
|
- | |||||
| 456 | WZ04X0395 | Handle Screw |
|
- | |||||
| 457 | WB56X1400 | Drawer Panel Ad |
|
- | |||||
| 457 | WB56X1396 | Drawer Panel Wh |
|
- | |||||
| 457 | WB56X1397 | Drawer Panel Cf |
|
- | |||||
| 457 | WB56X1398 | Drawer Panel Fa |
|
- | |||||
| 457 | WB56X1399 | Drawer Panel Ha |
|
- | |||||
| 458 | WB2X3387 | Spacer Panel |
|
- | |||||
| 520 | WB2X6496 | Insulation |
|
- | |||||
| 520 | WB53X237 | Oven Liner |
|
- | |||||
| 521 | WB9X88 | Lockwasher |
|
- | |||||
| 522 | WB2X3393 | Trim Clip |
|
- | |||||
| 523 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 524 | WB2X1659 | Speednut |
|
- | |||||
| 526 | WB2X3165 | Hanger-tls |
|
- | |||||
| 527 | WB44X186 | Mullion Unit |
|
- | |||||
| 527 | WB2X3253 | Mullion Unit Clip |
|
- | |||||
| 528 | WB48X5044 | Oven Rack |
|
- | |||||
| 529 | WB49X88 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1810 | Support Broil Unit |
|
- | |||||
| 700 | WB14X36 | Latch Assembly |
|
- | |||||
| 701 | WB15X142 | Handle |
|
- | |||||
| 702 | WB3X322 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X3174 | Channel Latch |
|
- | |||||
| 705 | WB2X3175 | Channel Locking |
|
- | |||||
| 706 | WB2X3159 | Locking Pawl Asm |
|
- | |||||
| 707 | WB2X3176 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring-plunger |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 712 | WB2X3147 | Barrier |
|
- | |||||
| 9999 | 49-4320 | Manual Users |
|
- |
