SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


4 - Component Group

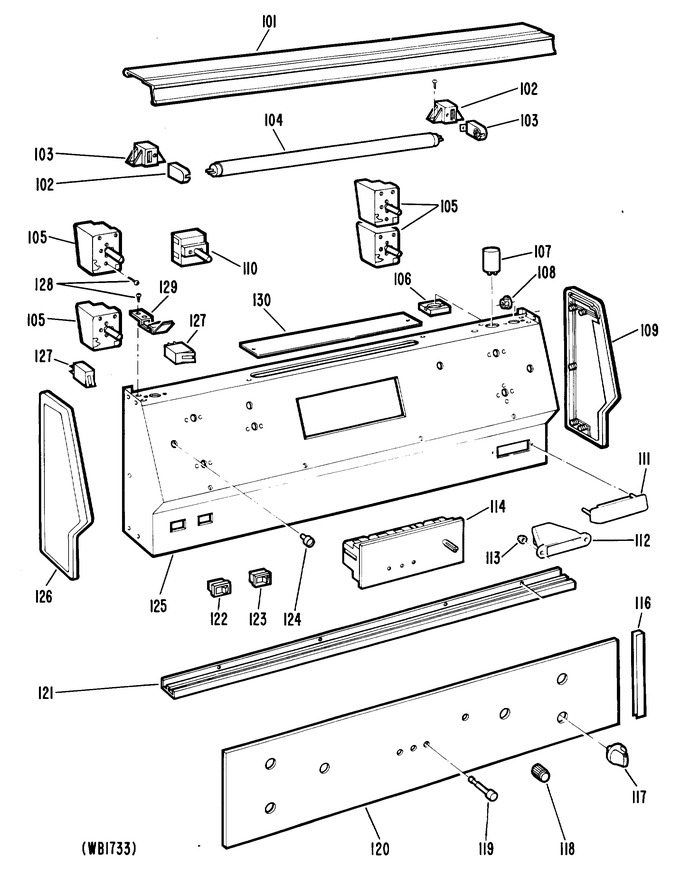

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	WB2X7886		Channel-latch		Appelez-nous	-
101	WB61X297		Cover-top		Appelez-nous	-
102	WB2X4941		Bracket-lampholder-rh		Appelez-nous	-
102	WB2X4942		Bracket-lampholder-lh		Appelez-nous	-
103	WB8X188		Lampholder		Appelez-nous	-
104	WB2X4666		Lamp-fluorescent		Appelez-nous	-
105	WB21X5258		Infinite-sw-1400w		Appelez-nous	-
105	WB23X82		Infinite-sw-2000w		Appelez-nous	-
105	WB23X83		Switch-sensi-temp		Appelez-nous	-
106	WB8X267		Socket-starter		Appelez-nous	-
107	BUYLOCALLY		Starter		Appelez-nous	-
108	WB1X980		Palnut-mtng-end-cap		Appelez-nous	-
109	WB7X1513		End Cap-rh		Appelez-nous	-
110	WB22X112		Switch-selector		Appelez-nous	-
111	WB61X299		Cover-vent		Appelez-nous	-
112	WB38X86		Top-vent		Appelez-nous	-
113	WB1X981		Palnut-mtng-vent-top		Appelez-nous	-
114	WB19X230		Timer		Appelez-nous	-
116	WB7X1514		Trim-side		Appelez-nous	-
117	WB3X706		Knob-infinite-sw		Appelez-nous	-
117	WB3X705		Knob-sensi-switch		Appelez-nous	-
118	WB3X704		Knob-timer		Appelez-nous	-
119	WB3X707		Set-button-timer		Appelez-nous	-
121	WB7X1515		Trim-bottom		Appelez-nous	-
122	WB24X389		Sw-fluorescent-lamp		Appelez-nous	-
122	WB1X5373		Nut-trim		Appelez-nous	-
123	WB24X390		Sw-oven-lamp		Appelez-nous	-
124	WB36X727		Lens-pilot-light		Appelez-nous	-
125	WB61X308		Control Panel-white		Appelez-nous	-
126	WB7X1512		End-cap-lh		Appelez-nous	-
127	WB25X89		Pilot-light-250v		Appelez-nous	-
127	WB25X88		Pilot-light-125v		Appelez-nous	-
128	WB1X982		Screw		Appelez-nous	-
129	WB2X4944		Retainer-crystal		Appelez-nous	-
129	WB2X4943		Retainer-crystal		Appelez-nous	-
130	WB61X298		Cover-fuse-opening		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
