Diagram for 1 - Component Group
1 - Component Group


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WB62X1523 Cooktop Ha Appelez-nous -
1 WB62X1520 Cooktop Wh Appelez-nous -
1 WB62X1524 Cooktop Ad Appelez-nous -
3 5500-200 Switch, Inf Surface Unit   (Replaces: WB21X5243) In-Stock Immediately $ 60.94

4 WB3X5624 Knob Surface Unit Appelez-nous -
5 WB2X1608 Neon Lamp 118v Special Order $ 31.65

5 WB2X3468 Neon Lamp 240v Appelez-nous -
9 WB7X6762 End Cap Rh Appelez-nous -
9 WB2X6426 Pad End Cap Appelez-nous -
9 WB7X6763 End Cap Lh Appelez-nous -
13 WB2X3483 Pad Cover Appelez-nous -
13 WB2X3477 Bracket Instrument Appelez-nous -
14 WB2X6494 Barrier Appelez-nous -
18 WB2X5594 Bumper Appelez-nous -
18 WB2X3232 Pad Crystal Appelez-nous -
21 WB49X395 Cover Back Appelez-nous -
23 WB7X1021 Trim Crystal Lower Appelez-nous -
23 WB2X3480 Seal Appelez-nous -
24 WB7X5590 Trim Crystal End Appelez-nous -
25 WB7X1020 Trim Crystal Upper Appelez-nous -
26 WB7X6790 Trim Cooktop Lh Appelez-nous -
26 WB7X6789 Trim Cooktop Rh Appelez-nous -
31 WB7X6776 Hood Lamp Appelez-nous -
32 WB2X3449 Cover Top Appelez-nous -
33 WB2X3476 Bracket Lamp Appelez-nous -
34 WB8X188 "f" Lamp Socket Rh & Lh Appelez-nous -
36 WB24X216 Switch, "f" Lamp Appelez-nous -
39 WB2X6239 Bracket Lamp Appelez-nous -
77 WB36X578 Diffuser Lamp Appelez-nous -
78 WB2X3484 Bracket Logic Board Appelez-nous -
79 WB36X5445 Crystal Circuit Asm Appelez-nous -
80 WB2X3478 Bracket Crystal Appelez-nous -
81 WB4X82 Dial Asm Surface Unit Appelez-nous -
82 WB2X3479 Cover Lamp Appelez-nous -
83 WB27X5188 Smart Board Crystal Appelez-nous -
84 WB27X5187 Smart Board Control Appelez-nous -
85 WB17X176 Wire Harness Appelez-nous -
86 WB17X175 Connector Block Appelez-nous -
144 WB1X588 Lockwasher Switch Appelez-nous -
145 WB1X5481 Trim Switch Appelez-nous -
150 WB30X5071 Surface Unit, 6" Appelez-nous -
151 WB32X52 Center Trim 6" Unit Appelez-nous -
154 WB32X5051 Pan 6" Porc. Gray Appelez-nous -
155 WB31X5015 Trim Ring 6" Appelez-nous -
156 WB30X5072 Surface Unit, 8" Appelez-nous -
157 WB32X51 Center Trim 8" Unit Appelez-nous -
158 WB32X5052 Pan 8" Porc. Gray Appelez-nous -
160 WB17X5094 Receptacle Asm Appelez-nous -
164 WB31X5012 Trim Ring 8" Appelez-nous -
180 WB2X7618 Bracket Mounting Appelez-nous -
251 WB56X6050 Frame Front Appelez-nous -
252 WB49X322 Filler Panel Appelez-nous -
253 WB49X341 Box Cooktop Appelez-nous -
254 WB38X50 Vent Body Appelez-nous -
255 WB7X552 Trim Latch Appelez-nous -
256 WR2X4978 Leveling Leg Appelez-nous -
258 WB39X51 Drawer Guide Rh & Lh Appelez-nous -
259 WB2X831 Slide Guide Appelez-nous -
260 WB10X5148 Hinge Lever Asm Rh & Lh Appelez-nous -
261 WB10X148 Hinge Support Rh Appelez-nous -
261 WB10X149 Hinge Support Lh Appelez-nous -
263 WG02A00596 Pin Hinge   (Replaces: WB2X6195) Special Order $ 4.20

264 WB2X1082 Pin Hinge Retainer Appelez-nous -
265 WB2X6342 Guide Hinge Lever Appelez-nous -
266 WB2X2506 Hook Door Spring Appelez-nous -
267 WB9X143 Spring Door Appelez-nous -
268 WB29X5013 Smoke Elim & Tube Asm Appelez-nous -
272 WB17X5075 Block Term Installation Appelez-nous -
273 WB17X167 Block Term Distribution Appelez-nous -
274 WB2X1908 Knockout Plate Appelez-nous -
275 WB49X397 Guard Terminal Appelez-nous -
276 WB49X396 Cover Back Appelez-nous -
277 WB24X105 Switch, Oven Light Appelez-nous -
279 WB8X191 Receptacle Appelez-nous -
280 WX12X1510 Lamp 40w Appliance Appelez-nous -
281 WB2X3466 Guard Lamp Appelez-nous -
282 WB24X5164 Switch, Thermal Appelez-nous -
283 WB2X3163 Gasket Special Order $ 22.50

283 WB2X3164 Plate Appelez-nous -
290 WB21X5224 Thermostat & Brkt Asm Appelez-nous -
291 WB2X1546 Ballast Appelez-nous -
292 WB1X386 Clamp Harness Appelez-nous -
303 WG02F04576 Glass Oven Lamp   (Replaces: WB36X389) Special Order $ 20.65

330 WB49X394 Baffle Air Appelez-nous -
331 WB20X60 Transformer Appelez-nous -
332 WB21X158 Sensor, Oven Appelez-nous -
333 WB49X398 Cover Access Appelez-nous -
334 WB2X3481 Bracket Relay Appelez-nous -
335 WB21X5222 Relay Latch Appelez-nous -
336 WB21X5221 Relay Cycling Appelez-nous -
337 WB21X5220 Relay Clean & Broil Appelez-nous -
338 WB2X3482 Dampener Acoustical Appelez-nous -
339 WB27X5217 Varistor Board Asm Appelez-nous -
342 WB2X7524 Retainer Leg Appelez-nous -
348 WB2X646 Plate Ground Appelez-nous -
350 WB55X5292 Door Liner Appelez-nous -
350 WB2X3047 Reflector Liner Appelez-nous -
350 WB2X3134 Insulation Door Appelez-nous -
352 WB2X3138 Gasket Door Appelez-nous -
354 WB9X154 Strike Spring Appelez-nous -
355 WB2X2276 Reflector Foil Appelez-nous -
355 WB55X5293 Panel Inner Appelez-nous -
356 WB2X6574 Clip Trim (4) Appelez-nous -
357 WB1X558 Screw Appelez-nous -
358 WB2X7189 Reflector Panel Appelez-nous -
358 WB36X5560 Glass Black Appelez-nous -
359 WB7X6886 Trim Door Appelez-nous -
360 WB55X378 Guard Insulation Appelez-nous -
361 WB1X5731 Screw Appelez-nous -
362 WB1X119 Washer Screw Appelez-nous -
363 WB2X3030 Spacer Door Appelez-nous -
365 WB15X5155 Handle Door Appelez-nous -
371 WB1X5732 Speednut Appelez-nous -
373 WB36X448 Window Pack Appelez-nous -
374 WB2X3048 Gasket Window Appelez-nous -
386 WB15X5124 Handle Drawer Appelez-nous -
391 WB2X3052 Toggle Appelez-nous -
392 WB2X5217 Cam Link Appelez-nous -
393 WB9X5083 Cam Spring Appelez-nous -
394 WB7X6889 Trim Top Appelez-nous -
397 WB7X6887 End Cap Asm Rh Special Order $ 93.52

397 WB7X6888 End Cap Asm Lh Appelez-nous -
397 WZ04X0384 Screw Mtg End Cap Appelez-nous -
398 WB1X600 Screw Shoulder Appelez-nous -
399 WB2X3285 Pad Socket Appelez-nous -
402 WB1X591 Speednut Appelez-nous -
403 WB2X7188 Bracket Window Appelez-nous -
404 WB36X5477 Crystal Window Appelez-nous -
415 WB2X7608 Brace Top Appelez-nous -
440 WB1X5736 Speednut Appelez-nous -
441 WB2X7610 Brace Side Rh Appelez-nous -
441 WB2X7609 Brace Side Lh Appelez-nous -
442 WB1X5743 Speednut Appelez-nous -
443 WB1X5734 Clip End Cap Appelez-nous -
451 WB58X50 Drawer Asm Appelez-nous -
452 WB2X840 Slide Top Appelez-nous -
453 WB2X7654 Slide Bottom Appelez-nous -
453 WB2X3394 Plug Button Appelez-nous -
457 WB56X6029 Panel Drawer Blk Appelez-nous -
458 WB7X6885 Trim Drawer Appelez-nous -
459 WB1X537 Screw Appelez-nous -
460 WB2X7607 Bracket Appelez-nous -
461 WB1X593 Screw Mtg Clip Appelez-nous -
520 WB53X5099 Oven Liner Appelez-nous -
520 WB2X6496 Insulation Appelez-nous -
521 WB9X88 Hook Package Appelez-nous -
522 WB2X7656 Clip Trim Appelez-nous -
523 WG02F04576 Lamp Cover Asm   (Replaces: WB36X192) Special Order $ 20.65

526 WB2X3165 Hanger Appelez-nous -
528 WB48X5044 Rack Oven Appelez-nous -
529 WB49X5380 Broil Pan Appelez-nous -
530 WB48X5002 Broiler Pan Rack Appelez-nous -
536 WB20X56 Receptacle Asm Appelez-nous -
537 WB20X61 Probe Appelez-nous -
650 UB592 Bake Unit 208/240v   (Replaces: WB44X5082) In-Stock Immediately $ 49.95

651 UT316 Broil Unit 208/240v   (Replaces: WB44X185) In-Stock Immediately $ 49.95

652 WB2X1452 Support Broil Appelez-nous -
700 WB14X5035 Latch Appelez-nous -
701 WB15X5133 Handle Latch Appelez-nous -
702 WB3X5681 Knob Latch Appelez-nous -
703 WG02A00753 Retainer Knob   (Replaces: WB2X2030) Special Order $ 4.20

704 WB2X3174 Channel Latch Appelez-nous -
705 WB2X3486 Channel Locking Appelez-nous -
706 WB2X3487 Clip Pawl Appelez-nous -
706 WB2X3485 Pawl Locking Appelez-nous -
707 WB2X3176 Plate Mounting Appelez-nous -
708 WB24X183 Switch, Latch Appelez-nous -
709 WB24X197 Solenoid Appelez-nous -
710 WB9X148 Spring Appelez-nous -
711 WB2X6212 Pivot Stud Appelez-nous -
712 WB2X1800 Retainer Ring Appelez-nous -
713 WB24X5155 Switch Appelez-nous -
714 WB2X3475 Bracket Switch Appelez-nous -
715 WB2X3488 Pin Guide Appelez-nous -
716 WB2X3489 Crowbar Appelez-nous -
740 WB2X7226 Clip Wire Appelez-nous -
740 WB2X7066 Clip Wire(natural) Large Appelez-nous -
782 WB17X5060 Terminal Blk Asm (2 Pin) Appelez-nous -
851 WB1X5691 Screw Appelez-nous -
1222 WB2X6780 Grommet Isolation Appelez-nous -
1416 WB2X6910 Clip Mtg Duct Appelez-nous -
1458 WB17X5061 Terminal Blk Asm (3 Pin) Appelez-nous -
32767 WS01A02255 Scr 8-18 Ba Ihw 3/8 S   (Replaces: WB1X536) Special Order $ 3.97

32767 49-4715 Manual Users Appelez-nous -
32767 WZ04X0218 Scr 6-20 Ab Ph 3/8 S Appelez-nous -
32767 WZ04X0345 Screw Appelez-nous -
32767 WB9X88 Lockwasher Appelez-nous -
32767 WZ04X0396 Scr 10-16 B Hxw 1/4 S Appelez-nous -
32767 WZ04X0394 Screw Appelez-nous -
32767 31-0399 Pm Manual Mini Appelez-nous -
32767 WZ02X0528 Scr 8-32 M Phr 3/16 S Appelez-nous -
32767 WB1X448 Washer Appelez-nous -
32767 WB2X1659 Speednut Appelez-nous -
32767 WZ06X0038 Scr 8-18 Ab Hxw 5/8 S Appelez-nous -
32767 WB1X422 Scr 8-18 T Ihw 1/2 S Appelez-nous -
32767 WZ07X0029 Nut Appelez-nous -
32767 WZ04X0397 Scr 6-32 C Flr 5/16 S Appelez-nous -
32767 WZ05X0184 Scr 6-20 Bt Phr 3/8 S Appelez-nous -
32767 31-0415 Install Instructions Appelez-nous -
32767 31-0476 Pm Instruction Instl Appelez-nous -
32767 WB2X3152 Pad Appelez-nous -
32767 WB1X549 Scr 10-12 A Ihw 3/8 S Appelez-nous -
32767 WB2X1222 Pad Appelez-nous -
32767 WB1X438 Screw & Washer Asm Appelez-nous -
32767 WB2X6496 Insulation Appelez-nous -
32767 WZ07X0035 Nut Hex Appelez-nous -
32767 WZ05X0124 Scr 4-40 D Hxw 5/8 S Appelez-nous -
32767 WB1X500 Terminal Screw Appelez-nous -
32767 WZ04X0372 Scr 6-20 Ab Hxw 3/8 S Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

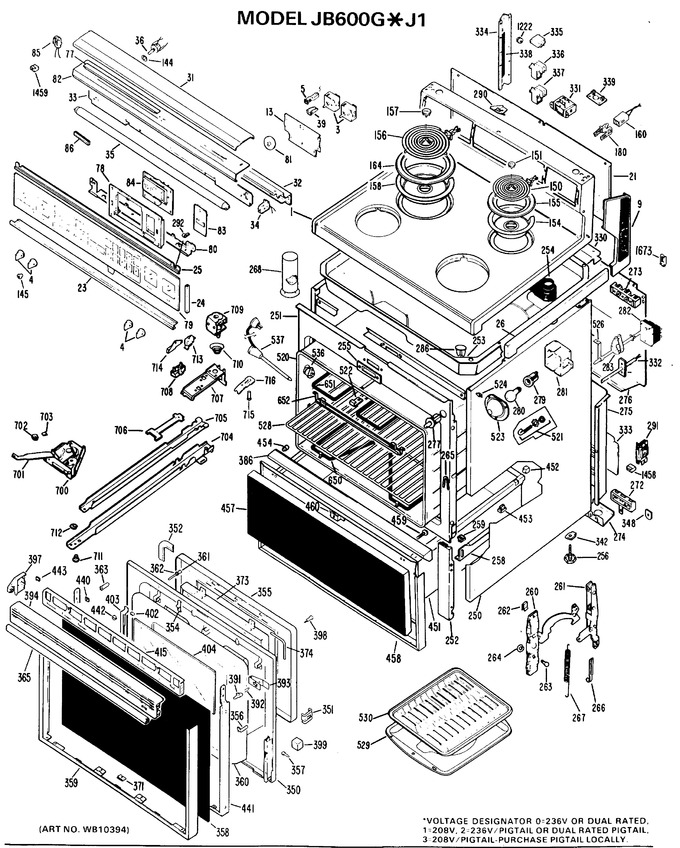

Diagram for JB600G*J1
