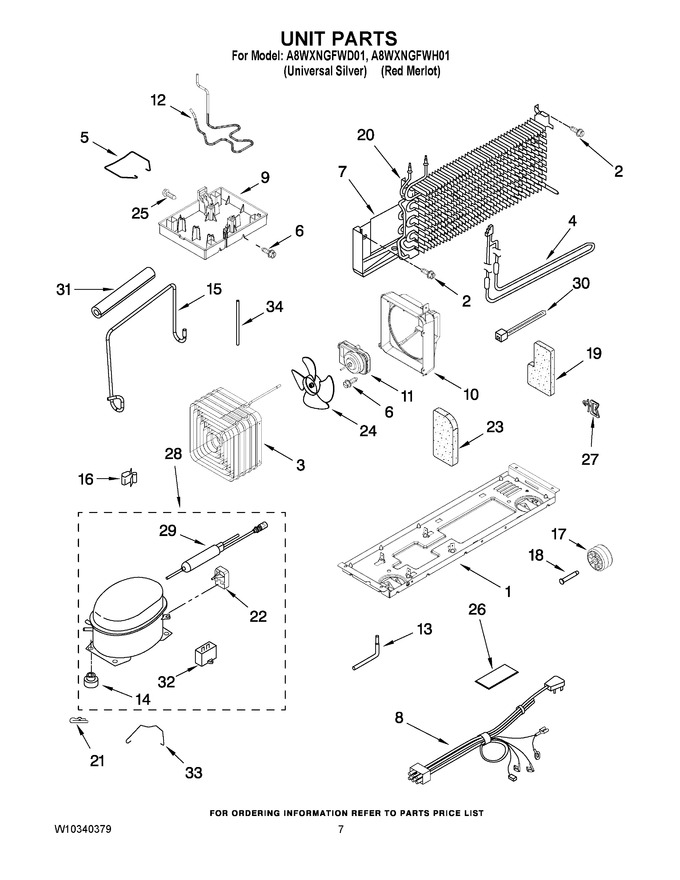

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10222450		Support Plate, Compressor   (Replaces: W10222450)				$ 146.78
2	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
3	WP2264004		Condenser   (Replaces: 2264004)				$ 207.96
4	WP2263749		Heater, Defrost   (Replaces: 2176942)			Immediately	$ 93.70
5	2264835		Clip, Condenser		Appelez-nous	-
6	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.61
7	2319224		Heat Shield				$ 116.21
8	WPW10151677		Wire Assy. Unit   (Replaces: W10151677)				$ 136.91
9	WP2263928		Evaporating Tray   (Replaces: 2263928)				$ 149.02
10	WP2263929		Air Baffle   (Replaces: 2263929)				$ 94.63
11	W11578915		Motor, Condenser   (Replaces: 2188875)			Immediately	$ 71.42
12	W10289687		Tube, Discharge (incl. Pre-cooler)				$ 123.61
13	W11676464		Tube, Process   (Replaces: VS20001)				$ 108.61
14	WPW10169124		Grommet (service)   (Replaces: 2264447)			Immediately	$ 7.55
15	2264131		Extension, Tube-heat				$ 16.87
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
18	WP2264756		Axle, Rivet   (Replaces: 2264756)				$ 7.55
19	2262191		Wedge-evaporator		Appelez-nous	-
20	WP2263920		Evaporator Assy.   (Replaces: 2263920)			Immediately	$ 333.22
21	24364001		Clip, Compressor		Appelez-nous	-
22	W10805623		Start Device, Combination (start Relay And Overload) (service)   (Replaces: W10249964)				$ 132.96
23	2262192		Wedge, Evaporator		Appelez-nous	-
24	2264129		Fan Blade			Immediately	$ 109.99
25	WP489489		Screw   (Replaces: 2264841)				$ 6.79
26	2266360		Shield, Electrical		Appelez-nous	-
27	2266467		Clip, Harness		Appelez-nous	-
28	W10285060		Compressor (includes Items 14, 22, 29 & 32) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: W10252075)				$ 738.55
29	W10843121		Drier (production)   (Replaces: W10190413)			Immediately	$ 57.13
29	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
30	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
31	2264838		Sleeve				$ 92.28
32	WPW10662129		Capacitator (production)   (Replaces: 2264017)			Immediately	$ 58.86
32	WPW10662129		Capacitator (service)   (Replaces: 2169373)			Immediately	$ 58.86
33	2212996		Bale Strap				$ 12.72
34	2264278		Tube, Drain				$ 79.77
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (3.75 Ozs. (r134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
