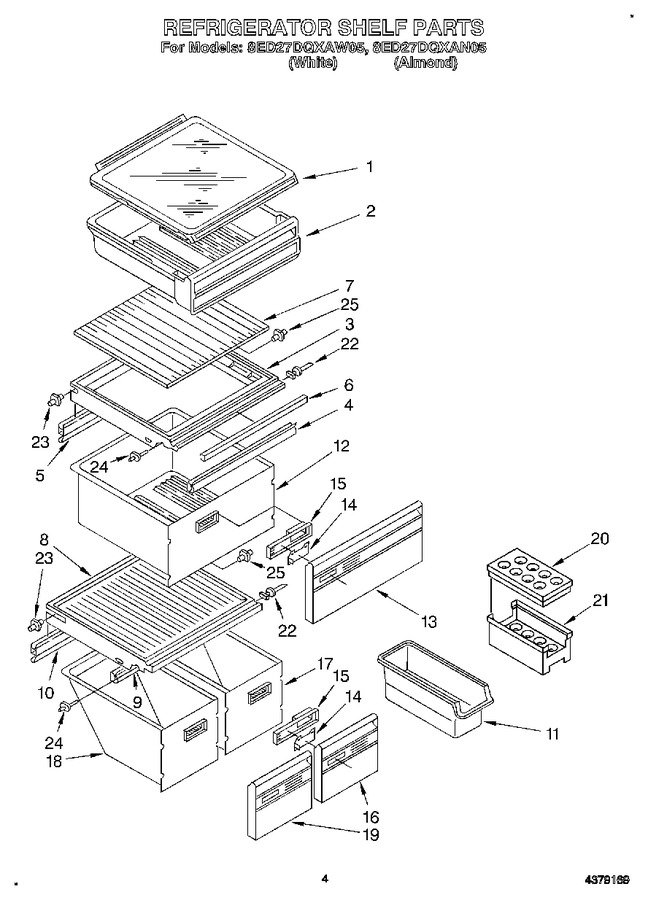

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2162564		Shelf Assembly, Glass Sliding (3)		Appelez-nous	-
2	1124829		Snack Bin		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 2148453)				$ 181.71
4	1115291		Gasket, Crisper (front)		Appelez-nous	-
5	1121385		Gasket, Crisper (rear)		Appelez-nous	-
6	1119190		Trim, Crisper Cover		Appelez-nous	-
7	1114687		Glass, Crisper Cover				$ 88.24
8	1124812		Cover, Meat Pan		Appelez-nous	-
9	1115292		Gasket (front)		Appelez-nous	-
10	1121384		Gasket (rear)		Appelez-nous	-
11	WP982704		Container   (Replaces: 1127196)				$ 31.00
12	WP2148279		Pan, Crisper   (Replaces: 1114682)				$ 144.08
13	1124825		Front, Crisper Pan		Appelez-nous	-
14	1124819		Slide, Humidity Control		Appelez-nous	-
15	1124820		Housing, Humidity Control		Appelez-nous	-
16	1124817		Front, Crisper Pan		Appelez-nous	-
17	1114690		Pan, Crisper		Appelez-nous	-
18	1114691		Meat Pan		Appelez-nous	-
19	1124814		Front, Meat Pan		Appelez-nous	-
20	1107388		Egg Container, Top		Appelez-nous	-
21	1107384		Egg Container, Bottom		Appelez-nous	-
22	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 31.34
23	1115290		Shelf Stud				$ 7.61
24	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.44
25	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 31.34
