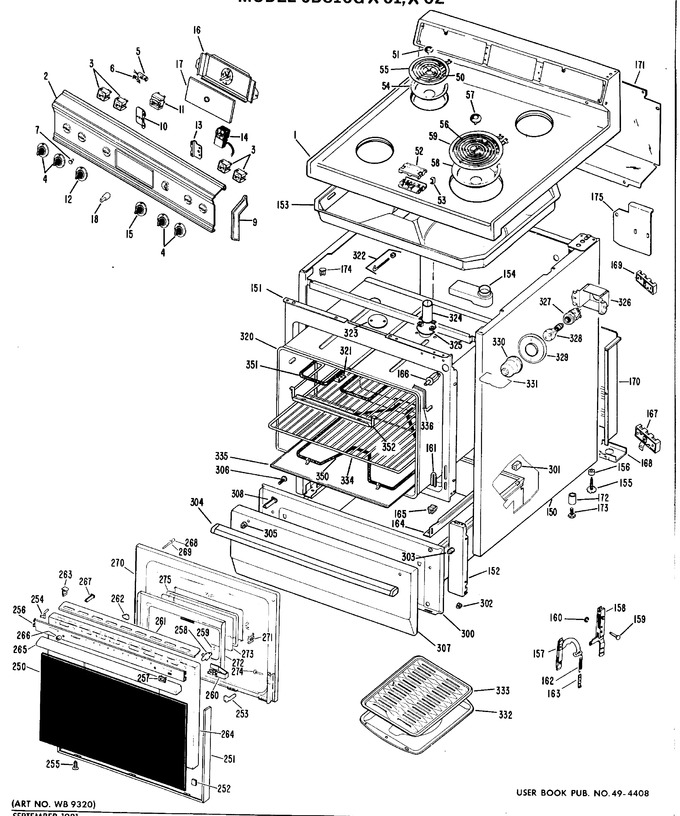

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WZ06X0046 | Screw - Mt. Top |
|
- | |||||
| 1 | WB2X797 | Dot Fastener |
|
- | |||||
| 1 | WB62X1474 | Cooktop Wh |
|
- | |||||
| 1 | WB62X1475 | Cooktop Cf |
|
- | |||||
| 1 | WB62X1476 | Cooktop Fa |
|
- | |||||
| 1 | WB62X1477 | Cooktop Ha |
|
- | |||||
| 1 | WB62X1478 | Cooktop Ad |
|
- | |||||
| 2 | WB7X1112 | Trim Switch |
|
- | |||||
| 2 | WZ04X0237 | Screw |
|
- | |||||
| 3 | WB1X573 | Screw Mt. Sw. |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X226) |
|
Immediately | $ 60.94 | ||||
| 3 | WB2X6494 | Barrier |
|
- | |||||
| 4 | WB3X464 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X1185 | Clip Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WZ04X0237 | Screw |
|
- | |||||
| 9 | WZ01X0591 | Speednut-end Cap Top |
|
- | |||||
| 9 | WB7X1082 | End Cap Lh |
|
- | |||||
| 9 | WB1X578 | Speednut Cap |
|
- | |||||
| 9 | WZ04X0414 | Scr 8-18 Ab Ovr 1/2 S#6h |
|
- | |||||
| 9 | WB2X6494 | Barrier |
|
- | |||||
| 10 | WB2X3261 | Bracket Lh |
|
- | |||||
| 10 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 11 | WB1X521 | Scr 8/32 Tf Flr 5/16 S |
|
- | |||||
| 11 | WB22X5134 | Switch, Oven L.o. (Replaces: WB22X27) |
|
- | |||||
| 12 | WB3X468 | Knob Oven Switch |
|
- | |||||
| 13 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 13 | WB2X3262 | Bracket Rh |
|
- | |||||
| 14 | WB1X521 | Scr 8/32 Tf Flr 5/16 S |
|
- | |||||
| 14 | WB21X177 | Thermostat, Oven L.o. |
|
- | |||||
| 14 | WB2X1394 | Sleeve |
|
- | |||||
| 15 | WB3X467 | Knob Thermostat |
|
- | |||||
| 16 | WB19X154 | Timer |
|
- | |||||
| 16 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 17 | WB36X485 | Crystal Timer |
|
- | |||||
| 17 | WB2X2901 | Clip Crystal |
|
- | |||||
| 18 | WB3X459 | Knob Timer |
|
- | |||||
| 50 | WB30X342 | Surface Unit, 6" |
|
- | |||||
| 51 | WB1X549 | Screw (hex) |
|
- | |||||
| 51 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 52 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 52 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 53 | WB2X574 | 3 In 1 Insulator Clip |
|
- | |||||
| 54 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 55 | WB1X500 | Terminal Screw |
|
- | |||||
| 55 | WB31X56 | Trim Ring 6" |
|
- | |||||
| 56 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 56 | WB1X549 | Screw (hex) |
|
- | |||||
| 57 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 58 | WB32X34 | Unit Pan 8" |
|
- | |||||
| 59 | WB31X55 | Trim Ring 8" |
|
- | |||||
| 150 | WB2X3470 | Counterweight |
|
- | |||||
| 151 | WB56X1348 | Frame Front |
|
- | |||||
| 152 | WB49X322 | Filler Panel |
|
- | |||||
| 153 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 153 | WB49X341 | Box Cooktop |
|
- | |||||
| 154 | WB38X50 | Vent Body |
|
- | |||||
| 155 | WB1X450 | Leg Leveling |
|
- | |||||
| 155 | WB2X3386 | Sleeve |
|
- | |||||
| 157 | WB1X556 | Scr 8-18 Ba Rt 7/16 S |
|
- | |||||
| 157 | WB10X147 | Hinge Lever Asm |
|
- | |||||
| 158 | WB10X149 | Hinge Spt Lh |
|
- | |||||
| 158 | WB10X148 | Hinge Spt Rh |
|
- | |||||
| 159 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 160 | WB2X3193 | Clip Shim |
|
- | |||||
| 160 | WB2X1082 | Ring Retaining |
|
- | |||||
| 161 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 162 | WB9X144 | Spring Door |
|
- | |||||
| 163 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 164 | WB39X51 | Drawer Guide Rh & Lh |
|
- | |||||
| 165 | WB2X831 | Slide Guide |
|
- | |||||
| 166 | WB24X105 | Switch |
|
- | |||||
| 167 | WZ04X0373 | Screw Mt. Block |
|
- | |||||
| 167 | WB17X168 | Terminal Block-power |
|
- | |||||
| 167 | WB2X646 | Plate Ground |
|
- | |||||
| 168 | WB2X1908 | Knockout Plate |
|
- | |||||
| 168 | WB1X549 | Screw (hex) |
|
- | |||||
| 169 | WB17X167 | Block Term Distribution |
|
- | |||||
| 169 | WZ04X0394 | Screw |
|
- | |||||
| 170 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 170 | WB59X173 | Guard Terminal |
|
- | |||||
| 171 | WB1X5346 | Screw Mt. Cover |
|
- | |||||
| 171 | WB49X390 | Cover Back |
|
- | |||||
| 172 | WB2X3330 | Foot |
|
- | |||||
| 173 | WZ04X0394 | Screw |
|
- | |||||
| 174 | WB2X3394 | Plug Button |
|
- | |||||
| 175 | WB49X391 | Cover Light |
|
- | |||||
| 175 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 250 | WB36X5379 | Glass Black |
|
- | |||||
| 251 | WB7X5637 | Trim Door |
|
- | |||||
| 252 | WB2X1222 | Pad Glass (felt) |
|
- | |||||
| 253 | WB2X6574 | Clip-trim Door |
|
- | |||||
| 254 | WB2X6575 | Clip Trim |
|
- | |||||
| 255 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 256 | WB7X5623 | Trim Door |
|
- | |||||
| 257 | WB7X5624 | Trim Toggle |
|
- | |||||
| 258 | WB2X3052 | Toggle |
|
- | |||||
| 259 | WB2X5217 | Cam Link |
|
- | |||||
| 260 | WB9X5083 | Cam Spring |
|
- | |||||
| 261 | WB7X5636 | Trim Top |
|
- | |||||
| 262 | WB2X3053 | Clip Mtg Door Trims |
|
- | |||||
| 263 | WB7X5631 | Cap Trim |
|
- | |||||
| 264 | WB56X1351 | Panel Door |
|
- | |||||
| 265 | WB15X147 | Handle |
|
- | |||||
| 266 | WB2X3258 | Grommet Handle |
|
- | |||||
| 267 | WB2X6204 | Spacer Panel |
|
- | |||||
| 268 | WZ04X0385 | Screw |
|
- | |||||
| 269 | WB1X119 | Washer Contoured |
|
- | |||||
| 270 | WB55X382 | Door Liner |
|
- | |||||
| 270 | WB2X3433 | Insulation |
|
- | |||||
| 271 | WB2X6270 | Spacer Door |
|
- | |||||
| 272 | WB1X590 | Scr 8-32 Ca Hx 13/32 S |
|
- | |||||
| 272 | WB49X384 | Guard Insulation |
|
- | |||||
| 273 | WB36X526 | Crystal Window |
|
$ 140.86 | |||||
| 274 | WB1X558 | Screw Nail Point |
|
- | |||||
| 275 | WB7X1031 | Trim Crystal |
|
- | |||||
| 300 | WB58X50 | Drawer Asm |
|
- | |||||
| 301 | WB2X840 | Slide Top |
|
- | |||||
| 302 | WB2X841 | Slide Bottom |
|
- | |||||
| 303 | WB2X584 | Bumper |
|
- | |||||
| 304 | WB15X147 | Handle |
|
- | |||||
| 305 | WB2X3135 | Handle Spacer |
|
- | |||||
| 306 | WZ04X0395 | Handle Screw |
|
- | |||||
| 307 | WB56X1397 | Drawer Panel Cf |
|
- | |||||
| 307 | WB56X1399 | Drawer Panel Ha |
|
- | |||||
| 307 | WB56X1400 | Drawer Panel Ad |
|
- | |||||
| 307 | WB56X1396 | Drawer Panel Wh |
|
- | |||||
| 307 | WB56X1398 | Drawer Panel Fa |
|
- | |||||
| 308 | WB2X3387 | Spacer Panel |
|
- | |||||
| 320 | WB53X248 | Oven Liner |
|
- | |||||
| 320 | WB2X3141 | Insulation |
|
- | |||||
| 321 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 321 | WB2X3393 | Trim Clip |
|
- | |||||
| 322 | WB9X88 | Lockwasher |
|
- | |||||
| 323 | WB2X818 | Cover Vent |
|
- | |||||
| 323 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 324 | WB38X72 | Tube Vent |
|
- | |||||
| 325 | WB2X1626 | Baffle |
|
- | |||||
| 326 | WB2X3447 | Bracket Support |
|
- | |||||
| 327 | WB8X191 | Receptacle |
|
- | |||||
| 329 | WB2X3448 | Trim Lamp |
|
- | |||||
| 330 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 331 | WB2X2885 | Bail |
|
- | |||||
| 332 | WB49X88 | Broil Pan |
|
- | |||||
| 333 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 334 | WB48X5044 | Oven Rack |
|
- | |||||
| 336 | WB2X3246 | Gasket, Silicone |
|
- | |||||
| 350 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 351 | UT316 | Broil Unit (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 352 | WB2X1452 | Support Broil |
|
- |
