SELECT A DIAGRAM

Diagram for 1 - Range
1 - Range


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WB62X1477 Cooktop Ha Appelez-nous -
1 WB62X1474 Cooktop Wh Appelez-nous -
1 WB62X1478 Cooktop Ad Appelez-nous -
1 WB62X5303 Cooktop Sl Appelez-nous -
1 WB62X5302 Cooktop Ds Appelez-nous -
2 WB7X6833 Trim Control Appelez-nous -
3 5500-200 Switch, Inf Surface Unit   (Replaces: WB21X5243) In-Stock Immediately $ 60.94

4 WB3X5640 Knob Surface Unit Appelez-nous -
5 WB2X1608 Neon Lamp 118v Special Order $ 31.65

6 WB2X1185 Clip Mtg Lamp Appelez-nous -
7 WB25X65 Jewel Appelez-nous -
9 WB7X6829 End Cap Lh Appelez-nous -
9 WB7X6828 End Cap Rh Appelez-nous -
10 WB2X7305 Bracket Lh Appelez-nous -
11 WB22X5134 Switch, Oven   (Replaces: WB22X5022) Appelez-nous -
12 WB3X5641 Knob Oven Switch Appelez-nous -
13 WB2X7306 Bracket Rh Appelez-nous -
14 WB2X1394 Sleeve Appelez-nous -
14 WB21X5208 Thermostat Appelez-nous -
15 WB3X5642 Knob Thermostat Appelez-nous -
16 WB19X154 Timer Appelez-nous -
17 WB3X5699 "timer-knob" Appelez-nous -
18 WB36X485 Crystal Timer Appelez-nous -
21 WB49X390 Cover Back Appelez-nous -
147 WB1X578 Speednut Cap Appelez-nous -
148 WS01A01408 Screw   (Replaces: WB1X5716) Special Order $ 4.20

148 WB1X5682 Screw Shoulder Appelez-nous -
149 WB2X2901 Clip Crystal Appelez-nous -
150 WB30X342 Surface Unit, 6" Appelez-nous -
151 WB32X52 Center Trim 6" Unit Appelez-nous -
152 WB2X2398 Term Block Single Coil Appelez-nous -
152 WB2X1351 Term Block Double Coil Appelez-nous -
153 WB2X574 Clip Insulator Appelez-nous -
154 WB32X36 Unit Pan 6" Appelez-nous -
155 WB31X5013 Trim Ring 6" Appelez-nous -
156 WB30X348 Surface Unit, 8" Appelez-nous -
157 WB32X51 Center Trim 8" Unit Appelez-nous -
158 WB32X5013 Unit Pan 8" Appelez-nous -
164 WB31X5014 Trim Ring 8" In-Stock Immediately $ 13.55

176 WB49X391 Cover Light Appelez-nous -
251 WB56X1348 Frame Front Appelez-nous -
252 WB49X322 Filler Panel Appelez-nous -
253 WB49X341 Cooktop Box Appelez-nous -
254 WB38X50 Vent Body Appelez-nous -
256 WR2X4978 Leveling Leg Appelez-nous -
258 WB39X51 Drawer Guide Rh & Lh Appelez-nous -
259 WB2X831 Slide Guide Appelez-nous -
260 WB10X5148 Hinge Lever Asm Rh & Lh Appelez-nous -
261 WB10X149 Hinge Support Lh Appelez-nous -
261 WB10X148 Hinge Support Rh Appelez-nous -
263 WG02A00596 Pin Hinge   (Replaces: WB2X6195) Special Order $ 4.20

264 WB2X1082 Pin Hinge Retainer Appelez-nous -
265 WB2X6342 Guide Hinge Lever Appelez-nous -
266 WB2X2506 Hook Door Spring Appelez-nous -
267 WB9X144 Spring Door Appelez-nous -
271 WB2X1626 Baffle Appelez-nous -
272 WB17X5095 Block Terminal Power Appelez-nous -
274 WB2X1908 Knockout Plate Appelez-nous -
275 WB59X173 Guard Terminal Appelez-nous -
277 WB24X105 Switch, Oven Light Appelez-nous -
279 WB8X191 Receptacle Appelez-nous -
280 WX12X1510 Lamp 40w Appliance Appelez-nous -
287 WB2X3447 Bracket Support Appelez-nous -
300 WB2X7052 Tie Wire Appelez-nous -
302 WB2X2885 Bail Appelez-nous -
303 WG02F04576 Glass Oven Lamp   (Replaces: WB36X389) Special Order $ 20.65

342 WB2X7524 Retainer Leg Appelez-nous -
348 WB2X646 Plate Ground Appelez-nous -
350 WB55X382 Door Liner Appelez-nous -
351 WB2X6270 Spacer Door Appelez-nous -
356 WB2X6574 Clip Trim (4) Appelez-nous -
358 WB2X3140 Insulation Appelez-nous -
358 WB36X5379 Glass Black Appelez-nous -
359 WB7X5637 Trim Door Appelez-nous -
360 WB49X384 Guard Insulation Appelez-nous -
361 WZ04X0423 Screw Mtg Handle Appelez-nous -
362 WB1X119 Washer Screw Appelez-nous -
363 WB2X6204 Spacer Panel Appelez-nous -
364 WB2X3258 Grommet Handle Appelez-nous -
365 WB15X147 Handle Appelez-nous -
377 WB7X1031 Trim Crystal Appelez-nous -
385 WB7X5631 Cap Trim Appelez-nous -
387 WB2X6575 Clip Trim Appelez-nous -
389 WB7X5623 Trim Door Appelez-nous -
390 WB7X5624 Trim Toggle Appelez-nous -
391 WB2X3052 Toggle Appelez-nous -
392 WB2X5217 Cam Link Appelez-nous -
393 WB9X5083 Cam Spring Appelez-nous -
394 WB7X5636 Trim Top Appelez-nous -
395 WB2X3053 Clip Mtg Door Trims Appelez-nous -
396 WB56X1351 Panel Door Appelez-nous -
399 WB2X3285 Pad Socket Appelez-nous -
400 WB36X526 Crystal Window Special Order $ 140.86

402 WB1X591 Speednut Appelez-nous -
409 WB2X3470 Counterweight Appelez-nous -
440 WB1X585 Speednut Appelez-nous -
451 WB58X50 Drawer Body Appelez-nous -
452 WB2X840 Slide Top Appelez-nous -
453 WB2X841 Slide Bottom Appelez-nous -
453 WB2X3394 Plug Button Appelez-nous -
454 WB2X584 Bumper Appelez-nous -
455 WB2X3135 Handle Spacer Appelez-nous -
456 WZ04X0395 Handle Screw Appelez-nous -
457 WB56X1400 Drawer Panel Ad Appelez-nous -
457 WB56X5977 Drawer Panel Ds Appelez-nous -
457 WB56X5978 Drawer Panel Sl Appelez-nous -
457 WB56X1396 Drawer Panel Wh Appelez-nous -
457 WB56X1399 Drawer Panel Ha Appelez-nous -
458 WB2X3387 Spacer Panel Appelez-nous -
461 WB1X593 Screw Mtg Clip Appelez-nous -
520 WB2X3141 Insulation Appelez-nous -
520 WB53X248 Oven Liner Appelez-nous -
521 WB9X88 Hook Package Appelez-nous -
522 WB2X3393 Trim Clip Appelez-nous -
525 WB2X3448 Trim Lamp Appelez-nous -
528 WB48X5044 Rack Oven Appelez-nous -
529 WB49X88 Broil Pan Appelez-nous -
530 WB48X5002 Broiler Pan Rack Appelez-nous -
532 WB38X72 Tube Vent Appelez-nous -
534 WB2X1522 Gasket Silicone Appelez-nous -
535 WB2X7749 Aluminum Foil Appelez-nous -
650 UB592 Bake Unit 208/240v   (Replaces: WB44X5082) In-Stock Immediately $ 49.95

651 UT316 Broil Unit 208/240v   (Replaces: WB44X185) In-Stock Immediately $ 49.95

652 WB2X1452 Support Broil Appelez-nous -
740 WB2X7226 Clip Wire Appelez-nous -
1522 WB1X5629 Speednut Appelez-nous -
32767 WZ07X0035 Nut Hex Appelez-nous -
32767 WB1X500 Terminal Screw Appelez-nous -
32767 31-0415 Install Instructions Appelez-nous -
32767 03-9156 Install Instructions Appelez-nous -
32767 WB9X88 Lockwasher Appelez-nous -
32767 WB1X549 Scr 10-12 A Ihw 3/8 S Appelez-nous -
32767 WZ04X0345 Screw Appelez-nous -
32767 WB2X3141 Insulation Appelez-nous -
32767 WZ06X0038 Scr 8-18 Ab Hxw 5/8 S Appelez-nous -
32767 WS01A02255 Scr 8-18 B Ihw 3/8 S   (Replaces: WB1X536) Special Order $ 3.97

32767 WB17X171 Terminal Male & Female Appelez-nous -
32767 WB2X1222 Pad Appelez-nous -
32767 WB1X590 Scr 8-32 Ca Hx 13/32 S Appelez-nous -
32767 WZ04X0413 Screw Appelez-nous -
32767 WB1X448 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

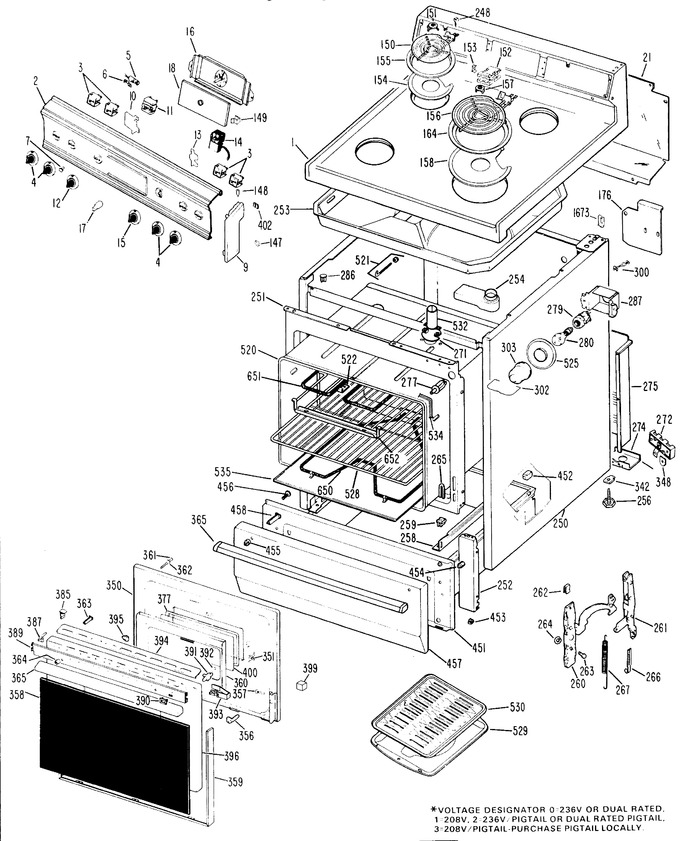

Diagram for JBC16G*F2
