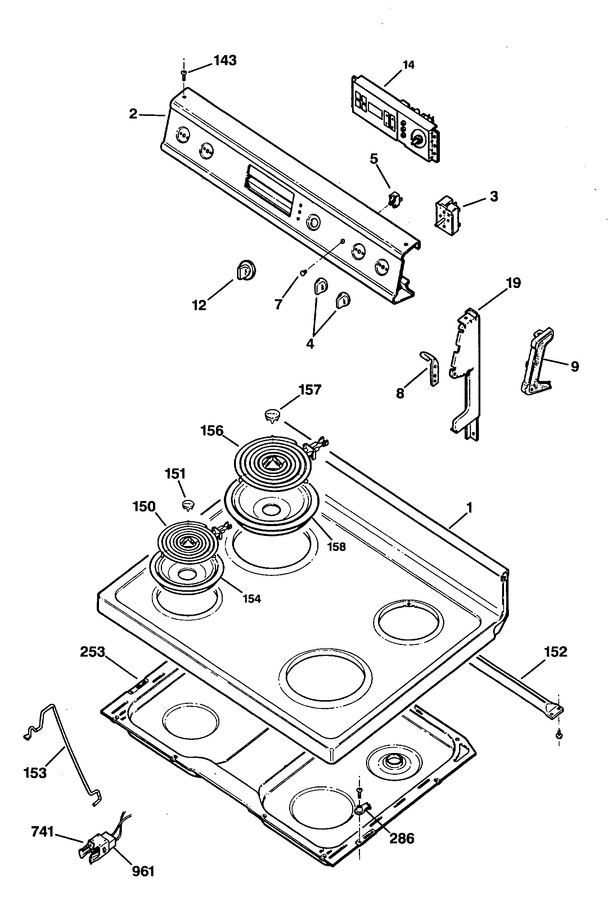

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5409 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5408 | Cooktop Wh |
|
- | |||||
| 2 | WB36X5698 | Trim & Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 12 | WB3X5804 | Knob Asm |
|
- | |||||
| 14 | WB27X5510 | Control T08 |
|
- | |||||
| 16 | WB19X5308 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB36X5697 | Crystal Timer |
|
- | |||||
| 19 | WB7X7164 | Plate End Ad |
|
- | |||||
| 19 | WB7X7163 | Plate End Wh |
|
- | |||||
| 19 | WB7X7162 | Plate End Ad |
|
- | |||||
| 19 | WB7X7161 | Plate End Wh |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WB30X5109 | Unit Asm 6 Inch Plug In |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 154 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 156 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 254 | WB1X549 | Screw (hex) |
|
- | |||||
| 272 | WB17X5123 | Block Terminal |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 680 | WR1X1850 | Screw |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 741 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 752 | WZ04X0345 | Screw |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 961 | WB17X5121 | Recpt. Asm |
|
- | |||||
| 32767 | WB18X5127 | Harness Kit |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-1428 | Pm Manual Mini |
|
- |
