SELECT A DIAGRAM

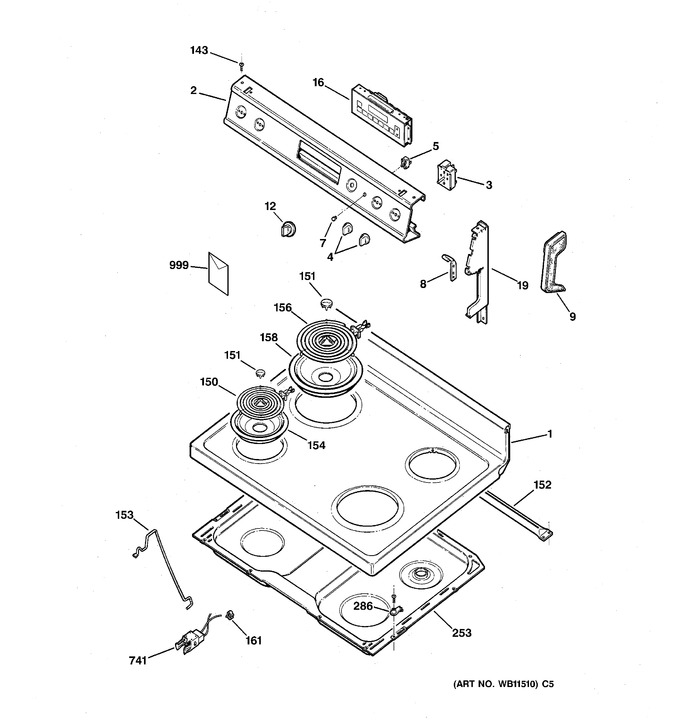

1 - Control Panel & Cooktop


2 - Body Parts


3 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5428		Cooktop Ad		Appelez-nous	-
1	WB62X5427		Cooktop Wh		Appelez-nous	-
2	WB36X5704		Trim & Bracket Asm		Appelez-nous	-
3	WB24X5333		Sw.inf. Control 6" Brnr		Appelez-nous	-
3	WB24X5334		Sw.inf. Control 8" Brnr		Appelez-nous	-
4	WB3X5775		Knob		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Jewel		Appelez-nous	-
8	WB2X8127		Pin Hinge L		Appelez-nous	-
8	WB2X8126		Pin Hinge R		Appelez-nous	-
9	WB7X7131		End Cap Left		Appelez-nous	-
9	WB7X7130		End Cap Right		Appelez-nous	-
12	WB3X5806		Knob		Appelez-nous	-
16	WB2X8297		Cam Dual		Appelez-nous	-
16	WB2X8298		Spring Detent		Appelez-nous	-
16	WB27X5526		Control T08		Appelez-nous	-
16	WB2X8268		Nut		Appelez-nous	-
19	WB7X7161		Plate End		Appelez-nous	-
19	WB7X7164		Plate End		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
150	WB30X5121		Unit Asm 6" P I		Appelez-nous	-
151	WB32X5089		Trim Center		Appelez-nous	-
152	WB2X8128		Bar Torsion		Appelez-nous	-
153	WB2X8114		Rod Support		Appelez-nous	-
154	WB32X5075		Burner Bowl 6"		Appelez-nous	-
156	WB30X5122		8" Surface Element Asm		Appelez-nous	-
158	WB32X5076		Burner Bowl 8"				$ 10.45
161	WS01A01095		Clip Wire   (Replaces: WB2X8115)			Immediately	$ 3.97
253	WB49X5499		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
704	WB2X8220		Barrier		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
999	WB18X5127		Harness		Appelez-nous	-
999	31-1428		Pm Manual Mini		Appelez-nous	-
999	31-0824		Install Instr (anti-tip)		Appelez-nous	-
999	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
999	49-8451		Pm Manual Use & Care		Appelez-nous	-
