SELECT A DIAGRAM

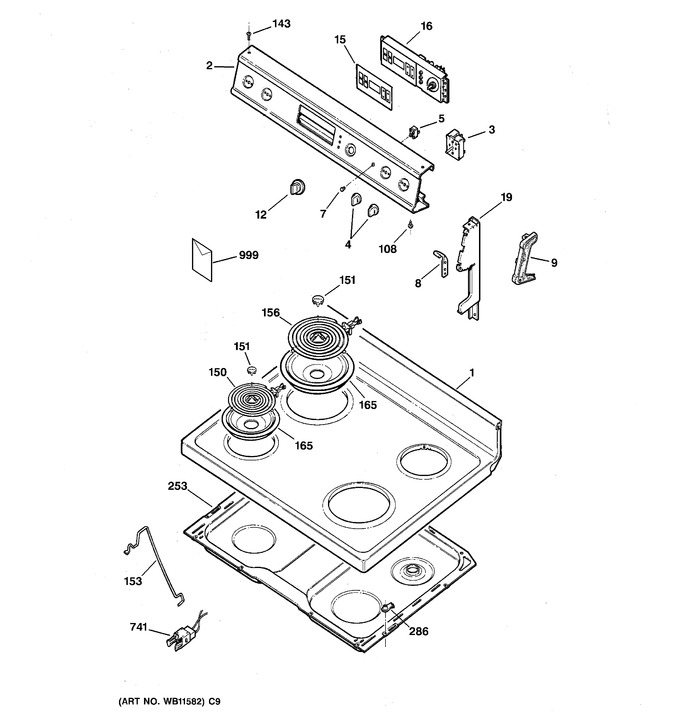

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5406		Range Top Asm - Almond		Appelez-nous	-
1	WB62X5402		Range Top Asm - White		Appelez-nous	-
2	WB36X5758		Trim & Bracket Asm		Appelez-nous	-
3	WB24X5334		Switch Inf Control 8"		Appelez-nous	-
3	WB24X5333		Switch Inf Control 6"		Appelez-nous	-
4	WB3X5834		Knob-surface Unit		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Jewel		Appelez-nous	-
8	WB2X8127		Pin Hinge L		Appelez-nous	-
8	WB2X8126		Pin Hinge R		Appelez-nous	-
9	WB7X7131		End Cap Left		Appelez-nous	-
9	WB7X7130		End Cap Right		Appelez-nous	-
12	WB3X5829		Knob-oven Thermo Set		Appelez-nous	-
15	WB27X5563		Faceplate (black)		Appelez-nous	-
16	WB9X5121		Spring Detent		Appelez-nous	-
16	WB2X8268		Nut		Appelez-nous	-
16	WB2X8297		Cam Dual		Appelez-nous	-
16	WB27X5580		Control T08		Appelez-nous	-
19	WB7X7271		End Plate Ad Lh		Appelez-nous	-
19	WB7X7270		End Plate Ad Rh		Appelez-nous	-
19	WB7X7269		Plate End Wh Lh		Appelez-nous	-
19	WB7X7268		Plate End Wh Rh		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
150	WB30X5129		6" Surf Elem		Appelez-nous	-
151	WG02F04803		Trim Center   (Replaces: WB31X5021)				$ 4.78
153	WB2X8114		Rod Support		Appelez-nous	-
156	WB30X5130		8" Surf Elem		Appelez-nous	-
161	WS01A01095		Clip Wire   (Replaces: WB2X8115)			Immediately	$ 3.97
165	WB32X5076		Burner Bowl 8" Chrome				$ 10.45
165	WB32X5075		Burner Bowl 6" Chrome		Appelez-nous	-
253	WB49X5566		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
999	31-0824		Install Instr (anti-tip)		Appelez-nous	-
999	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
999	31-20402		Pm Manual Mini		Appelez-nous	-
999	49-8781		Pm Manual Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
