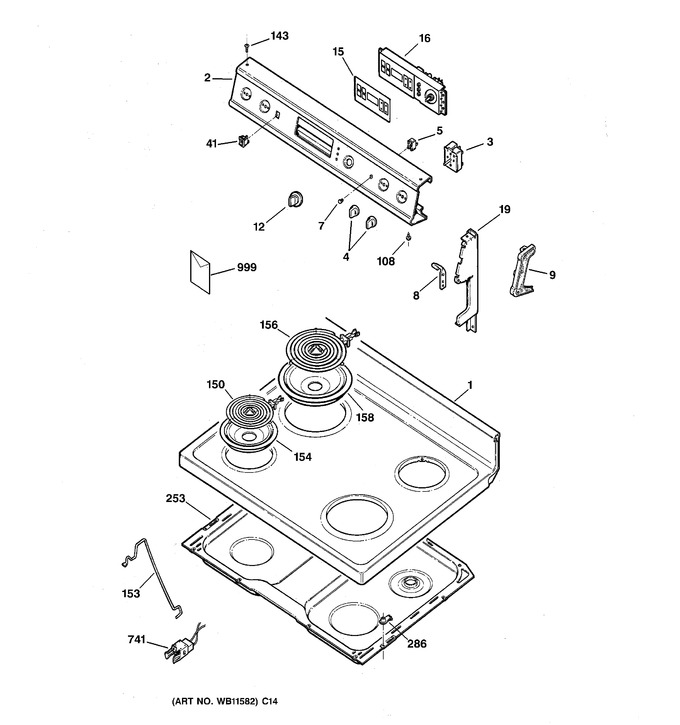

SELECT A DIAGRAM

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5452		Weld Asm Rangetop Ad		Appelez-nous	-
1	WB62X5451		Weld Asm Rangetop Wh		Appelez-nous	-
2	WB36X10098		Trim Bracket Asm		Appelez-nous	-
3	WB23X5092		Sw Inf. Control 6" Brnr		Appelez-nous	-
3	WB32X5095		Sw Inf. Control 8" Brnr		Appelez-nous	-
4	WB03X10028		Knob Surface Unit Wh		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Indicator Light Lens		Appelez-nous	-
8	WB02X10486		Pin Hinge Lh		Appelez-nous	-
8	WB02X10485		Pin Hinge Rh		Appelez-nous	-
9	WB7X7145		Cap End Lh Wh		Appelez-nous	-
9	WB7X7146		Cap End Rh Wh		Appelez-nous	-
12	WB03X10036		Knob Wh		Appelez-nous	-
15	WB27X10243		Faceplate		Appelez-nous	-
16	WB2X8268		Nut		Appelez-nous	-
16	WB9X5121		Spring Detent		Appelez-nous	-
16	WB27X10215		T08b Control		Appelez-nous	-
16	WB02T10008		Cam Dual		Appelez-nous	-
19	WB7X7269		Plate End Lh Wh		Appelez-nous	-
19	WB7X7270		Plate End Rh Ad		Appelez-nous	-
19	WB7X7271		Plate End Lh Ad		Appelez-nous	-
19	WB7X7268		Plate End Rh Wh		Appelez-nous	-
41	WB24X5323		Switch Rocker Wh		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5874		Screw Wh		Appelez-nous	-
150	WB30T10027		Surface Unit Asm 6"		Appelez-nous	-
153	WB2X8114		Rod Support		Appelez-nous	-
154	WG02F00094		Burner Bowl 6"   (Replaces: WB31T10010)			Immediately	$ 39.70
156	WB30T10033		Surface Unit Asm 8"		Appelez-nous	-
158	WS01L00407		Burner Bowl 8"   (Replaces: WB31T10011)			Immediately	$ 41.63
253	WB49X5566		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 52.48
999	49-8927		Pm Manual Use & Care		Appelez-nous	-
999	49-8939		Pm Instruction Install		Appelez-nous	-
999	31-20745		Pm Manual Mini		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
