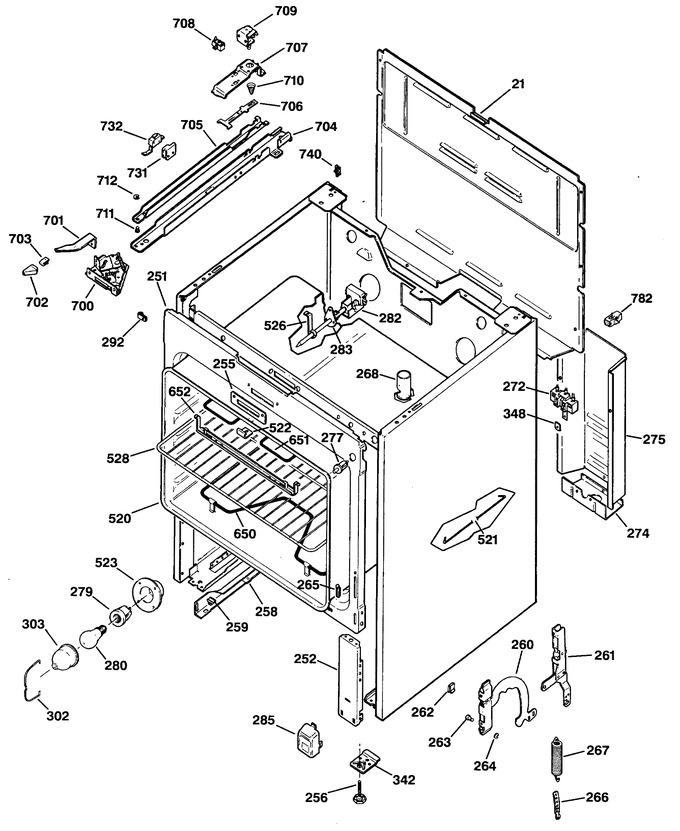

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | WB49X5496 | Cover Back |
|
- | |||||
| 251 | WB56X7030 | Frame Front |
|
- | |||||
| 252 | WB49X5497 | Panel Filler Ad |
|
- | |||||
| 252 | WB49X5498 | Panel Filler Wh |
|
- | |||||
| 255 | WB7X7036 | Trim Latch |
|
- | |||||
| 256 | WB2X8116 | Glider Adj |
|
- | |||||
| 258 | WB39X51 | Drawer Guide Rh & Lh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB2X3165 | Hanger-tls |
|
- | |||||
| 260 | WB10X5206 | Hinge Lever |
|
- | |||||
| 261 | WB10X148 | Hinge Spt Rh |
|
- | |||||
| 261 | WB10X149 | Hinge Spt Lh |
|
- | |||||
| 262 | WB2X3193 | Clip Shim |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Ring Retaining |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X146 | Spring Door |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB2X8104 | Guard Terminal |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 282 | WB24X5164 | Temp Limit Switch |
|
- | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 285 | WB2X8106 | Cover Foot |
|
- | |||||
| 292 | WB1X386 | Clamp Harness |
|
- | |||||
| 302 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 303 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 520 | WB53X5143 | Oven Liner |
|
- | |||||
| 521 | WB9X88 | Hook Package |
|
- | |||||
| 523 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 528 | WB48X5099 | Rack Oven |
|
$ 90.78 | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5037 | Latch |
|
- | |||||
| 701 | WB15X5190 | Handle Latch |
|
- | |||||
| 702 | WB3X5774 | Latch Knob |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X7707 | Channel Latch |
|
- | |||||
| 705 | WB2X7710 | Channel Locking |
|
- | |||||
| 706 | WB2X7708 | Locking Pawl Asm |
|
- | |||||
| 707 | WB2X7709 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 709 | WB24X5097 | Solenoid |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 731 | WB2X7711 | Bracket Switch |
|
- | |||||
| 732 | WB24X5235 | Switch |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- |
