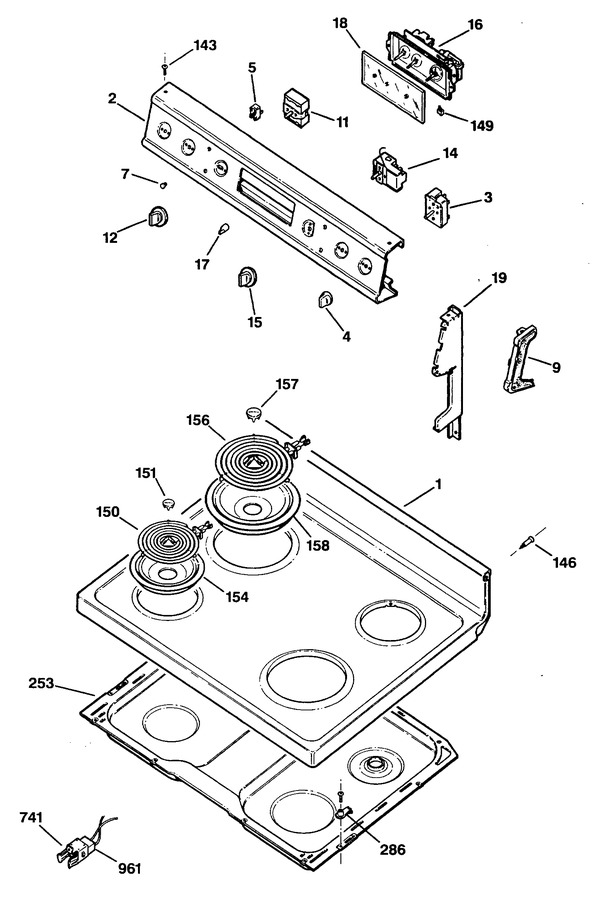

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5408 | Weld Asm Rangetop |
|
- | |||||
| 2 | WB36X5660 | Trim & Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 5 | WB2X7698 | Lamp Pilot 250v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 12 | WB3X5788 | Oven Temp Knob |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 15 | WB3X5789 | Oven Set Knob |
|
- | |||||
| 16 | WB19X5306 | Timer |
|
- | |||||
| 18 | WB36X5574 | Crystal Timer |
|
- | |||||
| 19 | WB7X7162 | Plate End |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 19 | WB7X7163 | Plate End |
|
- | |||||
| 21 | WB49X5521 | Cover Back |
|
- | |||||
| 30 | WB3X5699 | "timer-knob" |
|
- | |||||
| 35 | WB22X5122 | Oven Switch |
|
- | |||||
| 57 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 108 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 146 | WB1X5832 | Screw Shoulder |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WB30X5109 | Unit Asm 6 Inch Plug In |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 154 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 254 | WB1X549 | Screw (hex) |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 292 | WB1X386 | Clamp Harness |
|
- | |||||
| 342 | WB2X8241 | Foot Extension |
|
- | |||||
| 518 | WB2X8100 | Insulation-back |
|
- | |||||
| 520 | WB53X5143 | Oven Liner |
|
- | |||||
| 521 | WB9X88 | Lockwasher |
|
- | |||||
| 530 | 4396923 | Broiler Pan Rack (Replaces: WB48X5093) |
|
Immediately | $ 60.71 | ||||
| 532 | WB38X5063 | Tube Vent |
|
- | |||||
| 741 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 752 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 807 | WB0X6542 | Screw |
|
- | |||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 999 | 340732 | Tape |
|
- | |||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 32767 | WB18X5125 | Harness Kit |
|
- | |||||
| 32767 | 49-8335 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
