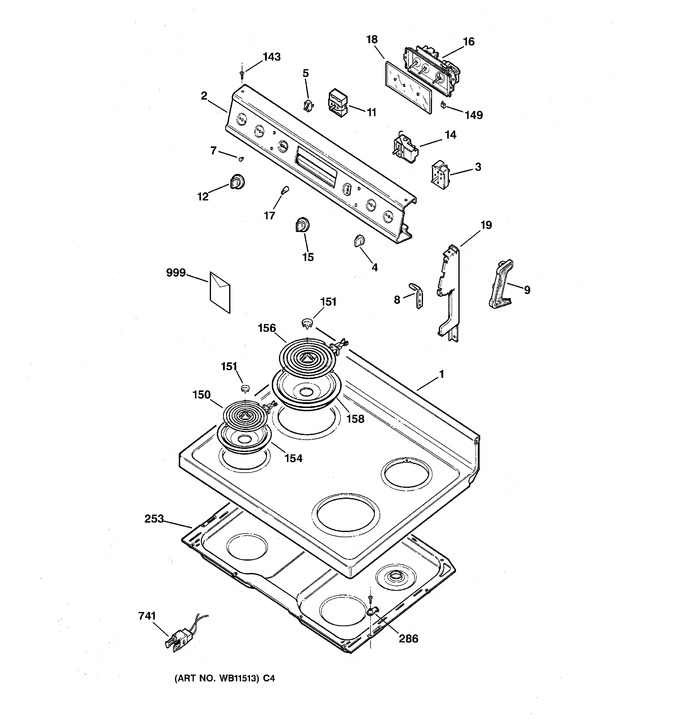

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5409		Cooktop Ad		Appelez-nous	-
1	WB62X5408		Cooktop Wh		Appelez-nous	-
2	WB36X5705		Trim & Brackrt Asm		Appelez-nous	-
3	WB24X5334		Switch Inf Surface Un 8"		Appelez-nous	-
3	WB24X5333		Switch Inf Surface Un 6"		Appelez-nous	-
4	WB3X5775		Knob		Appelez-nous	-
5	WB2X7698		Lamp Pilot 250v		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Jewel		Appelez-nous	-
8	WB2X8127		Pin Hinge L		Appelez-nous	-
8	WB2X8126		Pin Hinge R		Appelez-nous	-
9	WB7X7131		End Cap Left		Appelez-nous	-
9	WB7X7130		End Cap Right		Appelez-nous	-
11	WB22X5100		Oven Switch		Appelez-nous	-
12	WB3X5789		Oven Set Knob		Appelez-nous	-
14	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
14	WB21X5320		Thermostat, Dual   (Replaces: WB24X176)		Appelez-nous	-
15	WB3X5788		Oven Temp Knob		Appelez-nous	-
16	WB19X5306		Timer		Appelez-nous	-
17	WB3X5814		Knob Timer		Appelez-nous	-
18	WB36X5574		Crystal Timer		Appelez-nous	-
19	WB7X7163		Plate End Wh Lh		Appelez-nous	-
19	WB7X7162		Plate End Ad Rh		Appelez-nous	-
19	WB7X7161		Plate End Wh Rh		Appelez-nous	-
19	WB7X7164		Plate End Ad Lh		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
149	WB2X7702		Clip Crystal		Appelez-nous	-
150	WB30X5121		Unit Asm 6"		Appelez-nous	-
151	WB32X5089		Trim Center		Appelez-nous	-
154	WB32X5075		Burner Bowl 6"		Appelez-nous	-
156	WB30X5122		8" Surface Element Asm		Appelez-nous	-
158	WB32X5076		Burner Bowl 8"				$ 10.45
253	WB49X5499		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
999	31-0824		Install Instr (anti-tip)		Appelez-nous	-
999	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
999	49-8416		Pm Manual Use And Care		Appelez-nous	-
999	31-1430		Pm Manual Mini		Appelez-nous	-
999	WB18X5125		Harness		Appelez-nous	-
