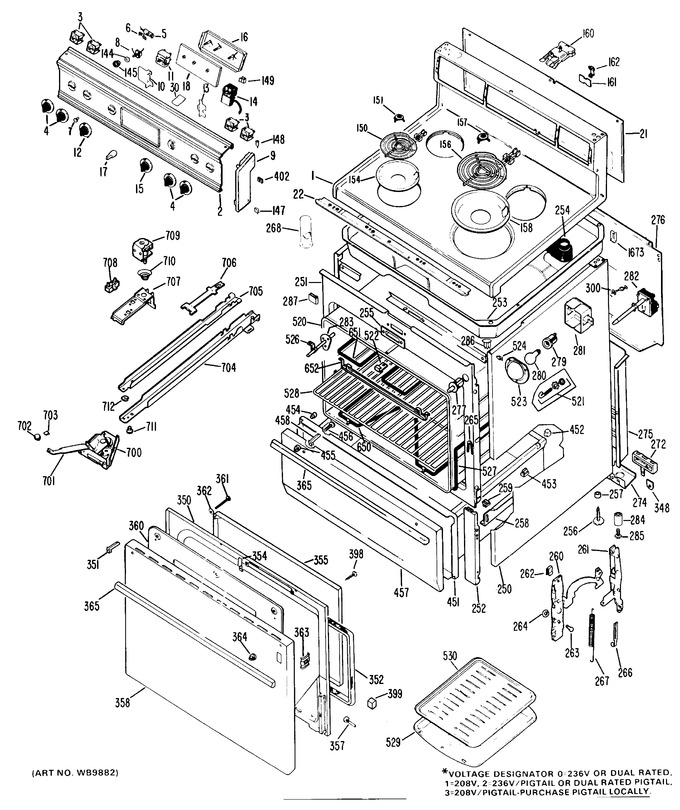

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1478 | Cooktop Ad |
|
- | |||||
| 1 | WB62X1475 | Cooktop Cf |
|
- | |||||
| 1 | WB62X1476 | Cooktop Fa |
|
- | |||||
| 1 | WB62X1477 | Cooktop Ha |
|
- | |||||
| 1 | WB62X1474 | Cooktop Wh |
|
- | |||||
| 2 | WB7X6834 | Trim Control |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5640 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 6 | WB2X1185 | Clip Mtg Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 8 | WB24X5139 | Switch, Latch Release |
|
- | |||||
| 9 | WB7X6832 | End Cap Lh |
|
- | |||||
| 9 | WB7X6831 | End Cap Rh |
|
- | |||||
| 10 | WB2X7305 | Bracket Lh |
|
- | |||||
| 11 | WB22X5100 | Switch, Oven |
|
- | |||||
| 12 | WB3X5645 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X7306 | Bracket Rh |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 15 | WB3X5644 | Knob Thermostat |
|
- | |||||
| 16 | WB19X146 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB36X409 | Crystal Timer |
|
- | |||||
| 21 | WB49X335 | Cover Back |
|
- | |||||
| 22 | WB7X6769 | Deflector |
|
- | |||||
| 30 | WB2X7307 | Trim Anchor |
|
- | |||||
| 144 | WB1X588 | Lockwasher Switch |
|
- | |||||
| 145 | WB1X246 | Nut Switch |
|
- | |||||
| 147 | WB1X578 | Speednut Cap |
|
- | |||||
| 148 | WZ04X0237 | Screw |
|
- | |||||
| 148 | WB1X5682 | Screw Shoulder |
|
- | |||||
| 149 | WB2X2901 | Clip Crystal |
|
- | |||||
| 150 | WB30X218 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 154 | WB31X5010 | Pan & Ring 6" Chrome |
|
- | |||||
| 156 | PS240M | Surface Unit, 8" (Replaces: WB30X219) |
|
Immediately | $ 44.95 | ||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB31X5011 | Pan & Ring 8" Chrome |
|
- | |||||
| 160 | WB5X5026 | Spring Contact Pkg |
|
- | |||||
| 160 | WB17X5051 | Receptacle Asm |
|
- | |||||
| 160 | WB1X5355 | Screw Recept Terminal |
|
- | |||||
| 161 | WB2X6171 | Insulator |
|
- | |||||
| 162 | WB2X6172 | Clip Insulator |
|
- | |||||
| 251 | WB56X1349 | Frame Front |
|
- | |||||
| 252 | WB49X322 | Filler Panel |
|
- | |||||
| 253 | WB49X341 | Cooktop Box |
|
- | |||||
| 254 | WB38X50 | Vent Body |
|
- | |||||
| 255 | WB7X552 | Trim Latch |
|
- | |||||
| 256 | WB1X5516 | Leveling Leg |
|
- | |||||
| 257 | WB2X3386 | Sleeve |
|
- | |||||
| 258 | WB39X51 | Drawer Guide Rh & Lh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB10X5148 | Hinge Lever Asm Rh & Lh |
|
- | |||||
| 261 | WB10X148 | Hinge Support Rh |
|
- | |||||
| 261 | WB10X149 | Hinge Support Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X5100 | Spring Door |
|
- | |||||
| 268 | WB29X5013 | Smoke Elim & Tube Asm |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB2X3137 | Guard Terminal |
|
- | |||||
| 276 | WB49X336 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 281 | WB2X3466 | Guard Lamp |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 284 | WB2X3330 | Foot |
|
- | |||||
| 292 | WB1X386 | Clamp Harness |
|
- | |||||
| 300 | WB2X7052 | Tie Wire |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB2X3140 | Insulation Door |
|
- | |||||
| 350 | WB55X380 | Door Liner |
|
- | |||||
| 351 | WB2X6270 | Spacer Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X1798 | Reflector Foil |
|
- | |||||
| 355 | WB55X423 | Panel Inner |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB56X1408 | Door Panel Fa |
|
- | |||||
| 358 | WB2X3140 | Insulation |
|
- | |||||
| 358 | WB56X1406 | Door Panel Wh |
|
- | |||||
| 358 | WB56X1407 | Door Panel Cf |
|
- | |||||
| 358 | WB56X1409 | Door Panel Ha |
|
- | |||||
| 358 | WB56X1410 | Door Panel Ad |
|
- | |||||
| 360 | WB55X381 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0423 | Screw Mtg Handle |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X6204 | Spacer Panel |
|
- | |||||
| 364 | WB2X3241 | Handle Spacer |
|
- | |||||
| 365 | WB15X147 | Handle |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 402 | WB1X591 | Speednut |
|
- | |||||
| 451 | WB58X50 | Drawer Body |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 453 | WB2X841 | Slide Bottom |
|
- | |||||
| 454 | WB2X584 | Bumper |
|
- | |||||
| 455 | WB2X3135 | Handle Spacer |
|
- | |||||
| 456 | WZ04X0395 | Handle Screw |
|
- | |||||
| 457 | WB56X1396 | Drawer Panel Wh |
|
- | |||||
| 457 | WB56X1397 | Drawer Panel Cf |
|
- | |||||
| 457 | WB56X1398 | Drawer Panel Fa |
|
- | |||||
| 457 | WB56X1399 | Drawer Panel Ha |
|
- | |||||
| 457 | WB56X1400 | Drawer Panel Ad |
|
- | |||||
| 458 | WB2X3387 | Spacer Panel |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 520 | WB53X5088 | Oven Liner |
|
- | |||||
| 520 | WB2X6496 | Insulation |
|
- | |||||
| 521 | WB9X88 | Hook Package |
|
- | |||||
| 522 | WB2X3393 | Trim Clip |
|
- | |||||
| 523 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 527 | WB2X3253 | Mullion Unit Clip |
|
- | |||||
| 527 | WB44X186 | Mullion Unit |
|
- | |||||
| 528 | WB48X5044 | Rack Oven |
|
- | |||||
| 529 | WB49X88 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5035 | Latch |
|
- | |||||
| 701 | WB15X5133 | Handle Latch |
|
- | |||||
| 702 | WB3X322 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X3174 | Channel Latch |
|
- | |||||
| 705 | WB2X3175 | Channel Locking |
|
- | |||||
| 706 | WB2X3159 | Locking Pawl Asm |
|
- | |||||
| 707 | WB2X3176 | Plate Mounting |
|
- | |||||
| 708 | WB2X3147 | Barrier |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 740 | WB2X7226 | Clip Wire |
|
- | |||||
| 1522 | WB1X5629 | Speednut |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 B Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WB1X549 | Scr 10-12 A Ihw 3/8 S |
|
- | |||||
| 32767 | WB2X6496 | Insulation |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WB1X556 | Scr 8-18 Ba Rt 7/16 S |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WB1X568 | Scr 8-18 Ba Rt 7/16 S |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | WZ02X0503 | Scr 8-32 M Phr 3/8 S |
|
- | |||||
| 32767 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | 31-0415 | Install Instructions |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | 03-9156 | Install Instructions |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB2X1659 | Speednut |
|
- | |||||
| 32767 | WB9X88 | Lockwasher |
|
- | |||||
| 32767 | WZ04X0394 | Screw |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WZ07X0035 | Nut Hex |
|
- |
