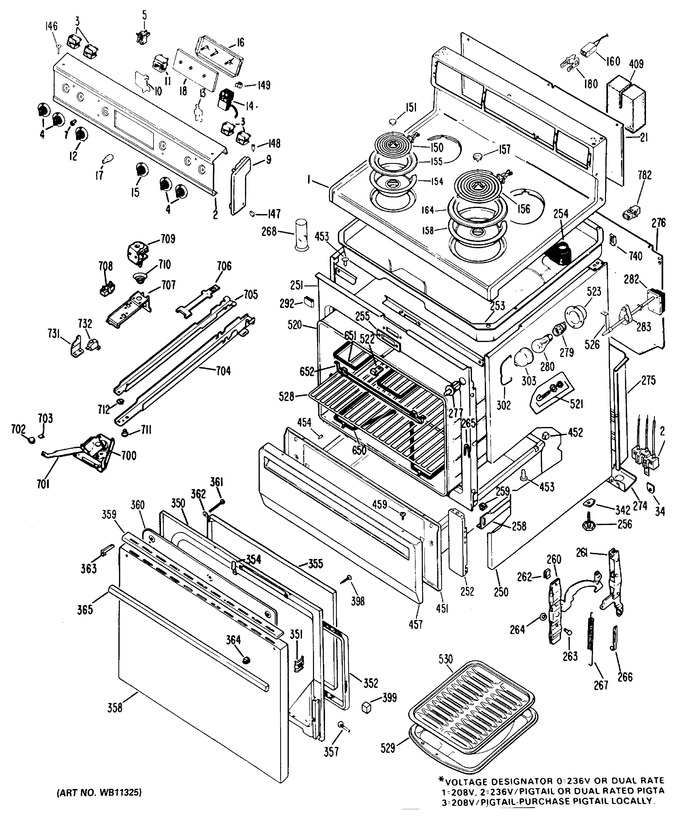

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1478 | Cooktop Ad |
|
- | |||||
| 1 | WB62X1477 | Cooktop Ha |
|
- | |||||
| 1 | WB62X1474 | Cooktop Wh |
|
- | |||||
| 2 | WB7X7035 | Trim Comtrol |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5737 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X7698 | Lamp Pilot 250v |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 9 | WB7X7034 | End Cap Lf |
|
- | |||||
| 9 | WB7X7033 | End Cap Rh |
|
- | |||||
| 10 | WB2X7305 | Bracket Lh |
|
- | |||||
| 11 | WB22X5100 | Switch, Oven |
|
- | |||||
| 12 | WB3X5739 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X7306 | Bracket Rh |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 15 | WB3X5738 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5299 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB36X5574 | Crystal Timer |
|
- | |||||
| 21 | WB49X335 | Cover Back |
|
- | |||||
| 146 | WB1X5783 | Screw Shoulder |
|
- | |||||
| 147 | WB1X578 | Speednut Cap |
|
- | |||||
| 148 | WS01A01408 | Screw (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WB30X5071 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 154 | WB32X5059 | Pan 6" Porc Frosted |
|
- | |||||
| 155 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X5072 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5060 | Pan 8" Porc Frosted |
|
- | |||||
| 160 | WB17X5094 | Receptacle Asm |
|
- | |||||
| 164 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 180 | WB2X7618 | Bracket Mtg Receptacle |
|
- | |||||
| 250 | NOT AVAIL | Body |
|
- | |||||
| 251 | WB56X6050 | Frame Front |
|
- | |||||
| 252 | WB49X5399 | Filler Panel Wh |
|
- | |||||
| 252 | WB49X5400 | Filler Panel Ha |
|
- | |||||
| 252 | WB49X5401 | Filler Panel Ad |
|
- | |||||
| 253 | WB49X5384 | Box Cooktop |
|
- | |||||
| 254 | WB38X50 | Body Vent |
|
- | |||||
| 256 | WB2X7701 | Leveling Leg |
|
- | |||||
| 258 | WB39X51 | Drawer Guide Rh & Lh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB10X5148 | Hinge Lever Asm Rh & Lh |
|
- | |||||
| 261 | WB10X149 | Hinge Support Lh |
|
- | |||||
| 261 | WB10X148 | Hinge Support Rh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X5100 | Spring Door |
|
- | |||||
| 268 | WB29X5013 | Smoke Elim & Tube Asm |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB2X3137 | Guard Terminal |
|
- | |||||
| 276 | WB49X336 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 292 | WB1X386 | Clamp Harness |
|
- | |||||
| 302 | WB2X7694 | Bail |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 342 | WB2X7700 | Retainer Leg |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB55X5295 | Liner Door |
|
- | |||||
| 350 | WB2X3140 | Insulation Door |
|
- | |||||
| 351 | WB2X6270 | Spacer Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X1798 | Reflector Foil |
|
- | |||||
| 355 | WB55X5341 | Inner Panel |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB2X3140 | Insulation |
|
- | |||||
| 358 | WB56X6098 | D00r Panel Wh |
|
- | |||||
| 358 | WB56X6097 | D00r Panel Ad |
|
- | |||||
| 359 | WB7X7032 | Trim Door Top |
|
- | |||||
| 360 | WB55X5283 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0423 | Screw Mtg Handle |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X6204 | Spacer Panel |
|
- | |||||
| 364 | WB2X3241 | Handle Spacer |
|
- | |||||
| 365 | WB15X5162 | Handle |
|
- | |||||
| 395 | WB2X3053 | Clip Mtg Door Trims |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 451 | WB58X5011 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 454 | WB2X584 | Bumper |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 457 | WB56X6090 | Drawer Panel Wh |
|
- | |||||
| 457 | WB56X6091 | Drawer Panel Ha |
|
- | |||||
| 457 | WB56X6092 | Drawer Panel Ad |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 459 | WB1X5782 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tube Oven |
|
- | |||||
| 520 | WB2X6496 | Insulation |
|
- | |||||
| 520 | WB53X5112 | Oven Liner |
|
- | |||||
| 521 | WB9X88 | Hook Pkg |
|
- | |||||
| 522 | WB2X3393 | Trim Clip |
|
- | |||||
| 523 | WB2X7693 | Housing Receptacle |
|
- | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 528 | WB48X5044 | Rack Oven |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5036 | Latch |
|
- | |||||
| 701 | WB15X5180 | Handle Latch |
|
- | |||||
| 702 | WB3X5681 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X7707 | Channel Latch |
|
- | |||||
| 705 | WB2X7710 | Channel Locking |
|
- | |||||
| 706 | WB2X7708 | Pawl Locking |
|
- | |||||
| 707 | WB2X7709 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 731 | WB2X7711 | Bracket Switch |
|
- | |||||
| 732 | WB24X5235 | Latch Release Switch |
|
- | |||||
| 740 | WB2X7226 | Clip Wire |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 32767 | 31-0825 | Install Instructions |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 31-0638 | Install Instructions |
|
- | |||||
| 32767 | 49-8041 | Manual Users |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
