SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock

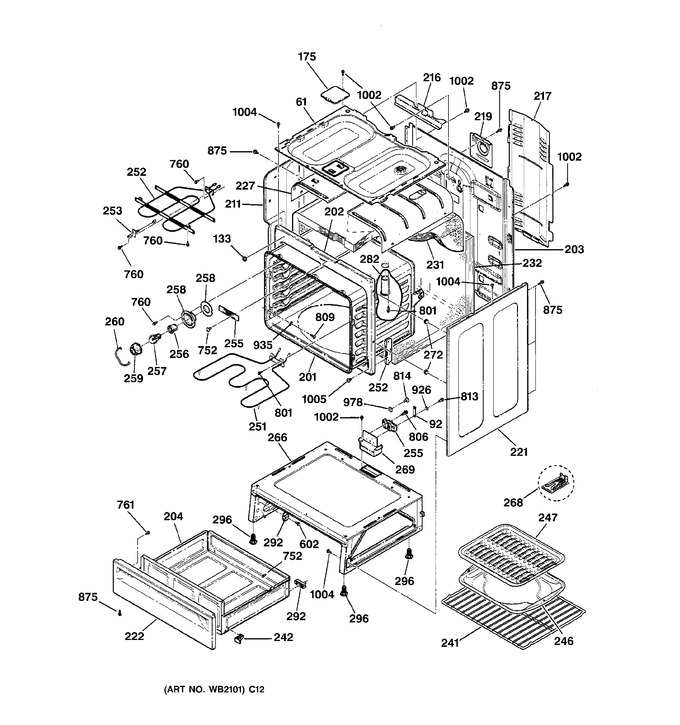

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
61	WB64T10016		Burner Box		Appelez-nous	-
92	WB02T10067		Strap Ground		Appelez-nous	-
133	WB01T10021		Maintop Bumper		Appelez-nous	-
133	WG02F03972		Door Bumper   (Replaces: WB01T10022)				$ 6.35
175	WB02T10021		Latch Cover		Appelez-nous	-
201	WB63T10046		Wrapper Ovn Cav Asm		Appelez-nous	-
202	WB63T10045		Front Frame		Appelez-nous	-
203	WB63T10047		Main Back		Appelez-nous	-
204	WB55T10046		Storage Drawer Lining		Appelez-nous	-
211	WB02T10028		Side Insulation Retainer		Appelez-nous	-
216	WB02T10032		Wire Guard		Appelez-nous	-
217	WB34T10012		Back Cover		Appelez-nous	-
219	WB34T10011		Recepticle Cover		Appelez-nous	-
221	WB63T10048		Body Side/white		Appelez-nous	-
222	WB56T10024		Front Panel Stor/white		Appelez-nous	-
227	WB02T10029		Top Insulation Retainer		Appelez-nous	-
231	WB35T10012		Ovn Top/side Insulation		Appelez-nous	-
232	WB35T10011		Ovn Back Insulation		Appelez-nous	-
241	WG02F04111		Oven Rack   (Replaces: WB48T10011)				$ 103.56
242	WG02F04563		Drawer Guide   (Replaces: WB48T10012)				$ 6.35
246	WB48T10006		Broil Pan (261d656p010)		Appelez-nous	-
247	WB48T10005		Bro Pan Grid		Appelez-nous	-
251	WB44T10010		Unit Asm Bake (2585w)		Appelez-nous	-
252	WB10T10005		Hinge Receiver		Appelez-nous	-
252	WG02F04465		Unit Asm Broil (3410w)   (Replaces: WB44T10009)			Immediately	$ 128.35
253	WS01F02431		Sensor Asm   (Replaces: WB23T10002)			Immediately	$ 30.20
255	WB7X7175		Latch Trim		Appelez-nous	-
255	WB17T10003		Main Terminal Block		Appelez-nous	-
256	WS01F02438		Push-in Recepticle   (Replaces: WB08T10004)			Immediately	$ 11.71
257	WX12X1510		Oven Light Bulb		Appelez-nous	-
258	WB02T10027		Oven Light Gasket		Appelez-nous	-
258	WG02F04577		Oven Light Cup   (Replaces: WB02T10037)				$ 31.76
259	WG02F04576		Ov Lamp Lens   (Replaces: WB36X389)				$ 20.65
260	WB2X7694		Light Lens Bail		Appelez-nous	-
266	WB39T10001		Base Rivet Asm		Appelez-nous	-
268	WB02T10069		Bracket Asm Anti Tip		Appelez-nous	-
269	WB17T10002		Terminal Box		Appelez-nous	-
272	WG02L01603		Side Support Panel   (Replaces: WB02T10034)				$ 4.20
282	WB38T10006		Vent Tube Asm		Appelez-nous	-
292	WB02T10031		Rear Drawer Support		Appelez-nous	-
292	WG02L01594		Frt Drawer Support   (Replaces: WB48T10013)				$ 6.35
296	WG02A00475		Leg Leveler   (Replaces: WB02X10521)			Immediately	$ 6.35
602	WH2X941		Scr 8-15 A Hxw 7/8 S		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5062		Screw-brt. Ni.		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
806	WH2X1186		Scr 8-18 Ab Ihw 5/8 S		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 15.88
813	WS01A00445		Screw   (Replaces: WB1X1261)				$ 13.90
814	WB1X5967		Screw Asm.- Terminal Blk		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
875	WB01T10046		Scr 8-18 Ab Hw 9/16 Blk		Appelez-nous	-
926	WB1X1260		Ground Washer		Appelez-nous	-
935	WB1K5174		Washer		Appelez-nous	-
978	WB1X5968		Nut 10-32 Nickle Plate		Appelez-nous	-
1002	WB01T10017		Scr 8-18 Ab Ihw 3/8 S Ns		Appelez-nous	-
1004	WB01T10019		Scr 8-18 Ab Trt 7/16 Sn		Appelez-nous	-
1004	WB01T10037		Scr 8-18 Ba Tw 7/16 S		Appelez-nous	-
1005	WS01A01018		Scr 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.97

    View Diagram in Separate Window       Print Part List
