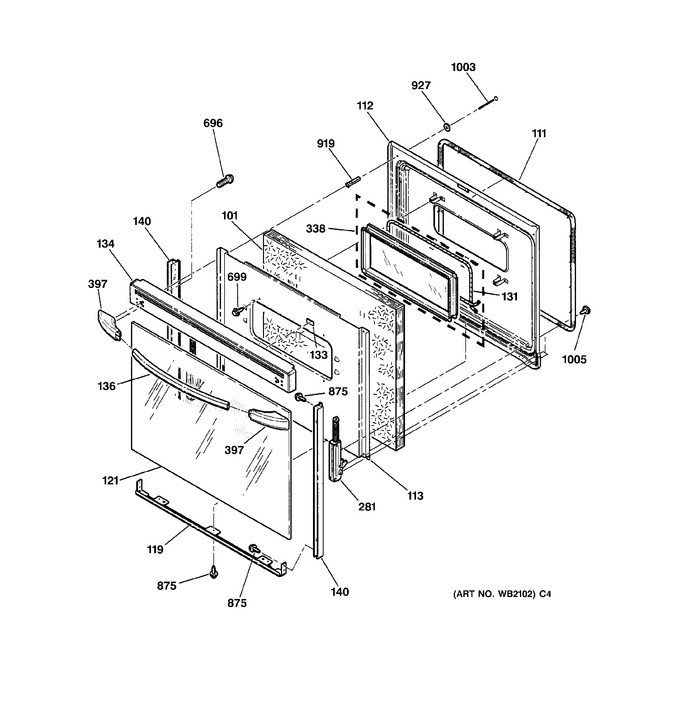

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35T10034		Insulation Door		Appelez-nous	-
111	WB04T10001		Ovn Gasket		Appelez-nous	-
112	WB55T10048		Door Liner Asm		Appelez-nous	-
113	WB56T10018		Insln Retainer		Appelez-nous	-
119	WB07T10095		Bottom Door Trim		Appelez-nous	-
121	WB56T10035		Glass Door Sm Wn Bl Ge		Appelez-nous	-
131	WB04T10003		Seal Window Pack		Appelez-nous	-
133	WG02F03972		Door Bumper   (Replaces: WB01T10022)				$ 6.35
133	WB01T10021		Maintop Bumper		Appelez-nous	-
134	WB50T10020		Door Trim Kit		Appelez-nous	-
136	WB15X10003		Door Handle				$ 111.86
140	WB56T10063		Door Frame		Appelez-nous	-
281	WB10T10006		Door Hinge		Appelez-nous	-
338	WB55T10068		Window Pack Asm		Appelez-nous	-
397	WB07X10034		Handle End Cap (blk)		Appelez-nous	-
696	WB01T10013		Scr 8-19 Hi/lo Ihw 5/8 S		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
875	WB01T10046		Scr 8-18 Ab Hw 9/16 Blk		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
919	WB02T10035		Spacer		Appelez-nous	-
927	WB1X119		Contoured Washer		Appelez-nous	-
1003	WG02A00767		Scr 10-16 Pl Pnt 2.5 S   (Replaces: WB01T10018)				$ 4.20
1005	WS01A01018		Scr 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.97
