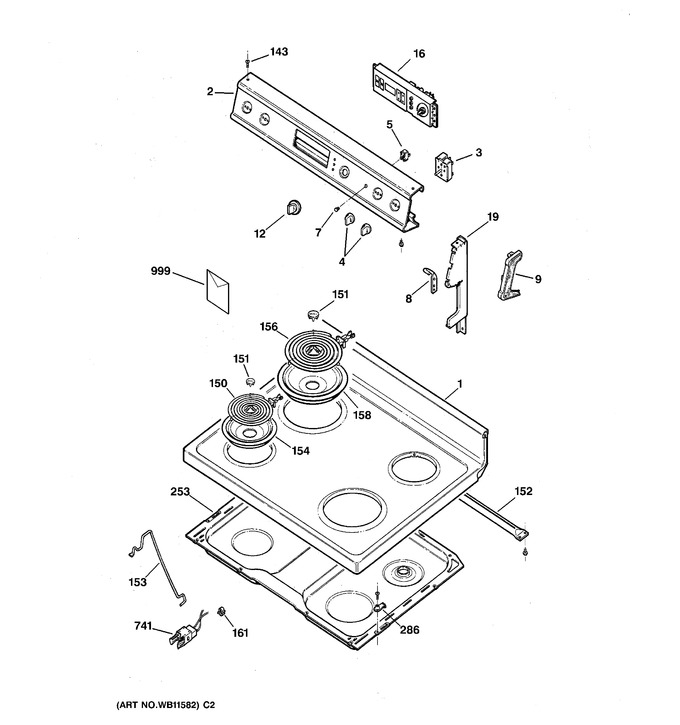

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5428		Cooktop Ad		Appelez-nous	-
1	WB62X5427		Cooktop Wh		Appelez-nous	-
2	WB36X5706		Trim & Bracket Asm		Appelez-nous	-
3	WB24X5333		Switch Infinite Control		Appelez-nous	-
3	WB24X5334		Switch Infinite Control		Appelez-nous	-
4	WB3X5775		Knob		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Jewel		Appelez-nous	-
8	WB2X8127		Pin Hinge L		Appelez-nous	-
8	WB2X8126		Pin Hinge R		Appelez-nous	-
9	WB7X7131		End Cap Left		Appelez-nous	-
9	WB7X7130		End Cap Right		Appelez-nous	-
12	WB3X5806		Knob		Appelez-nous	-
16	WB2X8268		Nut		Appelez-nous	-
16	WB9X5121		Spring Detent		Appelez-nous	-
16	WB2X8297		Cam Dual		Appelez-nous	-
16	WB27X5542		Control T08		Appelez-nous	-
19	WB7X7268		Plate End Wh Rh		Appelez-nous	-
19	WB7X7269		Plate End Wh Lh		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
150	WB30X5129		6" P.i. S/u Alum		Appelez-nous	-
151	WG02F04803		Trim Center   (Replaces: WB31X5021)				$ 4.78
152	WB2X8128		Bar Torsion		Appelez-nous	-
153	WB2X8114		Rod Support		Appelez-nous	-
154	WB32X5083		Bowl Burner 6"		Appelez-nous	-
156	WB30X5130		8" P.i. S/u Alum		Appelez-nous	-
158	WG02L01430		Bowl Burner 8"   (Replaces: WB32X5085)			Immediately	$ 27.03
161	WS01A01095		Clip Wire   (Replaces: WB2X8115)			Immediately	$ 3.97
248	WB21X5310		Sensor Asm Oven		Appelez-nous	-
253	WB49X5499		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
532	WB38X5063		Tube Vent		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 52.48
999	340732		Tape		Appelez-nous	-
999	31-1428		Pm Manual Mini		Appelez-nous	-
999	31-0824		Install Instr (anti-tip)		Appelez-nous	-
999	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
